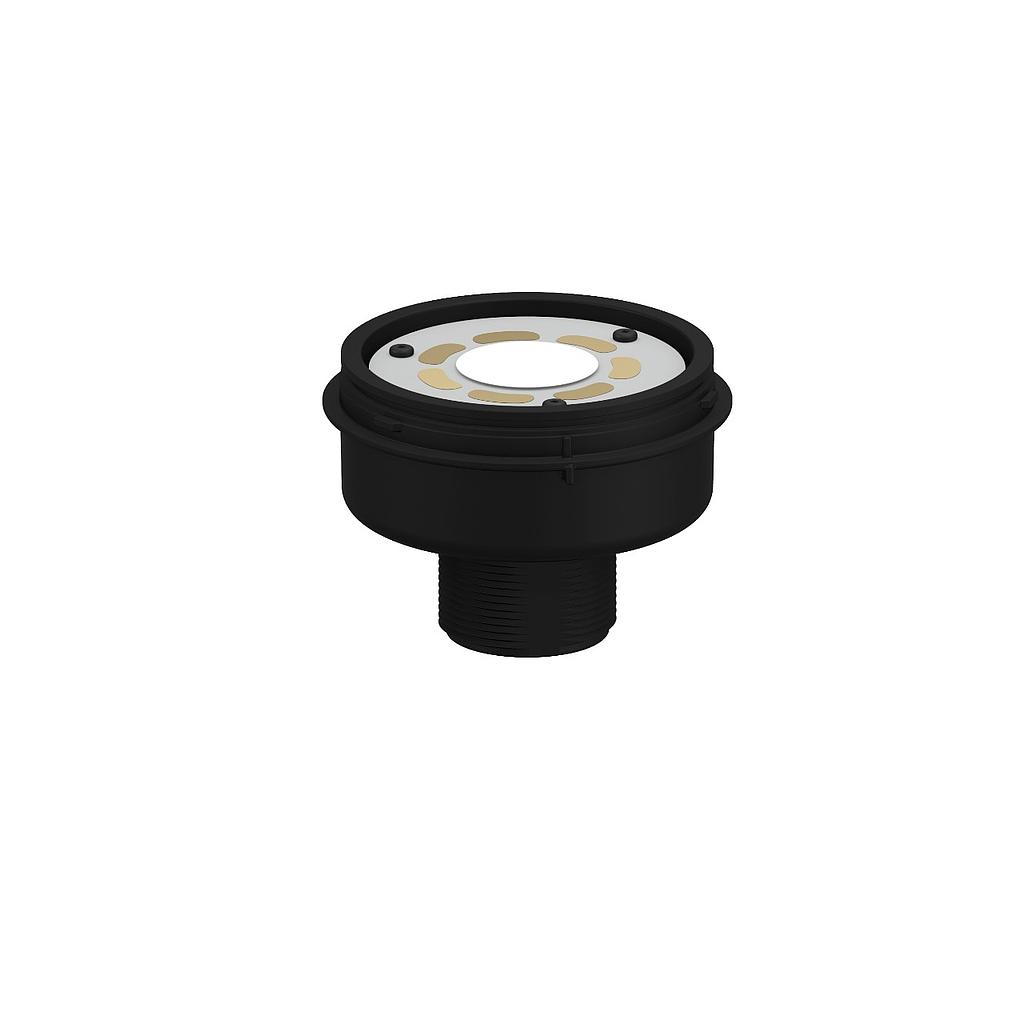

B-TL70-T Tower Light Base Module
Manufacturer: Banner Engineering Corp
Mfg Product Code: 92225
Weight: 0.3 lb(s)
TL70 Base Module; Supports 1-6 Modules. Voltage: 12-30 V dc; Environmental Rating: IP65. Terminal Block. Black Housing
Features:
- TL70 Base Module; Supports 1-6 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; Terminal Block; Black Housing
B-TL70-T Tower Light Base Module
TL70 Base Module; Supports 1-6 Modules. Voltage: 12-30 V dc; Environmental Rating: IP65. Terminal Block. Black Housing
Brand_Name:Banner
Power:DC
Max Current Color:420 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Case Material:Polycarbonate
Power Source:VDC
Measurement Minimum:0
Input Voltage:12-30 VDC
Ingress Protection:IP65
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:70.0 x 47.5 mm
Feature: Wireless:No
Feature: Indication:Yes
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:No
Color Technology:Standard LED
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Product Size (mm):70 mm
Number of Input Pins/Conductors:8
Input Type:Bimodal (PNP/NPN)
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):180 ms
Feature: Chemical Resistant:No
Feature: Non-Illuminated:Yes
Country of Origin:CN
Cord/Cable Length:2 m
Specifications
| Brand_Name | Banner |
| Power | DC |
| Max Current Color | 420 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Case Material | Polycarbonate |
| Power Source | VDC |
| Measurement Minimum | 0 |
| Input Voltage | 12-30 VDC |
| Ingress Protection | IP65 |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 70.0 x 47.5 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | No |
| Color Technology | Standard LED |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Product Size (mm) | 70 mm |
| Number of Input Pins/Conductors | 8 |
| Input Type | Bimodal (PNP/NPN) |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 180 ms |
| Feature: Chemical Resistant | No |
| Feature: Non-Illuminated | Yes |
| Country of Origin | CN |
| Cord/Cable Length | 2 m |
