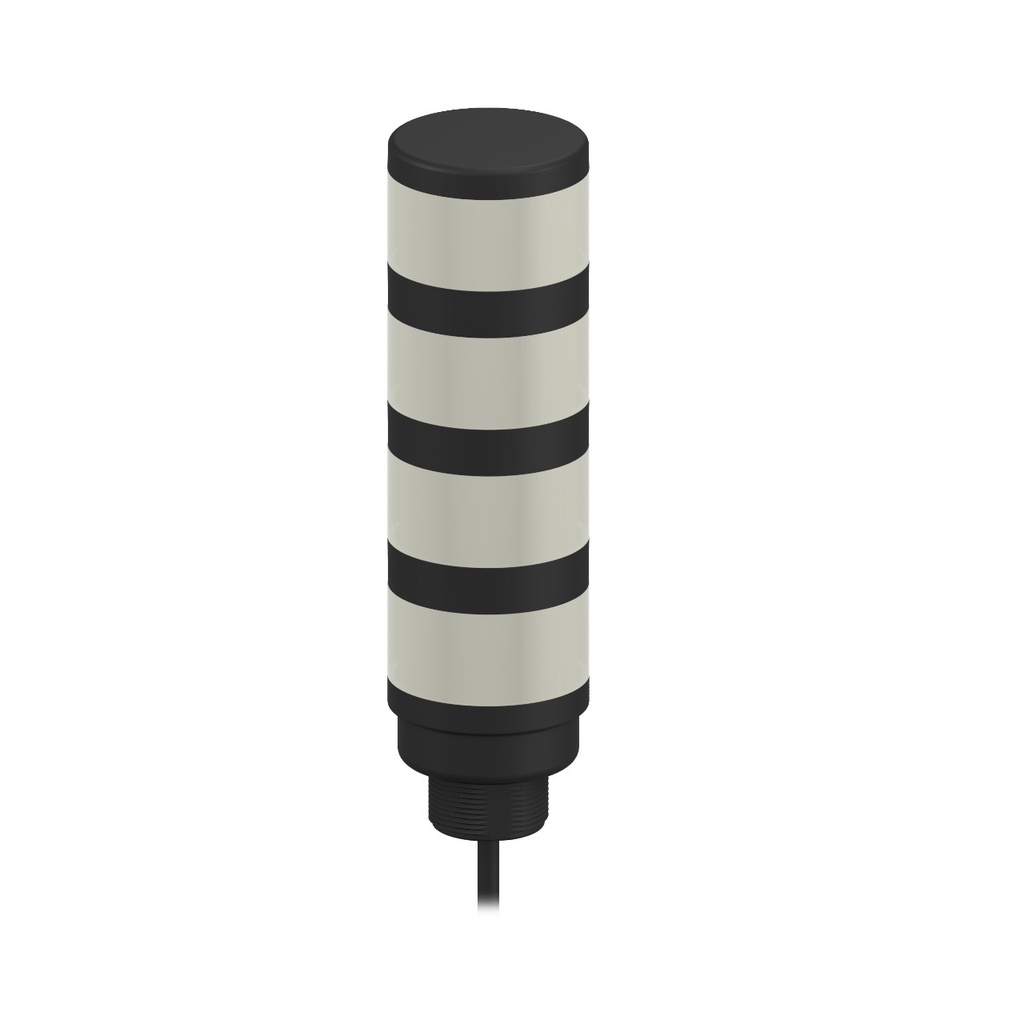

Kit: Includes Qty. 1 TL50BVGWQP-92103 (TL50BVGWQP-92111)
Kit: Includes Qty. 1 TL50BVGWQP-92103
Power:AC or DC
Feature: Display:No
Measurement Maximum:0
Max Current Color:45 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Measurement Minimum:0
Ingress Protection:IP67
Housing Style:Base Mount - Tower
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:ABS
Feature: Indication:Yes
Color Option 3:Green
Supply Voltage:18-30 VDC/24 VAC
Color Option 2:Violet
Feature: Quick Disconnect:Yes
Lumens Color 1:4.5
Animation Option 3:Solid On
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Blue
Animation Option 2:Solid On
Color 1 - Wavelength/Color Temp/Coordinates:470 nm
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Simultaneous Colors On
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:4
Color 3 - Wavelength/Color Temp/Coordinates:528 nm
Lumens Color 2:2.5
Lumens Color 3:23
Color 2 - Wavelength/Color Temp/Coordinates:0.20; 0.08
Number of Input Pins/Conductors:4
Input Type:Bimodal (PNP/NPN)
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):10 ms
Storage Temp:-40 to 70 °C
Color Option 4:White
Color 4 - Wavelength/Color Temp/Coordinates:6000K
Lumens Color 4:21
Number of Tower Light Segments:4
Animation Option 4:Solid On
Connection Type:Pigtail QD, Pigtail QD, Pigtail QD
Country of Origin:US
NEMA / UL:NEMA/UL 13
Cord/Cable Length:2 m
Specifications
| Power | AC or DC |
| Feature: Display | No |
| Measurement Maximum | 0 |
| Max Current Color | 45 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Housing Style | Base Mount - Tower |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | ABS |
| Feature: Indication | Yes |
| Color Option 3 | Green |
| Supply Voltage | 18-30 VDC/24 VAC |
| Color Option 2 | Violet |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 4.5 |
| Animation Option 3 | Solid On |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Blue |
| Animation Option 2 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 470 nm |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 4 |
| Color 3 - Wavelength/Color Temp/Coordinates | 528 nm |
| Lumens Color 2 | 2.5 |
| Lumens Color 3 | 23 |
| Color 2 - Wavelength/Color Temp/Coordinates | 0.20; 0.08 |
| Number of Input Pins/Conductors | 4 |
| Input Type | Bimodal (PNP/NPN) |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 10 ms |
| Storage Temp | -40 to 70 °C |
| Color Option 4 | White |
| Color 4 - Wavelength/Color Temp/Coordinates | 6000K |
| Lumens Color 4 | 21 |
| Number of Tower Light Segments | 4 |
| Animation Option 4 | Solid On |
| Connection Type | Pigtail QD, Pigtail QD, Pigtail QD |
| Country of Origin | US |
| NEMA / UL | NEMA/UL 13 |
| Cord/Cable Length | 2 m |
