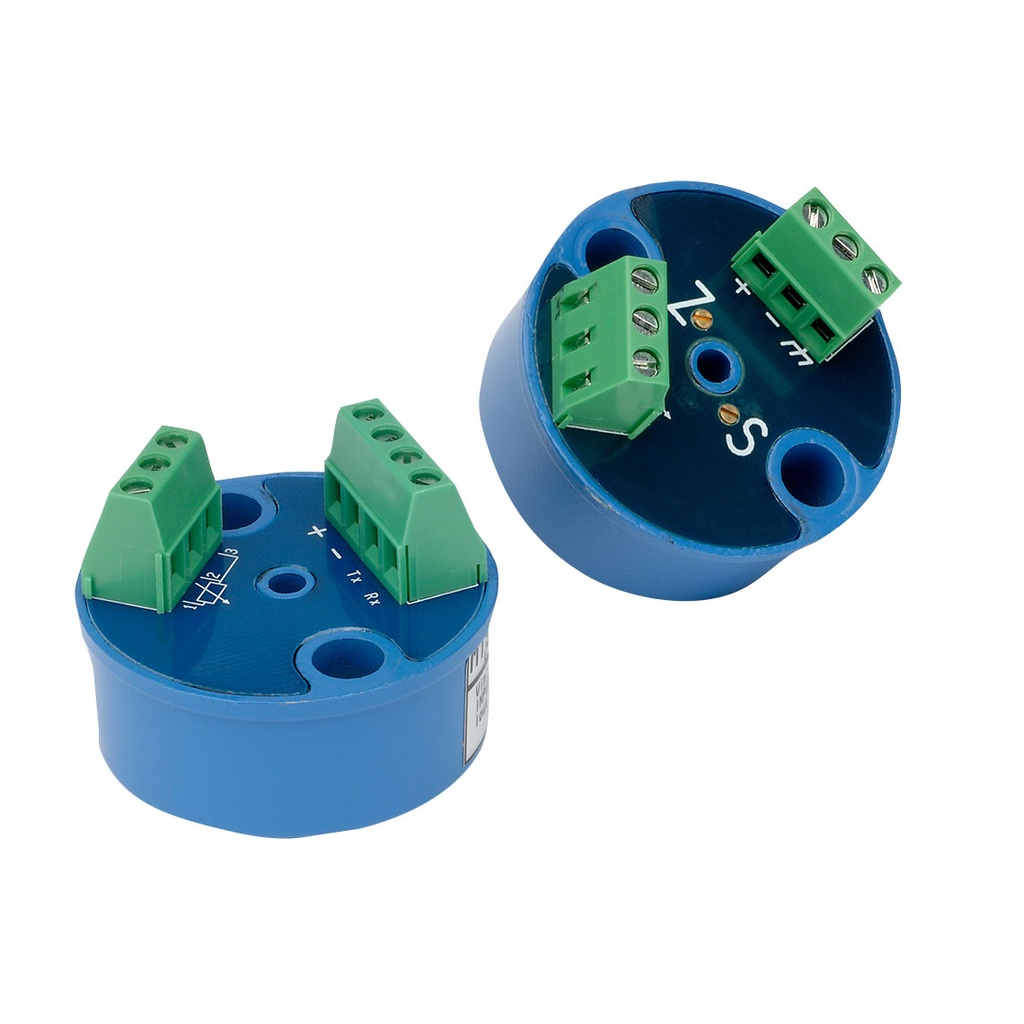

920 Series RTD Transmitter, 20-350 °F Calibrated Range, Computer Programmable
Manufacturer: Noshok Inc
Mfg Product Code: 920-NRT-2-2--20/350-F-PC
Weight: 0.5 lb(s)
On Hand: 0
0 to 5 Vdc Upscale Burnout Personal Computer (PC) Programmable RTD Transmitter
- 2-wire loop-powered 4 mA to 20 mA output
- Linearized output to temperature
- Input RTD PT100 with 3-wire compensation
- Analog design, potentiometer adjustable
Applications:
920 Series RTD Transmitter, 20-350 °F Calibrated Range, Computer Programmable
0 to 5 Vdc Upscale Burnout Personal Computer (PC) Programmable RTD Transmitter
Measurement Maximum:350.0
Min Operating Temperature:-40 °F
Product Unit of Measure:°F
Max Operating Temperature:176 °F
Accuracy:0.1% full scale
Case Material:Die-Cast Zinc, Enamel Painted
Power Supply:12-32 VDC
Measurement Minimum:20
Input Communication Protocol:PT-100, 3-wire
Output Communication Protocol:0-5 VDC, 3-wire
Specifications
| Measurement Maximum | 350.0 |
| Min Operating Temperature | -40 °F |
| Product Unit of Measure | °F |
| Max Operating Temperature | 176 °F |
| Accuracy | 0.1% full scale |
| Case Material | Die-Cast Zinc, Enamel Painted |
| Power Supply | 12-32 VDC |
| Measurement Minimum | 20 |
| Input Communication Protocol | PT-100, 3-wire |
| Output Communication Protocol | 0-5 VDC, 3-wire |
