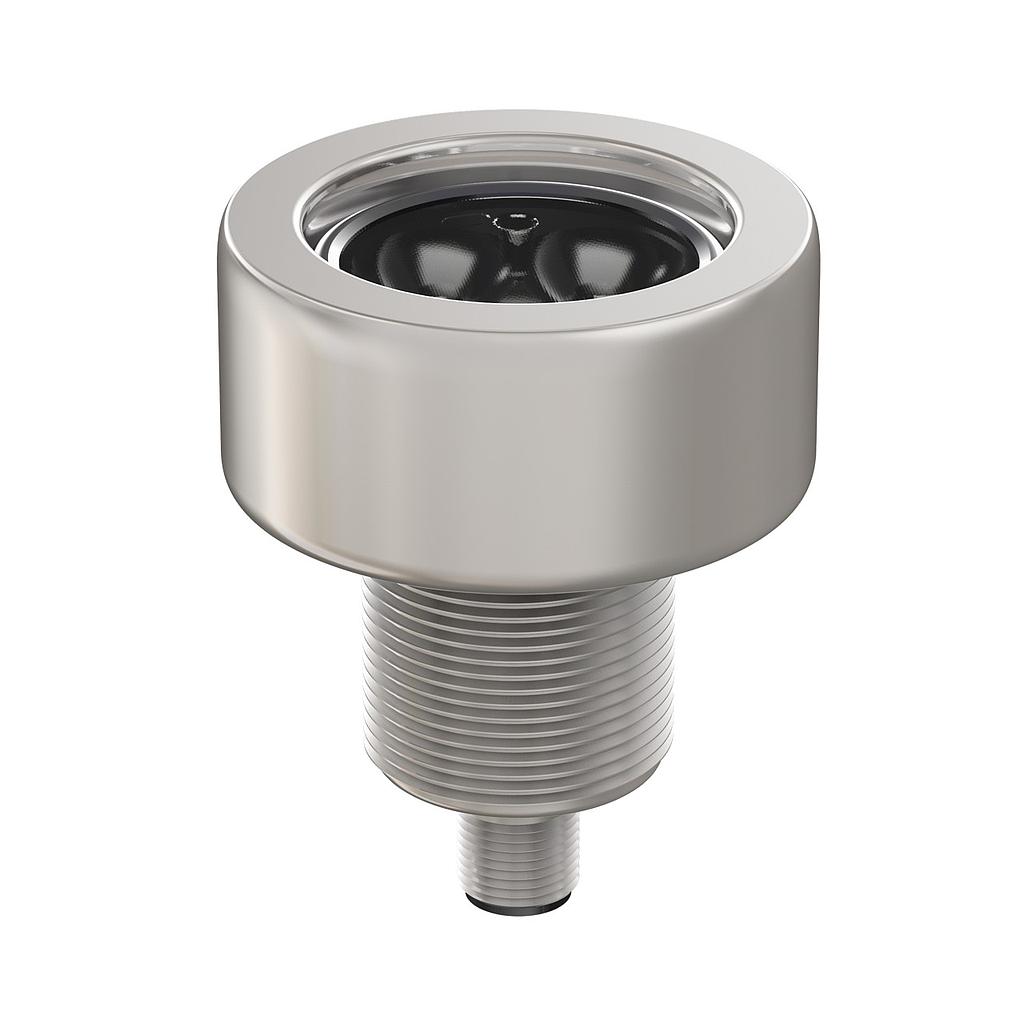

Work Light 50 mm 316SS Spot Light (WL50SWSSL11PWMQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 90459
Weight: 1.05 lb(s)
Work Light 50 mm 316SS Spot Light
Features:
- Work Light 50 mm 316SS Spot Light
- PWM Dimming
- Voltage: 12-30 V dc
- Environmental Rating: IP69K
- Color: White
- 11 Deg Lens
- Plastic Window
- Euro 5-pin Quick-Disconnect
Work Light 50 mm 316SS Spot Light (WL50SWSSL11PWMQ)
Work Light 50 mm 316SS Spot Light
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:50 °C
Power Source:VDC
Measurement Minimum:0
Ingress Protection:IP67/69
Housing Style:Base Mount - Flat Window
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:SS
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:56.0 x 71.1 mm
Feature: Wireless:No
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Lumens Color 1:285
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Cool White
Color 1 - Wavelength/Color Temp/Coordinates:6500K (Cool)
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:1
Product Size (mm):50 mm
Number of Input Pins/Conductors:5
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Feature: Chemical Resistant:Yes, Yes
Storage Temp:-40 to 70 °C
Dimming Option:PWM
Lens Focusing Angle/Field of View:11°
Feature: Illumination:Yes
Connection Type:Integral QD
Country of Origin:US
Lens Focusing Angle (°)/Field of View:11°
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67/69 |
| Housing Style | Base Mount - Flat Window |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | SS |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 56.0 x 71.1 mm |
| Feature: Wireless | No |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 285 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Cool White |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 50 mm |
| Number of Input Pins/Conductors | 5 |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Feature: Chemical Resistant | Yes, Yes |
| Storage Temp | -40 to 70 °C |
| Dimming Option | PWM |
| Lens Focusing Angle/Field of View | 11° |
| Feature: Illumination | Yes |
| Connection Type | Integral QD |
| Country of Origin | US |
| Lens Focusing Angle (°)/Field of View | 11° |
