Barksdale 9000 Shear-Seal Manual Directional Control Valve, 3/8" NPT Pressure Port, Manual Operation, 2-Position 90° Rotation (No Center Position)

Manufacturer: Barksdale Inc Dba Dynalco Controls Corp

Mfg Product Code: 9002-MB

Weight: 2.0 lb(s)

Air Pressure (psi) 150 psi
Air Pressure (bar) 10.3 bar
Hydraulic Pressure (psi) 150 psi
Hydraulic Pressure (bar) 10.3 bar
Number of Positions 2
Port Size 3/8 " NPT
Min Flow Passage Diameter 0.188 "
Flow Pattern Closed Center
Cv Factor 0.52
Back Pressure (psi) 250 psi
Back Pressure (bar) 17 bar
Proof Pressure 1.5x Working Pressure except at Return Port
Burst Pressure 2.5x Working Pressure, 300 psi max at Return Port
Working Media Air (Pneumatic), Hydraulic Oil
Body Material Anodized Aluminum
O-Ring Material Buna N
Pressure Seal Material Brass
Rotor Material Hard Anodized Aluminum

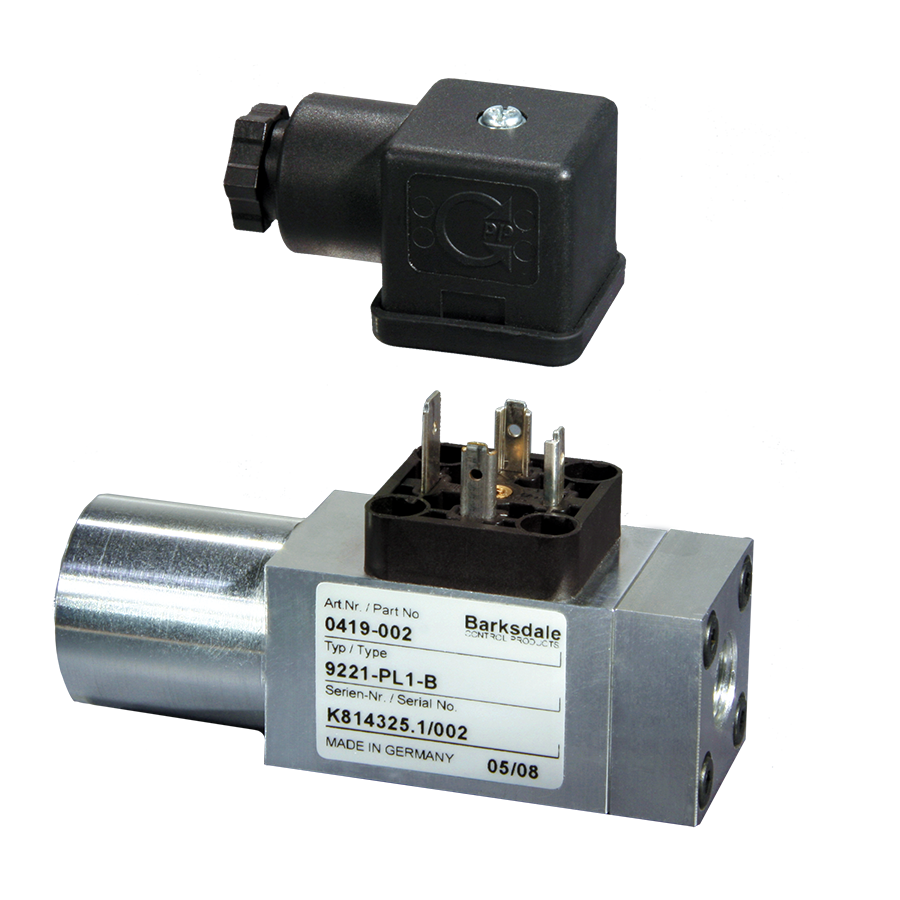

The Series 9000 Pressure Switch delivers high performance and reliability in a compact and space-saving design.

• Compact Design:
  • Significantly smaller than the Series 8000, measuring only 1.2 x 1.2 x 3.8 inches.
• Enhanced Performance:
  • Long pressure spring for precise and reliable switch point adjustments.
  • High accuracy: +/- 2% of full scale.
• Rugged Construction:
  • Standard aluminum body construction for durability.
  • Tamper-resistant adjustment set screw for added security.
  • NEMA 4 / IP65 rated for protection against dust and water.
• Versatility:
  • Adjustable pressure range from 90 to 5800 psi with a proof pressure up to 8700 psi.
  • Available with standard DIN 43650 electrical connector.
  • Options include factory preset settings and various process connections.

Applications:

• OEM applications
• Hydraulic power units
• Test equipment
• Heavy industry
• Mobile and stationary hydraulics
• Press Equipment
