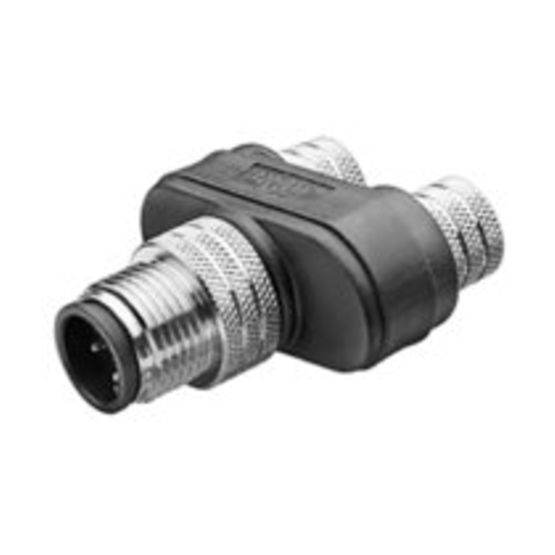

AVENTICS CON-AP Series Y-Plug Connector, 48 VDC, Polyurethane, 4-Pin M12x1 Plug to 3-Pin M8x1 Socket

Manufacturer: Asco LP

Mfg Product Code: 8941002382

Weight: 0.05 lb(s)

Y-Plug Connector, 48 VDC, Polyurethane, 4-Pin M12x1 Plug to 3-Pin M8x1 Socket

The AVENTICS Series CON-CB offers contact bridges which offers additional electrical connection types for Series CD01-PA, 579/589 as well as for other Form C coils. With the contact bridge it is possible to change Form C connection to SNAP D8 or M12.

Features

• Type: Adapters & contact bridges
• Shielding: unshielded
• Min. ambient temperature: -25 °C
• Max. ambient temperature: 90 °C
• Max. current: 4 A
• Protection class: IP67
• Electrical connection 1: Plug
• Electrical connection 1: M12x1
• Number of poles: 4-pin
• Coding: A-coded
• Cable exit: straight
• Cable exit angle: 180°
• Electrical connection: Socket
• Electrical connection 2: M8x1
• Number of poles: 3-pin
• Coding: A-coded
• Cable exit: straight
• Cable exit angle: 180°
• Operational↩voltage: 48 V
• Operational↩voltage: AC/DC
• Weight: 0.02 kg
• Housing material: Polyurethane
• Seal material: Fluorocaoutchouc:
