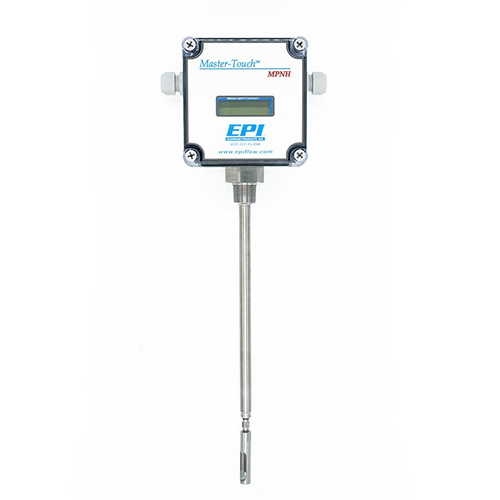

EPI - 8800 Series Flowmeter
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8860MPNH-INT-SSS-133- DC24-MW050-6006NA-1RC-AIR-CSA/CUS-MB
Weight: 0.01 lb(s)
8860MPNH - Ordinary Locations Insertion Style Flow Meter - 3/4" OD Probe
INT - Integral Electronics - Standard analog signal (4-20mA flow) and one digital output (RS485 Modbus RTU). OPTIONAL DIGITAL OUTPUT: HART, BACnet, Profibus
SSS - 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded by epoxy buffer.
133 - 2-line backlit Liquid Crystal transflective Display - excellent low light and high light readability; 4-button programmable keypad;
DC24 - 24 VDC
MW050 - Gas Temperature Range: Ambient to 50°C/122°F
606NA - 3/4" OD x 6" Probe
1RC - 1 Gas Range
AIR - Air calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST.
Enhanced accuracy calibration is always optional.
CSA/CUS - CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in Ordinary Locations
MB - RS485 Modbus RTU - Read & Write
Includes TPM1212S - 3/4" tube x 3/4" male pipe thread, bored thru fitting with stainless steel ferrule.
