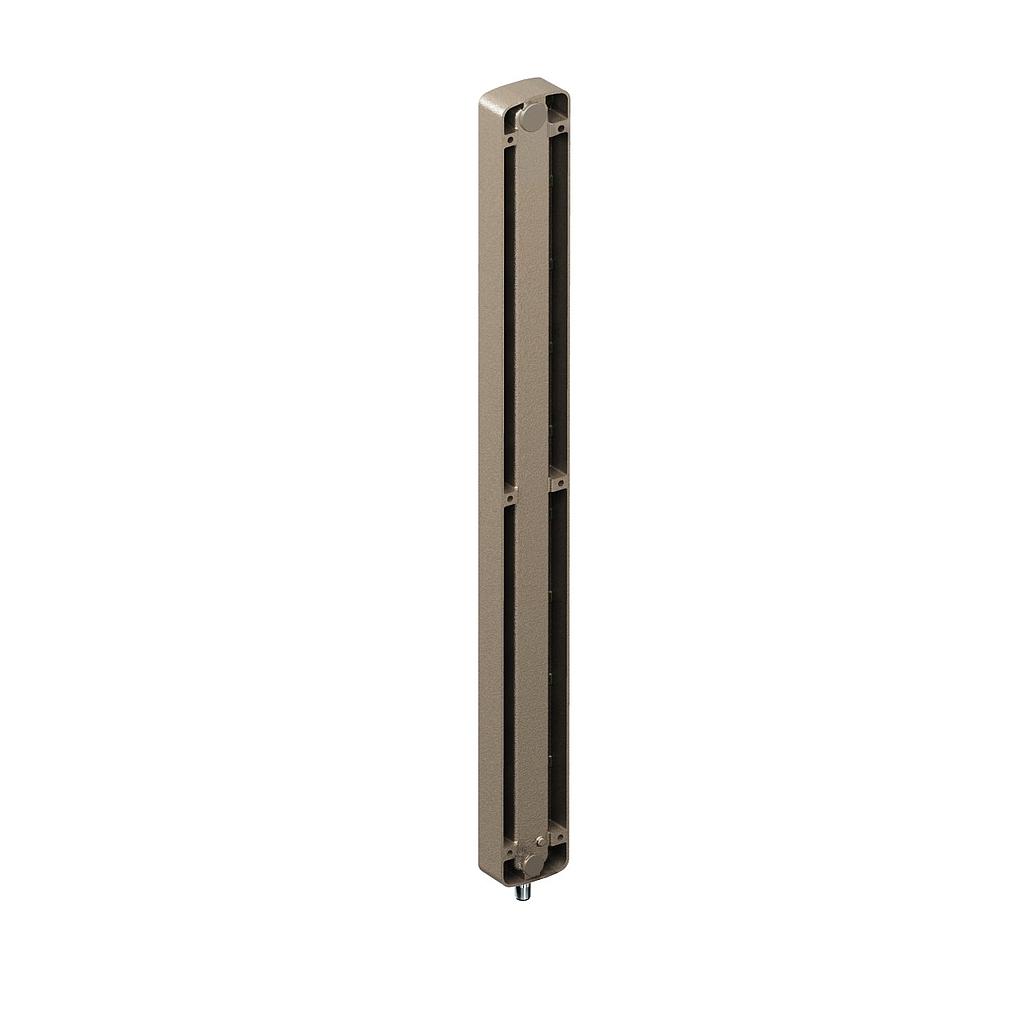

WLC60 Work Light (WLC60XW640AQ-88481)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 88481
Weight: 0.4 lb(s)
WLC60 Work Light
Features:
- WLC60 Work Light
- Length: 640 mm
- Nickel Plated Aluminum
- Voltage: 12-30 V dc
- Environmental Rating: IP68g, IP69K Viton o-ring seal
- Color: White
- Window: Polycarbonate
- Euro 4-pin Quick-Disconnect
- Side exit
WLC60 Work Light (WLC60XW640AQ-88481)
WLC60 Work Light
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power Source:VDC
Measurement Minimum:0
Ingress Protection:IP67/68/68G/69
Housing Style:Linear Strip
Housing Material_:Nickel-Plated Aluminum
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:659.4 x 60.9 x 31.3 mm
Feature: Wireless:No
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Lumens Color 1:2600
Color Technology:RGB Configurable
Feature: Audible:No
Color Option 1:Cool White
Color 1 - Wavelength/Color Temp/Coordinates:6500K (Cool)
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:1
Product Size (mm):60 mm
Number of Input Pins/Conductors:4
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:No Thread
Feature: Chemical Resistant:Yes, Yes
Storage Temp:-40 to 70 °C
Dimming Option:High-Low-Off
Illuminated Length (LxWxH):517.6 mm
Feature: Illumination:Yes
Connection Type:Integral QD
Country of Origin:US
Cord/Cable Length:2 m
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power Source | VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67/68/68G/69 |
| Housing Style | Linear Strip |
| Housing Material_ | Nickel-Plated Aluminum |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 659.4 x 60.9 x 31.3 mm |
| Feature: Wireless | No |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 2600 |
| Color Technology | RGB Configurable |
| Feature: Audible | No |
| Color Option 1 | Cool White |
| Color 1 - Wavelength/Color Temp/Coordinates | 6500K (Cool) |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 60 mm |
| Number of Input Pins/Conductors | 4 |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | No Thread |
| Feature: Chemical Resistant | Yes, Yes |
| Storage Temp | -40 to 70 °C |
| Dimming Option | High-Low-Off |
| Illuminated Length (LxWxH) | 517.6 mm |
| Feature: Illumination | Yes |
| Connection Type | Integral QD |
| Country of Origin | US |
| Cord/Cable Length | 2 m |
