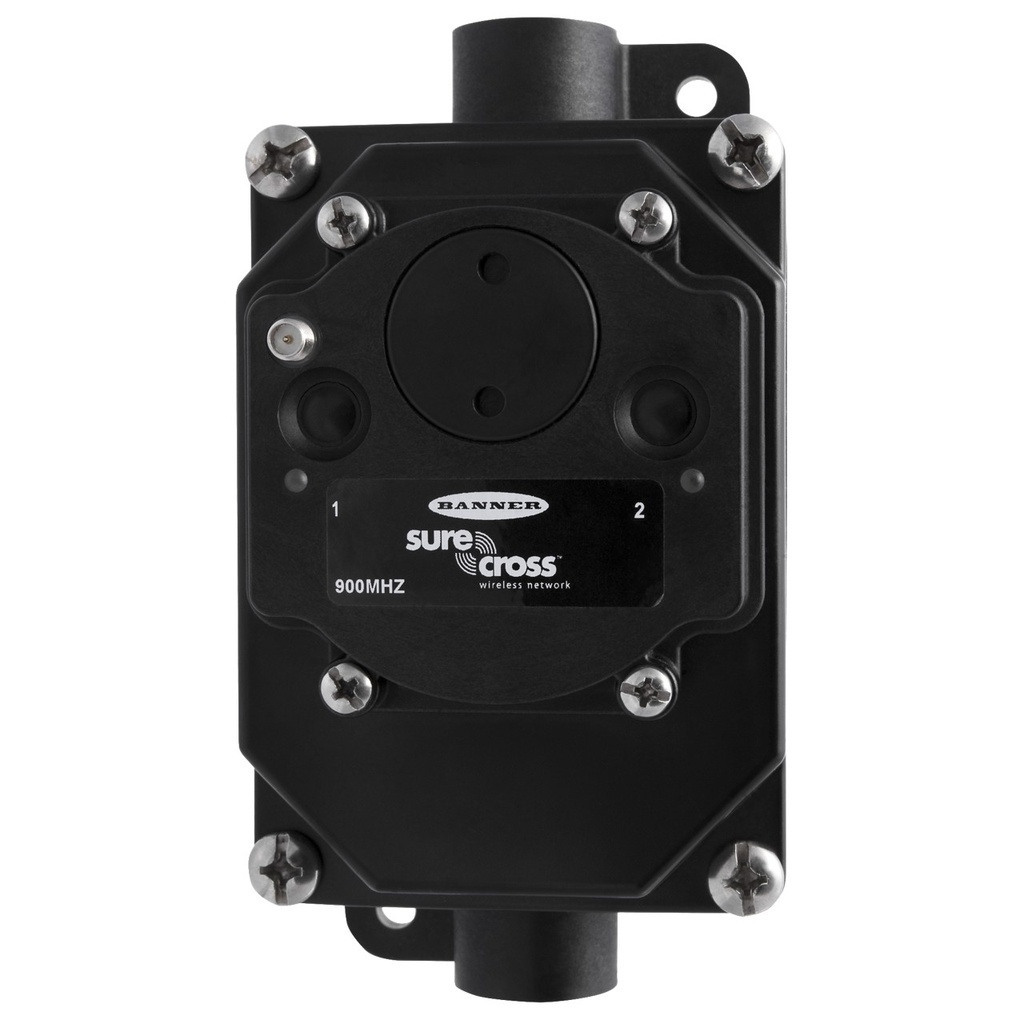

MultiHop 900 MHz 1 Watt FlexPower DataRadio (DX80DR9M-DCLATCHE)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 88445
Weight: 1.9 lb(s)
MultiHop 900 MHz 1 Watt FlexPower DataRadio
Features:
- MultiHop 900 MHz 1 Watt FlexPower DataRadio
- With DC Latch output (H-Bridge)
- 2 Discrete Input and 2 Event Counters
- black E housing
MultiHop 900 MHz 1 Watt FlexPower DataRadio (DX80DR9M-DCLATCHE)
MultiHop 900 MHz 1 Watt FlexPower DataRadio
Power:Flex Power
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:65 °C
Power Supply:10-30 VDC or 3.6-5.5 VDC low power option
Measurement Minimum:0
Ingress Protection:IP65
Housing Style:Enclosed Terminals
Device Type:Multihop Data Radio
Feature: RS-232:No
Feature: RS-485:No
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Feature: Hazardous Area:No
Feature: Modbus RTU:No
Feature: Wireless:Yes
Input/Output:Discrete
Relative Humidity:95%
Output Details:DC Latch
Feature: Point-to-Point Topology:Yes
Feature: Point-to-Multipoint Topology:Yes
Feature: Ships With Battery:Yes
Input Details:(2) Selectable Discrete; (2) Event Counters
Feature: Discrete Inputs:Yes
Wireless Radio Frequency:900 MHz
Feature: Tree Topology:Yes
Feature: Star Topology:Yes
Country of Origin:US
NEMA / UL:NEMA 4X
Specifications
| Power | Flex Power |
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 65 °C |
| Power Supply | 10-30 VDC or 3.6-5.5 VDC low power option |
| Measurement Minimum | 0 |
| Ingress Protection | IP65 |
| Housing Style | Enclosed Terminals |
| Device Type | Multihop Data Radio |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Feature: Hazardous Area | No |
| Feature: Modbus RTU | No |
| Feature: Wireless | Yes |
| Input/Output | Discrete |
| Relative Humidity | 95% |
| Output Details | DC Latch |
| Feature: Point-to-Point Topology | Yes |
| Feature: Point-to-Multipoint Topology | Yes |
| Feature: Ships With Battery | Yes |
| Input Details | (2) Selectable Discrete; (2) Event Counters |
| Feature: Discrete Inputs | Yes |
| Wireless Radio Frequency | 900 MHz |
| Feature: Tree Topology | Yes |
| Feature: Star Topology | Yes |
| Country of Origin | US |
| NEMA / UL | NEMA 4X |
