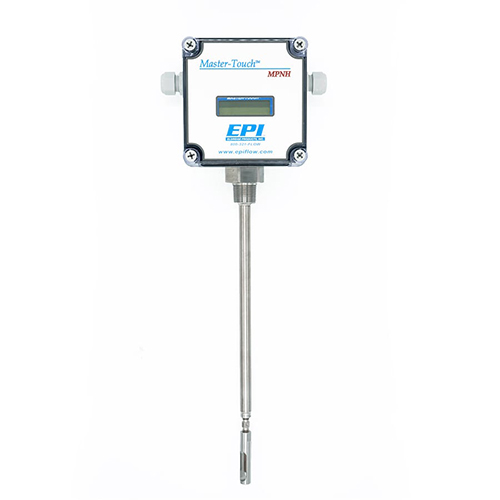

EPI - 8800 Series Flowmeter
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8840MPNH-INT-SSS-D51- DC12-MW050-0406NA -1RC-NG-CSA/CUS-MB
Weight: 0.01 lb(s)
8840MPNH - Ordinary Locations Insertion Style Flow Meter - 1/2" OD Probe
INT - Integral Electronics - Standard two analog signal (4-20mA and 0-5VDC flow & temperature) and one digital output (RS485 Modbus RTU). OPTIONAL DIGITAL OUTPUT: BACnet.
SSS - 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded by epoxy buffer.
D51 - 2-line backlit Liquid Crystal transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
DC12 - 12 VDC (Can be powered from X10 datalogger)
MW050 - Gas Temperature Range: Ambient to 50°C/122°F
0406NA - 1/2" OD x 6" Probe
1RC - 1 Gas Range
NG - NATURAL GAS calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST.
Enhanced accuracy calibration is always optional.
CSA/CUS - CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in Ordinary Locations
MB - RS485 Modbus RTU - Read & Write
Includes TPM0808S - 1/2" tube x 1/2" male pipe thread, bored thru fitting with stainless steel ferrule.
MB - RS485 Modbus RTU - Read & Write
