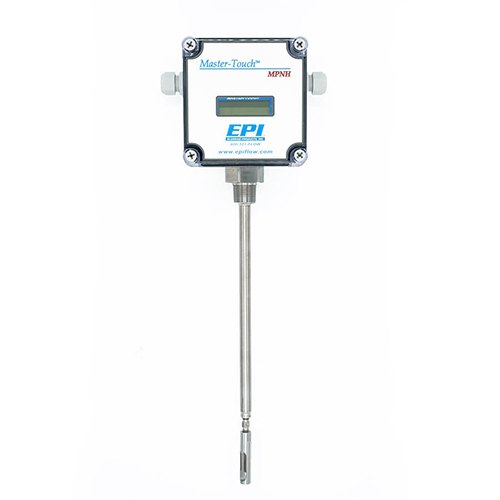

EPI - 8800 Series Flowmeter

Manufacturer: Eldridge Products - EPI

Mfg Product Code: 8840MP‐INT‐SSS‐133‐DC24‐MW050‐4006NA‐1RC‐CH4‐CT2‐MB

Weight: 10.0 lb(s)

8840MP‐ Hazardous Area Insertion Style Flow Meter - 1/2" OD Probe

INT‐ Integral Electronics - standard outputs: 4-20mA or 0-5VDC (flow with optional temperature), RS485 Modbus
RTU. 4-20mA FLOW is enabled and Modbus is disabled unless specified. Modbus is disabled.

SSS‐ 316L stainless steel sensor. OPTIONAL - sensor with attenuating rod, sensor with particle sensor shield, or
Hastelloy® C-276 sensor

133‐ 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button
programmable key-pad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling

DC24‐ 24 VDC

MW050- Gas Temperature Range: Ambient to 50°C/122°F

4006NA‐ 1/2" OD x 6" Probe

1RC‐ 1 Gas Range

CH4‐ METHANE calibration against our certified 0.05% accurate Primary Standard that is directly traceable to
NIST. Enhanced accuracy calibration is always optional

CT2‐ CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with
display); Approved for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in
hazardous area locations; Class I Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X;
Class I Zone I; AEx d IIB+H2 IP66; Ex d IIB+H2 IP66; T2; Ta = 0°C to 50°C

MB‐ RS485 Modbus RTU - Read & Write
