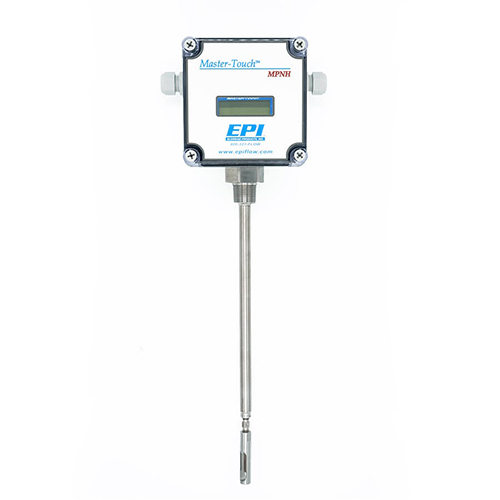

EPI - 8800 Series Flowmeter

Manufacturer: Eldridge Products - EPI

Mfg Product Code: 8840MP-INT -SSS-133- DC24-MW050-4018NA-1RC-BIOGAS-CT2-MB

Weight: 20.0 lb(s)

8840MP- Hazardous Area Insertion Style Flow Meter - 1/2" OD Probe
INT- Integral Electronics - Standard two analog signal (4-20mA and 0-5VDC flow & temperature) and one digital output (RS485
Modbus RTU). OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus.
SSS- 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded
by epoxy buffer
133- 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale,
Temperature, Raw mW Cooling
DC24- 24 VDC
MW050- Gas Temperature Range: Ambient to 50°C/122°F
4018NA- 1/2" OD x 18" Probe
1RC- 1 Gas Range
Biogas- BIOGAS calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST.
CT2- CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display); Approved
for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area locations; Class I
Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d
IIB+H2 IP66; T2; Ta = 0°C to 50°C
MB- RS485 Modbus RTU - Read & Write

BVR0812T:Ball Valve Retractor Assembly with Locking Collars and Cable Restraint; 1/2"probe bore/seal x 3/4" NPT x 10" Long. Requires minimum 18 inch long probe.
Operating Pressure 250 PSI. Recommended pressure during probe removal <125 PSI.
