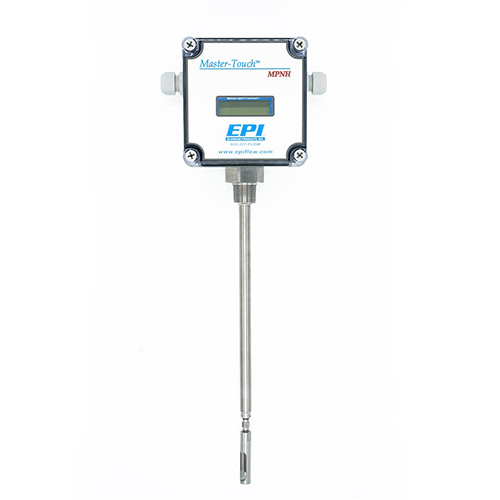

EPI - 8800 Series Flowmeter

Manufacturer: Eldridge Products - EPI

Mfg Product Code: 8840MP-INT-HAS-133-DC24-MW050-4009HNA-1RC-MIX-CT2-MB

Weight: 5.0 lb(s)

8840MP- Hazardous Area Insertion Style Flow Meter - 1/2" OD Probe
INT- Integral Electronics - Standard two analog signal (4-20mA and 0-5VDC flow & temperature) and one digital output (RS485
Modbus RTU). OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus.
HAS- Hastelloy® C-276 alloy sensor
133- 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad;
OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
DC24- 24 VDC
MW050- Gas Temperature Range: Ambient to 50°C/122°F
4006NA- 1/2" OD x 9" Probe - probe and window are made from Hastelloy C-276
1RC- 1 Gas Range
MIX- MIX GAS calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced
accuracy calibration is always optional - Mix to be to be provided
CT2- CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display); Approved
for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area locations; Class I
Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d
IIB+H2 IP66; T2; Ta = 0°C to 50°C
MB- RS485 Modbus RTU - Read & Write
