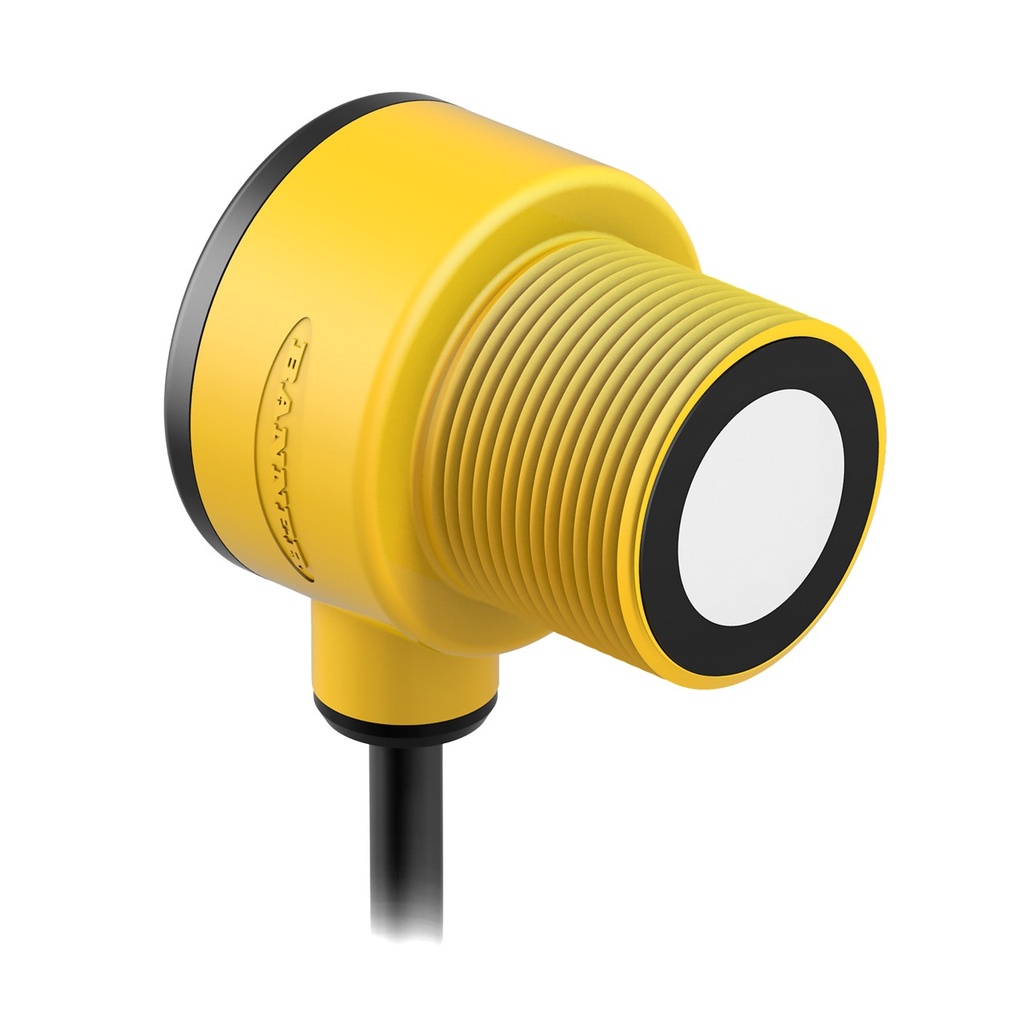

T30UX Series w/ Analog Output (T30UXIAQP-88267 W/13FT)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 88267
Weight: 0.55 lb(s)
T30UX Series w/ Analog Output
Features:
- T30UX Series w/ Analog Output
- Range: 100 mm to 1 m
- Input: 10 to 30V dc
- Analog Output: 4 to 20 mA
- 100mm to 1m Preset Window limits
- Euro 4-pin 4m (13 ft) Pigtail QD
- No Pushbuttons
T30UX Series w/ Analog Output (T30UXIAQP-88267 W/13FT)
T30UX Series w/ Analog Output
Measurement Maximum:0
Max Off-State Leakage Current (µA):<10 µA
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Power/Current Consumption (exclusive of load):90 mA
Power Supply:10-30 VDC
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Ultrasonic
Housing Style:Rectangular w/ Threaded Mount
Max Sensing Distance:1000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:PBT
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: Washdown Rated:Yes
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:100%
Feature: Chemical Resistant:No
Number of Pins:5
Adjustments:Teach Button
Feature: Timing (Hold/Delay):No
Input/Output:Analog
Barrel Diameter:30
Min Response Time:48 ms
Feature: Ultrasonic:Yes
Output Saturation Voltage PNP Outputs:< 1.0 V @ 10 mA / <1.5 V @ 100 mA
Max Discrete (Switched) Output (mA):100
Min Sensing Distance:100 mm
Min Window Size:10 mm
Max Measurement Range:500-1000 mm
Output Protection:Protected against short circuit conditions
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Connection Type:Pigtail QD
Country of Origin:CN
NEMA / UL:NEMA 6P
Cord/Cable Length:4 m
Barrel Thread:M30
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:No
Indicator Type:LED
Specifications
| Measurement Maximum | 0 |
| Max Off-State Leakage Current (µA) | <10 µA |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Power/Current Consumption (exclusive of load) | 90 mA |
| Power Supply | 10-30 VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Ultrasonic |
| Housing Style | Rectangular w/ Threaded Mount |
| Max Sensing Distance | 1000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | PBT |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: Washdown Rated | Yes |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 100% |
| Feature: Chemical Resistant | No |
| Number of Pins | 5 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Analog |
| Barrel Diameter | 30 |
| Min Response Time | 48 ms |
| Feature: Ultrasonic | Yes |
| Output Saturation Voltage PNP Outputs | < 1.0 V @ 10 mA / <1.5 V @ 100 mA |
| Max Discrete (Switched) Output (mA) | 100 |
| Min Sensing Distance | 100 mm |
| Min Window Size | 10 mm |
| Max Measurement Range | 500-1000 mm |
| Output Protection | Protected against short circuit conditions |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Connection Type | Pigtail QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6P |
| Cord/Cable Length | 4 m |
| Barrel Thread | M30 |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | No |
| Indicator Type | LED |
