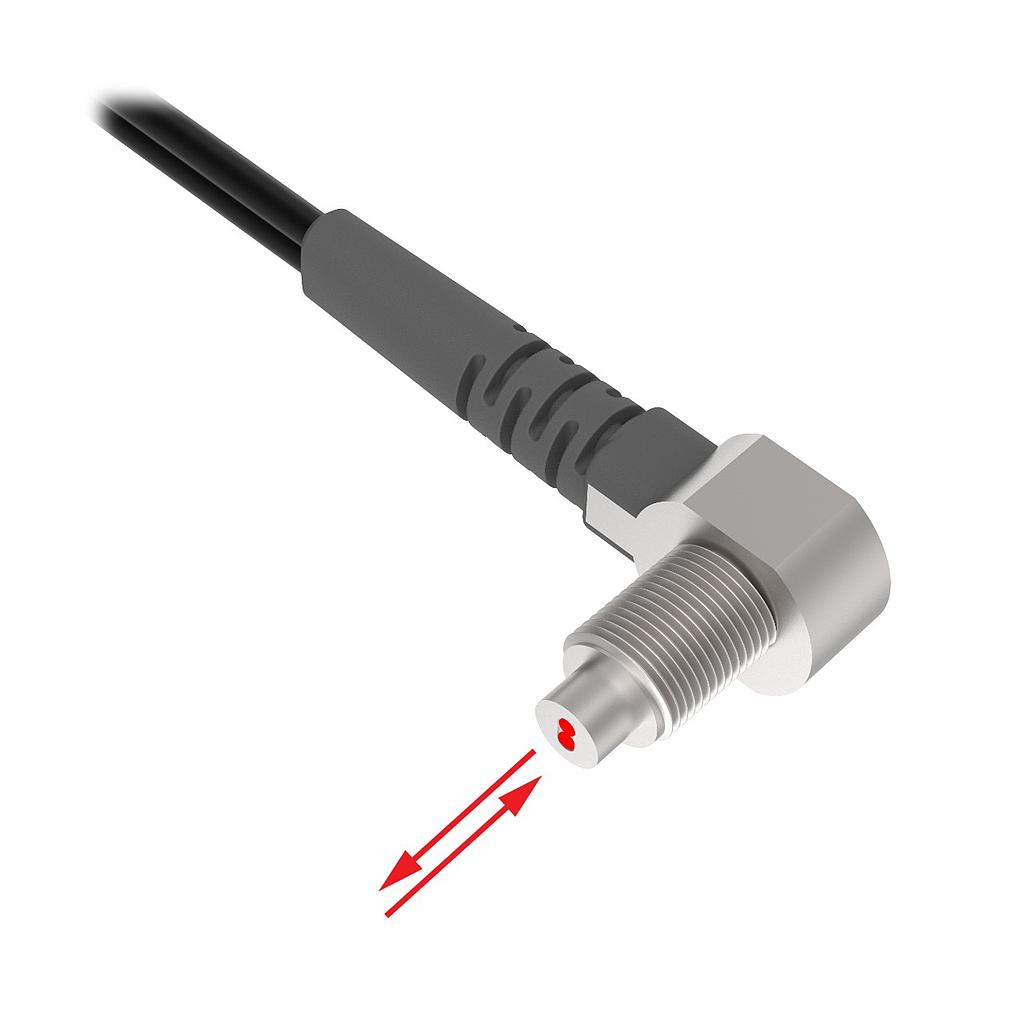

Plastic Fiber, Diffuse Reflective (PBAT46UHFTA-VL)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 88142
Weight: 0.05 lb(s)
Plastic Fiber, Diffuse Reflective
Features:
- Plastic Fiber, Diffuse Reflective
- Core Dia.: 1 mm
- Fiber Length 2 m
- Right Angle, Thread M6
- High Flex 2 mm Bend Radius, Flex Relief
- Free cut
- Vantage Line
Plastic Fiber, Diffuse Reflective (PBAT46UHFTA-VL)
Plastic Fiber, Diffuse Reflective
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Angle
Tariff Fiber Meters:4 fbm
Measured Max Distance:135 mm
Min Bend Radius:2 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:4.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Ferrule
Termination:Free Cut
Sensing End Material (Specific):Stainless Steel
Feature: Integrated Lens:Yes
Core Diameter:1 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:Yes
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M6
Fiber Length:2 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Thread
Sensing End Segment 3:Ferrule
Beam Exit:Right Angle
Feature: Liquid Level:No
Max Range: DF-G3:> 1m to <= 3m
Min Hinged Door Size:2 mm
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:135 mm
Max Distance: DF-G3:1047 mm
Max Distance: DF-G2:218 mm
Minimum Bend Radius:2 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Angle |
| Tariff Fiber Meters | 4 fbm |
| Measured Max Distance | 135 mm |
| Min Bend Radius | 2 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 4.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Ferrule |
| Termination | Free Cut |
| Sensing End Material (Specific) | Stainless Steel |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | Yes |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M6 |
| Fiber Length | 2 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Thread |
| Sensing End Segment 3 | Ferrule |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 1m to <= 3m |
| Min Hinged Door Size | 2 mm |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 135 mm |
| Max Distance: DF-G3 | 1047 mm |
| Max Distance: DF-G2 | 218 mm |
| Minimum Bend Radius | 2 mm |
