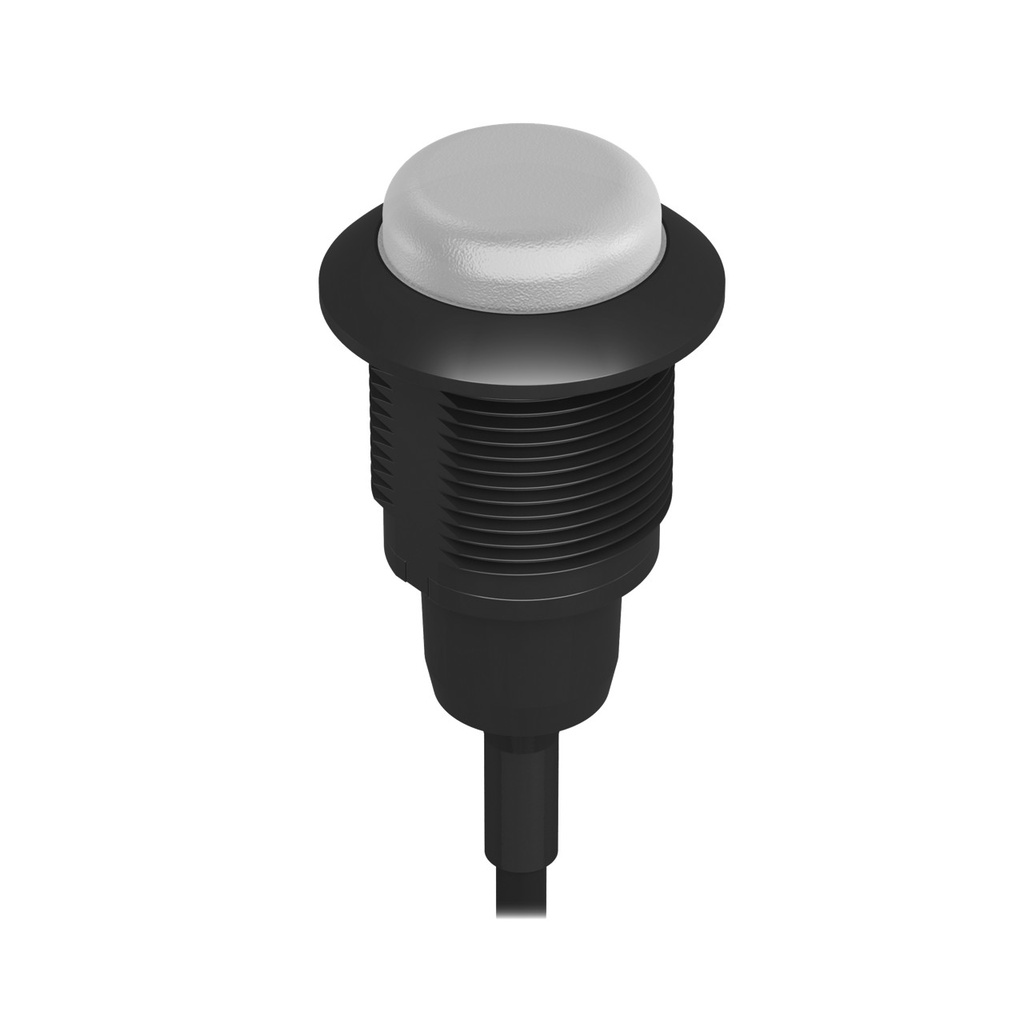

S18 Ez-Light Daylight Visible High Intensity 18 Mm 1-Color (S18DLHWQP-88111)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 88111
Weight: 0.14 lb(s)
Features:
- S18 EZ-LIGHT Daylight Visible High Intensity 18 mm 1-Color; Voltage: 9-30 V dc; Environmental Rating: IP67; Color: White; Input: PNP; Euro 4-pin 150 mm (6 in) PVC Pigtail; Pin 3: Common; Pin 1: +V
S18 Ez-Light Daylight Visible High Intensity 18 Mm 1-Color (S18DLHWQP-88111)
Power:DC
Feature: Display Lighting:No
Max Current Color:60 mA
Power Source:VDC
Ingress Protection:IP67/69
Housing Style:Barrel Mount - Flat Window
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:23.5 x 35.7 mm
Feature: Wireless:No
Feature: Indication:Yes
Supply Voltage:9-30 VDC
Feature: Quick Disconnect:Yes
Lumens Color 1:20
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:White
Color 1 - Wavelength/Color Temp/Coordinates:7500K
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:M12 (Euro)
Number of Colors / Segments:1
Product Size (mm):18 mm
Number of Input Pins/Conductors:4
Input Type:Bimodal (PNP/NPN)
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M18 x 1.0
Max Input Response Time (ms):1 ms
Feature: Chemical Resistant:No
Indication Intensity:High Brightness & Daylight Visible
Connection:Pigtail QD
Country of Origin:CN
NEMA / UL:NEMA/UL 4X/13
Max Input Response Time:1 ms
Specifications
| Power | DC |
| Feature: Display Lighting | No |
| Max Current Color | 60 mA |
| Power Source | VDC |
| Ingress Protection | IP67/69 |
| Housing Style | Barrel Mount - Flat Window |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 23.5 x 35.7 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Supply Voltage | 9-30 VDC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 20 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | White |
| Color 1 - Wavelength/Color Temp/Coordinates | 7500K |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 (Euro) |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 18 mm |
| Number of Input Pins/Conductors | 4 |
| Input Type | Bimodal (PNP/NPN) |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M18 x 1.0 |
| Max Input Response Time (ms) | 1 ms |
| Feature: Chemical Resistant | No |
| Indication Intensity | High Brightness & Daylight Visible |
| Connection | Pigtail QD |
| Country of Origin | CN |
| NEMA / UL | NEMA/UL 4X/13 |
| Max Input Response Time | 1 ms |
