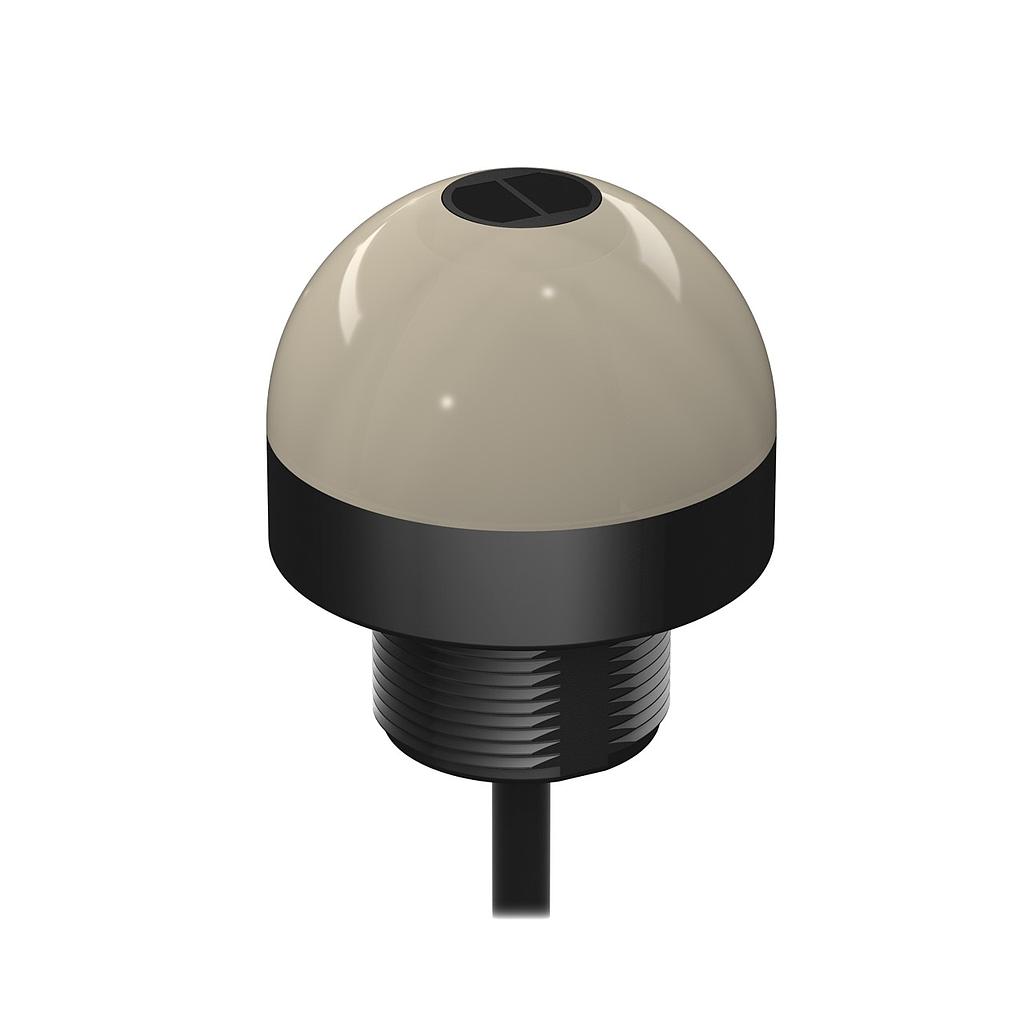

K50 D-Series EZ-LIGHT Specialty (K50RPFF50YXXD5QPMA-88106)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 88106
Weight: 0.3 lb(s)
Features:
- K50 D-Series EZ-LIGHT Specialty
- : 1-Color High Intensity Fixed-Field Sensor
- Voltage: 12-30 V dc
- Housing: Polycarbonate
- IP67
- Range: 50 mm
- Input: PNP Output NC
- Colors: Yellow
- Euro 5-pin 150 mm (6 in) PUR Pigtail
K50 D-Series EZ-LIGHT Specialty (K50RPFF50YXXD5QPMA-88106)
Valve: Actuation:Yes
Brand_Name:Banner
Manufacturer Product Family:K50
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Measurement Maximum:0
Max Current Color:90 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Ingress Protection:IP67/69
Housing Style:Base Mount - Dome Window
Max Sensing Distance:50 mm
Sensing Mode (General):Fixed Field
Max Relative Humidity:90% @ 50 °C (NC)
Number of Beams:1
Housing Material_:Polycarbonate
Light Color:Yellow
Feature: Washdown Rated:Yes
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:50.0 x 56.8 mm
Feature: Wireless:No
Supply Voltage:12-30 VDC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Yellow
Housing Color:Black
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:1
Number of Input Pins/Conductors:5
Input Type:PNP
Max Op. Relative NC Humidity:90% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Feature: Chemical Resistant:No
Operation:Normally Closed
Button Operation:Momentary
Activation Function:Optical
Max Output Response Time:10 ms
Pick-to-Light Function:D5
Job Light:Yellow
Connection Type:Pigtail PUR QD, Pigtail PUR QD, Pigtail PUR QD
Country of Origin:US
NEMA / UL:UL 4X/13
Cord/Cable Length:0.15 m
Feature: Actuation:Yes
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Yes |
| Uncategorized | |
|---|---|
| Brand_Name | Banner |
| Manufacturer Product Family | K50 |
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Measurement Maximum | 0 |
| Max Current Color | 90 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Ingress Protection | IP67/69 |
| Housing Style | Base Mount - Dome Window |
| Max Sensing Distance | 50 mm |
| Sensing Mode (General) | Fixed Field |
| Max Relative Humidity | 90% @ 50 °C (NC) |
| Number of Beams | 1 |
| Housing Material_ | Polycarbonate |
| Light Color | Yellow |
| Feature: Washdown Rated | Yes |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 50.0 x 56.8 mm |
| Feature: Wireless | No |
| Supply Voltage | 12-30 VDC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Yellow |
| Housing Color | Black |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 1 |
| Number of Input Pins/Conductors | 5 |
| Input Type | PNP |
| Max Op. Relative NC Humidity | 90% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Feature: Chemical Resistant | No |
| Operation | Normally Closed |
| Button Operation | Momentary |
| Activation Function | Optical |
| Max Output Response Time | 10 ms |
| Pick-to-Light Function | D5 |
| Job Light | Yellow |
| Connection Type | Pigtail PUR QD, Pigtail PUR QD, Pigtail PUR QD |
| Country of Origin | US |
| NEMA / UL | UL 4X/13 |
| Cord/Cable Length | 0.15 m |
| Feature: Actuation | Yes |
