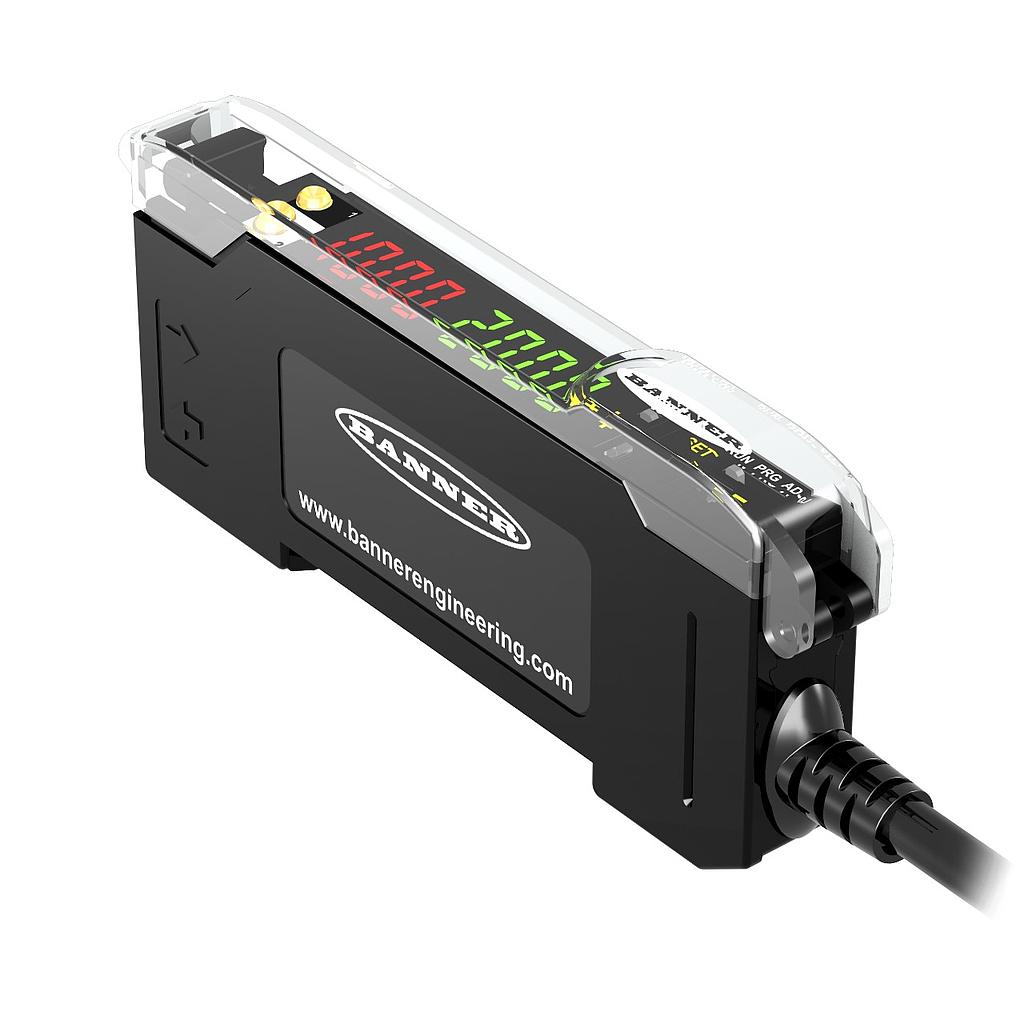

DF-G3 Red Beam High Power Dual Display Fiber Amplifier (DF-G3-PU-2M)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 87596
Weight: 0.07 lb(s)
Features:
- DF-G3 Red Beam High Power Dual Display Fiber Amplifier
- Range: Depends on fiber
- Input 12-30 V dc
- Outputs: 1 PNP and 0-10 V dc analog
- Connection: 5-conductor 2 m PVC Cable
DF-G3 Red Beam High Power Dual Display Fiber Amplifier (DF-G3-PU-2M)
Brand_Name:Banner
Manufacturer Product Family:DFG SERIES
Min Operating Temperature:-10 °C
Max Operating Temperature:55 °C
Power Supply:12-30 VDC
Delay at Power-Up:500 ms
Feature: Bussable Power:No
Measurement Minimum:0
Ingress Protection:IP50
Repeatability (µs):100 to 180
Housing Style:DIN Rail
Max Relative Humidity:90% @ 60 °C, 90% @ 60 °C
Housing Material_:Thermoplastic
Feature: Hazardous Area:No
Analog Output:0 to 10 VDC
Feature: IO Link:No
Feature: Quick Disconnect:No
Feature: Audible:No
Number of Pins:5
Adjustments:Teach Button
Feature: Timing (Hold/Delay):Yes
Input/Output:Analog & Discrete
Min Response Time:.5 ms
Output Type (Specific):Analog & Discrete
Fiber Type:Plastic and Glass
Color LED - Amplifiers:Red
Feature: Remote Teach:Yes
Feature: Intrinsically Safe:No
Connection Type:Cable
Country of Origin:CN
NEMA / UL:NEMA 1
Cord/Cable Length:2 m
Fiber Termination Type:Unterminated Plastic Fibers or T5 Termination
Feature: Crosstalk Avoidance:Yes
Indicator Type:Dual Digital Displays
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | DFG SERIES |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Power Supply | 12-30 VDC |
| Delay at Power-Up | 500 ms |
| Feature: Bussable Power | No |
| Measurement Minimum | 0 |
| Ingress Protection | IP50 |
| Repeatability (µs) | 100 to 180 |
| Housing Style | DIN Rail |
| Max Relative Humidity | 90% @ 60 °C, 90% @ 60 °C |
| Housing Material_ | Thermoplastic |
| Feature: Hazardous Area | No |
| Analog Output | 0 to 10 VDC |
| Feature: IO Link | No |
| Feature: Quick Disconnect | No |
| Feature: Audible | No |
| Number of Pins | 5 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | Yes |
| Input/Output | Analog & Discrete |
| Min Response Time | .5 ms |
| Output Type (Specific) | Analog & Discrete |
| Fiber Type | Plastic and Glass |
| Color LED - Amplifiers | Red |
| Feature: Remote Teach | Yes |
| Feature: Intrinsically Safe | No |
| Connection Type | Cable |
| Country of Origin | CN |
| NEMA / UL | NEMA 1 |
| Cord/Cable Length | 2 m |
| Fiber Termination Type | Unterminated Plastic Fibers or T5 Termination |
| Feature: Crosstalk Avoidance | Yes |
| Indicator Type | Dual Digital Displays |
