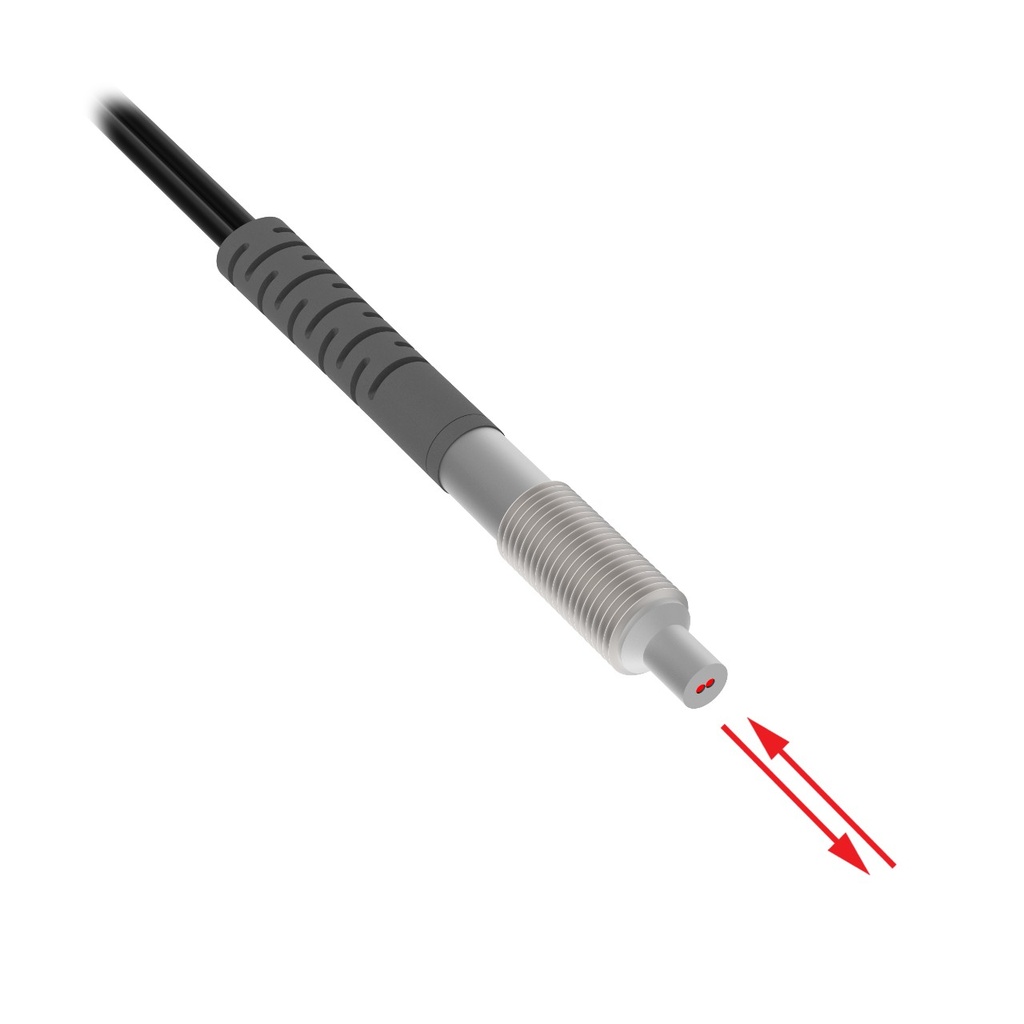

Plastic Fiber, Diffuse Reflective (PBT23UM4-VL)
Plastic Fiber, Diffuse Reflective
Measurement Maximum:0
Max Operating Temperature:70 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:No
Sensing End Segment 1:Thread
Tariff Fiber Meters:2 fbm
Measured Max Distance:75 mm
Min Bend Radius:15 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:M2.6
Feature: Retractile:No
Fiber Sensing End Tip:Thread
Termination:Free Cut
Sensing End Material (Specific):Nickel-Plated Brass
Feature: Integrated Lens:Yes
Core Diameter:0.5 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:Yes
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:M4
Fiber Length:1 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Thread
Beam Exit:In-line
Feature: Liquid Level:No
Max Range: DF-G3:> 500mm to <= 1000mm
Min Hinged Door Size:15 mm
Min Repeat Bending Endurance:1000
Country of Origin:TW
Max Distance: DF-G1:75 mm
Max Distance: DF-G3:584 mm
Max Distance: DF-G2:122 mm
Minimum Bend Radius:15 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Thread |
| Tariff Fiber Meters | 2 fbm |
| Measured Max Distance | 75 mm |
| Min Bend Radius | 15 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | M2.6 |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Thread |
| Termination | Free Cut |
| Sensing End Material (Specific) | Nickel-Plated Brass |
| Feature: Integrated Lens | Yes |
| Core Diameter | 0.5 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | Yes |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | M4 |
| Fiber Length | 1 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Thread |
| Beam Exit | In-line |
| Feature: Liquid Level | No |
| Max Range: DF-G3 | > 500mm to <= 1000mm |
| Min Hinged Door Size | 15 mm |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | TW |
| Max Distance: DF-G1 | 75 mm |
| Max Distance: DF-G3 | 584 mm |
| Max Distance: DF-G2 | 122 mm |
| Minimum Bend Radius | 15 mm |
