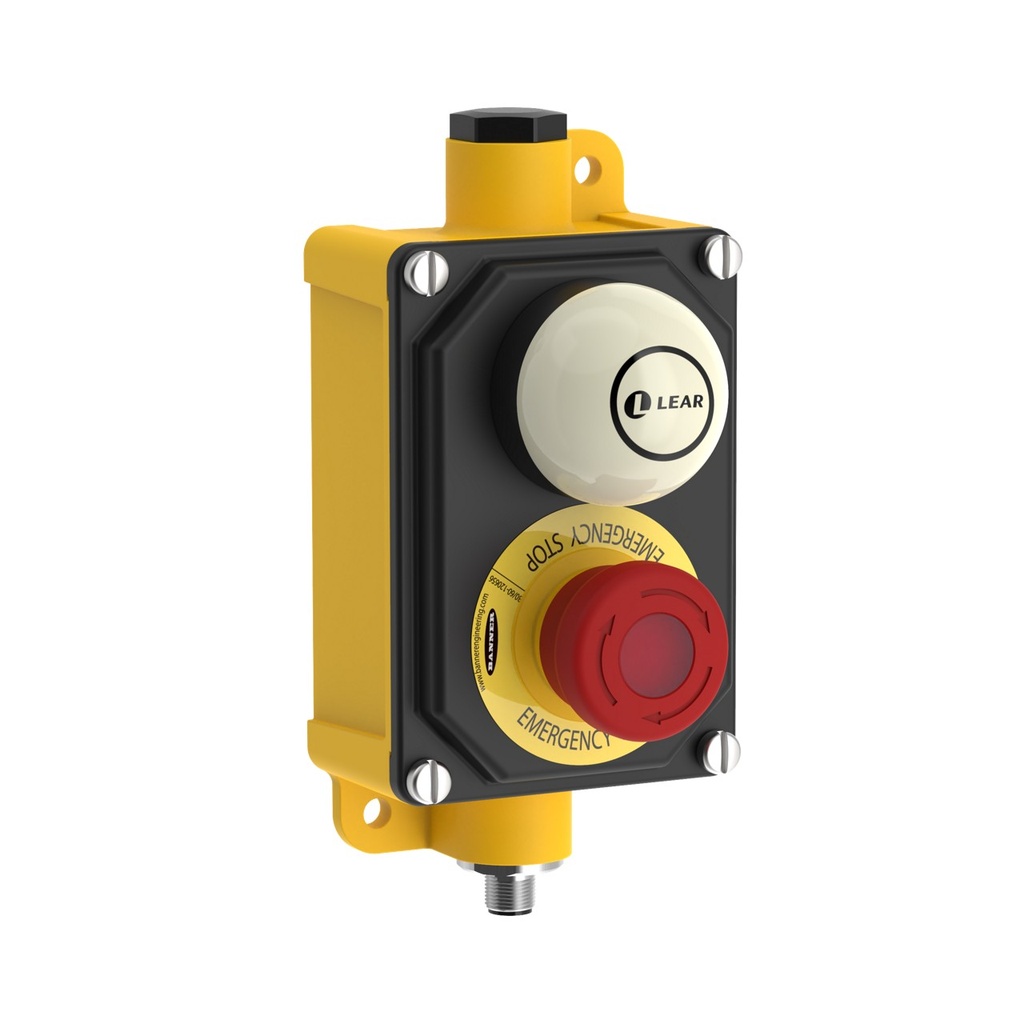

Representative photo. Please check item description for details.
E-Stop Button Metal 2Nc 1No Legend (SSA-EBM-12EB1Q12K50T)
Valve: Actuation:Twist-to-Release
Brand_Name:Banner
Min Operating Temperature:-25 °C
Max Operating Temperature:60 °C
Ingress Protection:IP65
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Feature: Quick Disconnect:Yes
Contact Quantity:2 NC, 1 NO
Actuated Color:Red
Actuator/Button Material:Thermoplastic
Contact Rating:2 A @ 24 VDC
Mounting Thread/Style:Flat
Feature: Illuminated:Yes
Feature: Lockable:Yes
Illumination Type:Light Added
Connection Type:Quick Disconnect, Quick Disconnect
Country of Origin:US
Button Diameter:40 mm
Feature: Button Shroud:No
Feature: In-Series Diagnostics:No
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist-to-Release |
| Uncategorized | |
|---|---|
| Brand_Name | Banner |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 60 °C |
| Ingress Protection | IP65 |
| Housing Style | Base |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Feature: Quick Disconnect | Yes |
| Contact Quantity | 2 NC, 1 NO |
| Actuated Color | Red |
| Actuator/Button Material | Thermoplastic |
| Contact Rating | 2 A @ 24 VDC |
| Mounting Thread/Style | Flat |
| Feature: Illuminated | Yes |
| Feature: Lockable | Yes |
| Illumination Type | Light Added |
| Connection Type | Quick Disconnect, Quick Disconnect |
| Country of Origin | US |
| Button Diameter | 40 mm |
| Feature: Button Shroud | No |
| Feature: In-Series Diagnostics | No |
