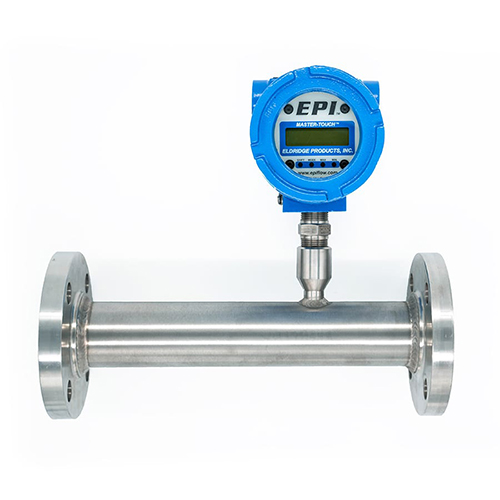

EPI 8724MPNH IN-LINE THERMAL MASS FLOW METER, 3" X 14", INTEGRAL ELECTRONICS, 316SS THERMAL WELLS, PROGRAMMABLE DISPLAY, 24VDC, GAS TEMP RANGE AMBIENT TO 122F, RS485 MODBUS RTU
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8724MPNH-INT-SSS-133-DC24-MW050-S4024MTP2-1RC-NG-CSA/CUS-MB
Weight: 75.0 lb(s)
8724MPNH - Ordinary Locations In-line Style Flow Meter - 3" x 14"
INT - Integral Electronics - Standard analog signal (4-20mA flow) and one digital output (RS485 Modbus RTU). OPTIONAL
ANALOG OUTPUTS: 4-20mA temp. and 0-5VDC or 0-10VDC flow & temp. OPTIONAL DIGITAL OUTPUTS: HART,
BACnet, or Profibus.
SSS - 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded
by epoxy buffer.
133 - 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
DC24 - 24 VDC
S4024MTP2 - 3" SCH 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
1RC - 1 Gas Range
NG - NATURAL GAS calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced
accuracy calibration is always optional
CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in Ordinary Locations
Only CSA Enclosures Type 4X, IP66, CE Compliant
MB - RS485 Modbus RTU - Read & Write
EPI 8724MPNH IN-LINE THERMAL MASS FLOW METER, 3" X 14", INTEGRAL ELECTRONICS, 316SS THERMAL WELLS, PROGRAMMABLE DISPLAY, 24VDC, GAS TEMP RANGE AMBIENT TO 122F, RS485 MODBUS RTU
8724MPNH - Ordinary Locations In-line Style Flow Meter - 3" x 14"
INT - Integral Electronics - Standard analog signal (4-20mA flow) and one digital output (RS485 Modbus RTU). OPTIONAL
ANALOG OUTPUTS: 4-20mA temp. and 0-5VDC or 0-10VDC flow & temp. OPTIONAL DIGITAL OUTPUTS: HART,
BACnet, or Profibus.
SSS - 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded
by epoxy buffer.
133 - 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
DC24 - 24 VDC
S4024MTP2 - 3" SCH 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
1RC - 1 Gas Range
NG - NATURAL GAS calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced
accuracy calibration is always optional
CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in Ordinary Locations
Only CSA Enclosures Type 4X, IP66, CE Compliant
MB - RS485 Modbus RTU - Read & Write
Brand_Name:Eldridge
Process Connection Type:NPT-Male
Measurement Minimum:0
Output Communication Protocol:Multiple
Specifications
| Brand_Name | Eldridge |
| Process Connection Type | NPT-Male |
| Measurement Minimum | 0 |
| Output Communication Protocol | Multiple |
