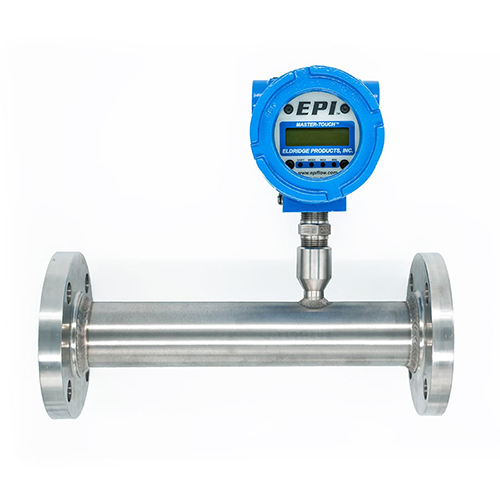

Series 8600-8700MP Inline Thermal Mass Flow Meter
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8720MPNH-INT -SSS-133- DC24-MW050-S4012MTP2-1RC-NG-CSA/CUS-BN
Weight: 5.0 lb(s)
8720MP‐ Hazardous Area In-line Style Flow Meter - 2 1/2" x 14"
INT‐ Integral Electronics - Standard analog signal (4-20mA flow) and one digital output (RS485 Modbus RTU). OPTIONAL
ANALOG OUTPUTS: 4-20mA temp. and 0-5VDC or 0-10VDC flow & temp. OPTIONAL DIGITAL OUTPUTS: HART,
BACnet, or Profibus
SSS‐ 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded
by epoxy buffer.
133‐ 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale,
Temperature, Raw mW Cooling
DC24‐ 24VDC
MW050‐ Gas Temperature Range: Ambient to 50°C/122°F
S4012MTP2‐ 1 1/2" SCH 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
1RC‐ 1 Gas Range
NG‐ NATURAL GAS calibration against our certified 0.05% accurate Primary Standard that is directly
traceable to NIST. Enhanced accuracy calibration is always optional.
CSA/CUS - CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in Ordinary Locations
Only CSA Enclosures Type 4X, IP66, CE Compliant
BN - BACnet MS/TP
