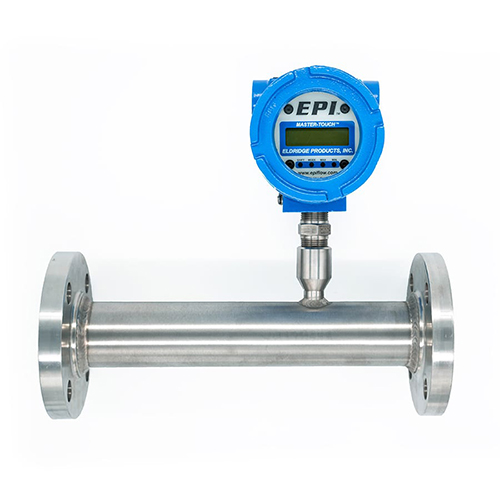

Series 8600-8700MP Inline Thermal Mass Flow Meter, Modbus Output (copy)
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8720MP-INT -SSS-133- DC24-MW050-S4020MTP2-1RC-NG-CT2-MB
Weight: 20.0 lb(s)
8720MP‐ Hazardous Area In-line Style Flow Meter - 2 1/2" x 14"
INT‐ Integral Electronics - Standard two analog signal (4-20mA and 0-5VDC flow & temperature) and one digital output (RS485
Modbus RTU). OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus.
SSS‐ 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded
by epoxy buffer.
133‐ 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale,
Temperature, Raw mW Cooling
DC24‐ 24VDC
MW075‐ Gas Temperature Range: Ambient to 50°C/122°F
S4020MTP2‐ 2 1/2" SCH 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
1RC‐ 1 Gas Range
NG‐ NATURAL GAS calibration against our certified 0.05% accurate Primary Standard that is directly
traceable to NIST. Enhanced accuracy calibration is always optional.
CT2‐ CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display); Approved
for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area locations; Class I
Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d
IB+H2 IP66; T2; Ta = 0°C to 50°C
MB‐ RS485 Modbus RTU - Read & Write
Series 8600-8700MP Inline Thermal Mass Flow Meter, Modbus Output (copy)
8720MP‐ Hazardous Area In-line Style Flow Meter - 2 1/2" x 14"
INT‐ Integral Electronics - Standard two analog signal (4-20mA and 0-5VDC flow & temperature) and one digital output (RS485
Modbus RTU). OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus.
SSS‐ 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded
by epoxy buffer.
133‐ 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale,
Temperature, Raw mW Cooling
DC24‐ 24VDC
MW075‐ Gas Temperature Range: Ambient to 50°C/122°F
S4020MTP2‐ 2 1/2" SCH 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
1RC‐ 1 Gas Range
NG‐ NATURAL GAS calibration against our certified 0.05% accurate Primary Standard that is directly
traceable to NIST. Enhanced accuracy calibration is always optional.
CT2‐ CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display); Approved
for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area locations; Class I
Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d
IB+H2 IP66; T2; Ta = 0°C to 50°C
MB‐ RS485 Modbus RTU - Read & Write
Brand_Name:Eldridge
Measurement Maximum:0
Process Connection Type:NPT
Measurement Minimum:0
Output Communication Protocol:Modbus
Input Voltage:24 VDC
Specifications
| Brand_Name | Eldridge |
| Measurement Maximum | 0 |
| Process Connection Type | NPT |
| Measurement Minimum | 0 |
| Output Communication Protocol | Modbus |
| Input Voltage | 24 VDC |
