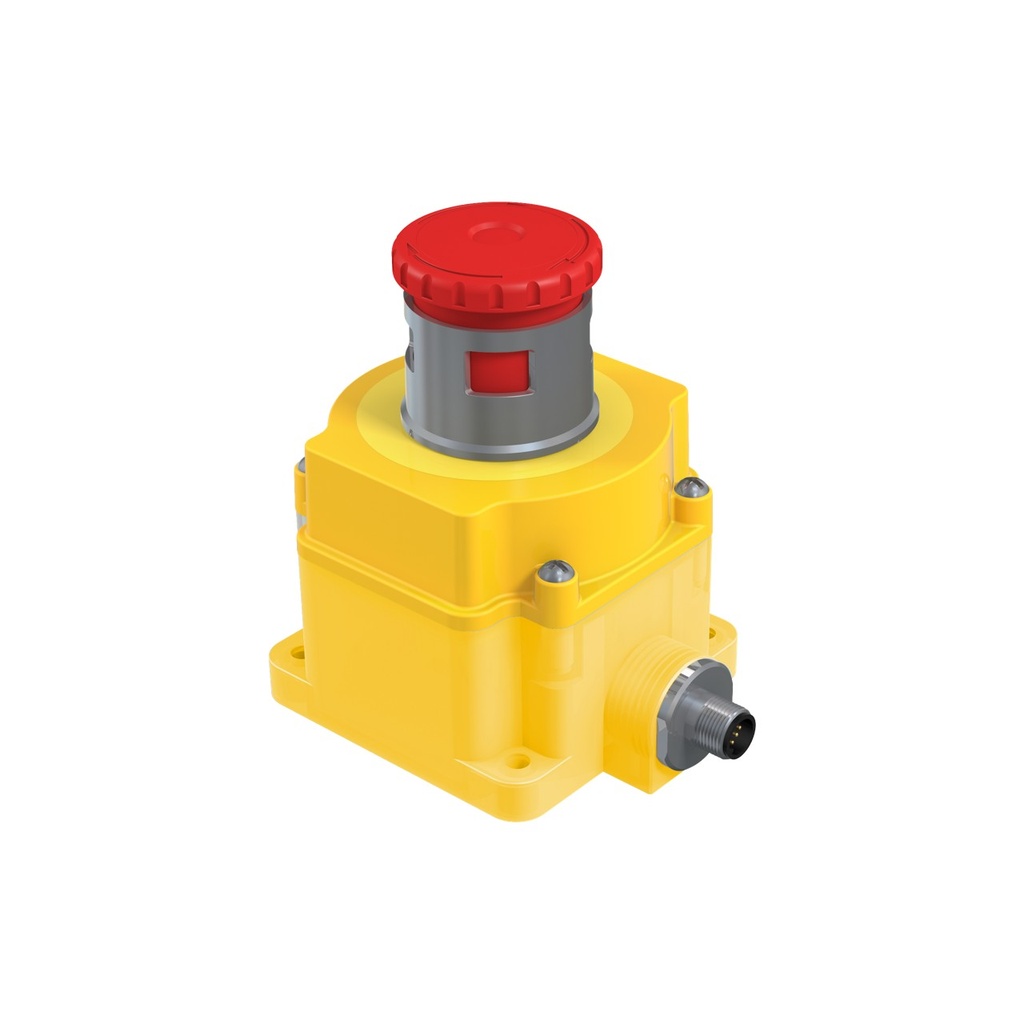

Emergency Stop: Flush Mounting 44Mm Lockable Push Button (SSA-EB1MLYRP-12ED1Q8-87186)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 87186
Weight: 0.88 lb(s)
Features:
- Emergency Stop: Flush Mounting 44MM Lockable Push Button; Environ. Rating: IP65; Lighted; Color: Yellow, Red Solid/Flashing; 2 N.C. Safety Contacts; 1 N.O. Aux Contact; 8 Pin Euro-Style QD Connector on Bottom of Unit
Emergency Stop: Flush Mounting 44Mm Lockable Push Button (SSA-EB1MLYRP-12ED1Q8-87186)
Valve: Actuation:Twist-to-Release
Brand_Name:Banner
Min Operating Temperature:-25 °C
Max Operating Temperature:55 °C
Ingress Protection:IP65
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Light Color:Red
Physical Dimensions:113 x 110 x 81 mm
Feature: Quick Disconnect:Yes
Contact Quantity:2 NC, 1 NO
Actuated Color:Red - Flash
Actuator/Button Material:Thermoplastic
Mounting Thread/Style:Flat
Feature: Illuminated:Yes
Feature: Lockable:Yes
Illumination Type:Base
Armed Color (Solid):Yellow
Connection Type:M12, M12
Country of Origin:JP
Button Diameter:44 mm
Feature: Button Shroud:No
Stop Signal Color (Solid):Red
Feature: In-Series Diagnostics:No
Feature: Actuation:Twist-to-Release
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist-to-Release |
| Uncategorized | |
|---|---|
| Brand_Name | Banner |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 55 °C |
| Ingress Protection | IP65 |
| Housing Style | Base |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Light Color | Red |
| Physical Dimensions | 113 x 110 x 81 mm |
| Feature: Quick Disconnect | Yes |
| Contact Quantity | 2 NC, 1 NO |
| Actuated Color | Red - Flash |
| Actuator/Button Material | Thermoplastic |
| Mounting Thread/Style | Flat |
| Feature: Illuminated | Yes |
| Feature: Lockable | Yes |
| Illumination Type | Base |
| Armed Color (Solid) | Yellow |
| Connection Type | M12, M12 |
| Country of Origin | JP |
| Button Diameter | 44 mm |
| Feature: Button Shroud | No |
| Stop Signal Color (Solid) | Red |
| Feature: In-Series Diagnostics | No |
| Feature: Actuation | Twist-to-Release |
