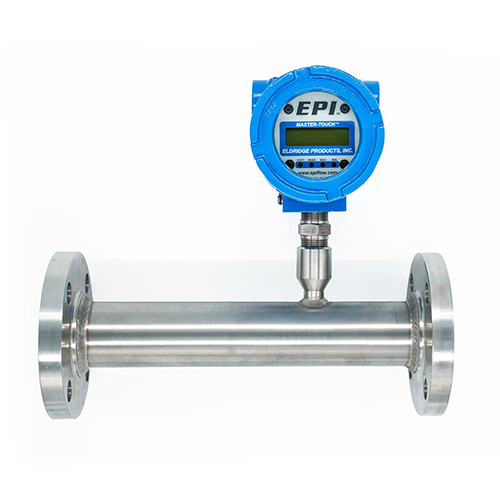

EPI 8712MPNH IN-LINE THERMAL MASS FLOW METER, 1.5" X 14", INTEGRAL ELECTRONICS
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8712MPNH-INT-SSS-133-DC24-MW125-S4012MTP2-1RC-AIR-CSA/CUS-MB
Weight: 7.0 lb(s)
-8712MPNH: Ordinary Locations In-line Style Flow Meter – 1.5" x 14"
-INT: Integral Electronics - Standard analog signal (4-20mA flow) and one digital output (RS485 Modbus RTU). OPTIONAL ANALOG OUTPUTS: 4-20mA temp. and 0-5VDC or
0-10VDC flow & temp. OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus.
-SSS: 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded by epoxy buffer
-133: 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable key[1]pad; OUTPUT: Flow, Total Flow, % of Full
Scale, Temperature, Raw mW cooling
-DC24: 24 VDC
-MW125: Gas Temperature Range: Ambient to 125°C/257°F
-S4012MTP2: 1.5" SCH 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
-1RC: 1 Gas Range
-AIR: AIR calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced accuracy calibration is always optional
-CSA/CUS: CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in Ordinary Locations Only CSA Enclosures Type 4X, IP66, CE
Compliant
-MB: RS485 Modbus RTU - Read & Write
EPI 8712MPNH IN-LINE THERMAL MASS FLOW METER, 1.5" X 14", INTEGRAL ELECTRONICS
-8712MPNH: Ordinary Locations In-line Style Flow Meter – 1.5" x 14"
-INT: Integral Electronics - Standard analog signal (4-20mA flow) and one digital output (RS485 Modbus RTU). OPTIONAL ANALOG OUTPUTS: 4-20mA temp. and 0-5VDC or
0-10VDC flow & temp. OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus.
-SSS: 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded by epoxy buffer
-133: 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable key[1]pad; OUTPUT: Flow, Total Flow, % of Full
Scale, Temperature, Raw mW cooling
-DC24: 24 VDC
-MW125: Gas Temperature Range: Ambient to 125°C/257°F
-S4012MTP2: 1.5" SCH 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
-1RC: 1 Gas Range
-AIR: AIR calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced accuracy calibration is always optional
-CSA/CUS: CSA/CUS: Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control Equipment in Ordinary Locations Only CSA Enclosures Type 4X, IP66, CE
Compliant
-MB: RS485 Modbus RTU - Read & Write
Brand_Name:Eldridge
Process Connection Type:NPT-Male
Process Connection Size:1-1/2"
Measurement Minimum:0
Output Communication Protocol:Multiple
Input Voltage:24 VDC
Specifications
| Brand_Name | Eldridge |
| Process Connection Type | NPT-Male |
| Process Connection Size | 1-1/2" |
| Measurement Minimum | 0 |
| Output Communication Protocol | Multiple |
| Input Voltage | 24 VDC |
