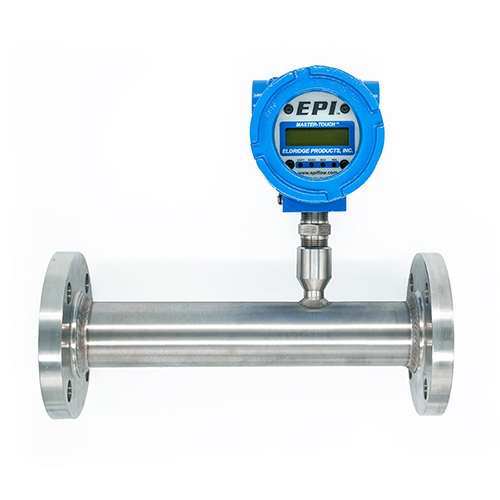

Series 8600-8700MP Inline Thermal Mass Flow Meter, Modbus Output
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8712MP‐INT‐SSS‐133‐ DC12‐MW075‐S4012MTP2‐1RC‐NG‐CT2‐MB
Weight: 13.0 lb(s)
8712MP‐ Hazardous Area In-line Style Flow Meter - 1 1/2" x 14"
INT‐ Integral Electronics - standard outputs: 0-5VDC & 4-20mA (flow with optional temperature), RS485
Modbus RTU. 4-20mA Modbus is enabled.
SSS‐ 316L stainless steel sensor. OPTIONAL - sensor with attenuating rod, sensor with particle sensor shield,
or Hastelloy® C-276 sensor
133‐ 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button
programmable key-pad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
DC12‐ 12 VDC
MW075‐ Gas Temperature Range: Ambient to 75°C/167°F
S4012MTP2‐ 1 1/2" Sch 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
1RC‐ 1 Gas Range
NG‐ NATURAL GAS calibration against our certified 0.05% accurate Primary Standard that is directly
traceable to NIST. Enhanced accuracy calibration is always optional.
CT2‐ T2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with
display); Approved for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in
hazardous area locations; Class I Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type
4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d IIB+H2 IP66; T2; Ta = 0°C to 50°C
MB‐ RS485 Modbus RTU - Read & Write
Series 8600-8700MP Inline Thermal Mass Flow Meter, Modbus Output
8712MP‐ Hazardous Area In-line Style Flow Meter - 1 1/2" x 14"
INT‐ Integral Electronics - standard outputs: 0-5VDC & 4-20mA (flow with optional temperature), RS485
Modbus RTU. 4-20mA Modbus is enabled.
SSS‐ 316L stainless steel sensor. OPTIONAL - sensor with attenuating rod, sensor with particle sensor shield,
or Hastelloy® C-276 sensor
133‐ 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button
programmable key-pad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
DC12‐ 12 VDC
MW075‐ Gas Temperature Range: Ambient to 75°C/167°F
S4012MTP2‐ 1 1/2" Sch 40 Stainless Steel 316L x 14" Section - MNPT ends - flow screens
1RC‐ 1 Gas Range
NG‐ NATURAL GAS calibration against our certified 0.05% accurate Primary Standard that is directly
traceable to NIST. Enhanced accuracy calibration is always optional.
CT2‐ T2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with
display); Approved for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in
hazardous area locations; Class I Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type
4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d IIB+H2 IP66; T2; Ta = 0°C to 50°C
MB‐ RS485 Modbus RTU - Read & Write
Brand_Name:Eldridge
Measurement Maximum:0
Process Connection Type:NPT
Process Connection Size:1-1/2"
Measurement Minimum:0
Output Communication Protocol:Modbus
Input Voltage:12 VDC
Specifications
| Brand_Name | Eldridge |
| Measurement Maximum | 0 |
| Process Connection Type | NPT |
| Process Connection Size | 1-1/2" |
| Measurement Minimum | 0 |
| Output Communication Protocol | Modbus |
| Input Voltage | 12 VDC |
