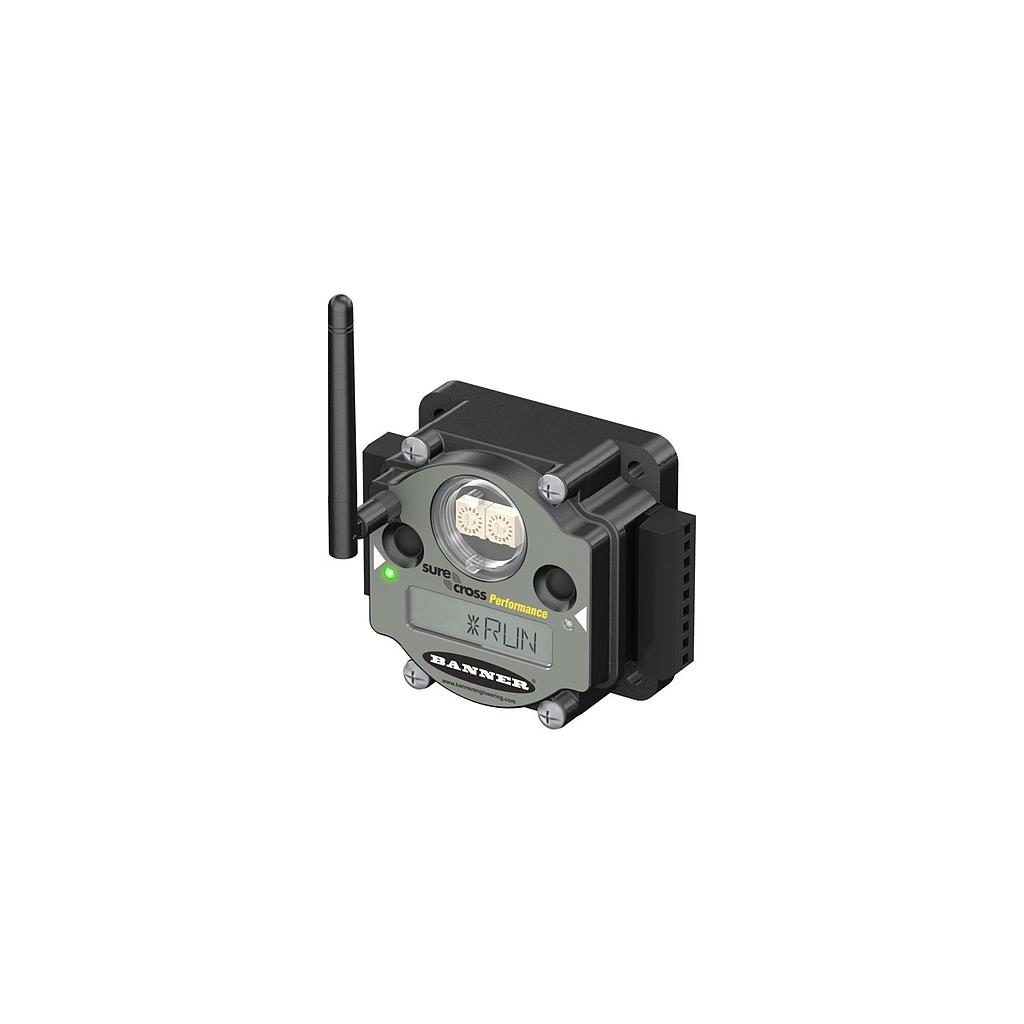

PM Series Node- LCD for Diagnostics (DX80N2X6S-PM2C)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 87109
Weight: 0.93 lb(s)
PM Series NodeLCD for Diagnostics
Features:
- PM Series Node
- LCD for Diagnostics
- 2.4 GHz, IP20 /NEMA 1
- Inputs:Four selectable NPN/PNP discrete, two 0-20mA
- Outputs: Four PNP discrete, two 0-20mA
- External Terminals
PM Series Node- LCD for Diagnostics (DX80N2X6S-PM2C)
PM Series NodeLCD for Diagnostics
Power:DC
Feature: Discrete Outputs:Yes
Measurement Maximum:0
Min Operating Temperature:-40 °C
Max Operating Temperature:85 °C
Power Supply:10-30 VDC
Measurement Minimum:0
Ingress Protection:IP20
Housing Style:External Terminals
Device Type:Node
Feature: RS-232:No
Feature: RS-485:No
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Feature: Hazardous Area:Yes
Feature: Modbus RTU:No
Feature: Wireless:Yes
Input/Output:Analog & Discrete
Relative Humidity:95%
Feature: LCD Display:Yes
Output Details:4 PNP Discrete, 2 0-20 mA analog
Feature: Point-to-Point Topology:Yes
Feature: Point-to-Multipoint Topology:Yes
Input Details:(4) Selectable Discrete; (2) 0-20 mA
Feature: Discrete Inputs:Yes
Wireless Radio Frequency:2.4 GHz
Feature: Tree Topology:No
Feature: Star Topology:Yes
Feature: Analog Input(s):Yes
Hazardous/Intrinsically Safe Classification:Class I, Division 2/Zone 2; ATEX Zone 2
Feature: Analog Output(s):Yes
Country of Origin:US
NEMA / UL:NEMA 1
Specifications
| Power | DC |
| Feature: Discrete Outputs | Yes |
| Measurement Maximum | 0 |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Power Supply | 10-30 VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Housing Style | External Terminals |
| Device Type | Node |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Feature: Hazardous Area | Yes |
| Feature: Modbus RTU | No |
| Feature: Wireless | Yes |
| Input/Output | Analog & Discrete |
| Relative Humidity | 95% |
| Feature: LCD Display | Yes |
| Output Details | 4 PNP Discrete, 2 0-20 mA analog |
| Feature: Point-to-Point Topology | Yes |
| Feature: Point-to-Multipoint Topology | Yes |
| Input Details | (4) Selectable Discrete; (2) 0-20 mA |
| Feature: Discrete Inputs | Yes |
| Wireless Radio Frequency | 2.4 GHz |
| Feature: Tree Topology | No |
| Feature: Star Topology | Yes |
| Feature: Analog Input(s) | Yes |
| Hazardous/Intrinsically Safe Classification | Class I, Division 2/Zone 2; ATEX Zone 2 |
| Feature: Analog Output(s) | Yes |
| Country of Origin | US |
| NEMA / UL | NEMA 1 |
