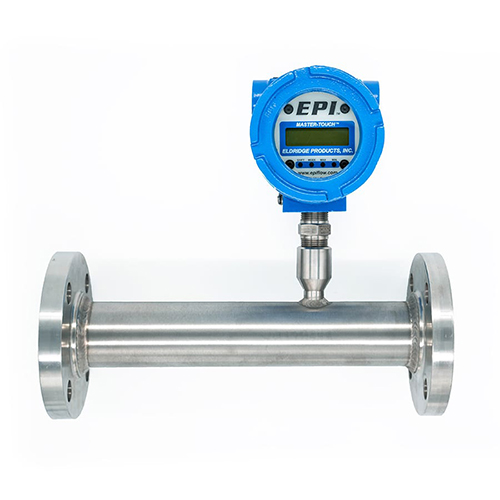

EPI 8600MP SERIES HAZ AREA IN LINE STYLE MASS FLOW METER
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8689MP-INT -SSS-133- DC24-MW050-S4089MTP2-1RC-H2-CT2-MB
Weight: 5.0 lb(s)
8649MP - Hazardous Area In-line Style Flow Meter - 1" x 8"
INT - Integral Electronics - Standard two analog signal (4-20mA and 0-5VDC flow & temperature) and one digital output (RS485
Modbus RTU). OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus
SSS - 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded
by epoxy buffer.
133 - 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
DC24 - 24 VDC
MW050 - Gas Temperature Range: Ambient to 50°C/122°F
S4089MTP2 - 1" SCH 40 Stainless Steel 316L x 8" Section - MNPT ends - flow screens
1RC - 1 Gas Range
H2 - Hydrogen calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced
accuracy calibration is always optional.
CT2 - CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display); Approved
for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area locations; Class I
Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d
IIB+H2 IP66; T2; Ta = 0°C to 50°C
MB - RS485 Modbus RTU communications module
EPI 8600MP SERIES HAZ AREA IN LINE STYLE MASS FLOW METER
8649MP - Hazardous Area In-line Style Flow Meter - 1" x 8"
INT - Integral Electronics - Standard two analog signal (4-20mA and 0-5VDC flow & temperature) and one digital output (RS485
Modbus RTU). OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus
SSS - 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded
by epoxy buffer.
133 - 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
DC24 - 24 VDC
MW050 - Gas Temperature Range: Ambient to 50°C/122°F
S4089MTP2 - 1" SCH 40 Stainless Steel 316L x 8" Section - MNPT ends - flow screens
1RC - 1 Gas Range
H2 - Hydrogen calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced
accuracy calibration is always optional.
CT2 - CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display); Approved
for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area locations; Class I
Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d
IIB+H2 IP66; T2; Ta = 0°C to 50°C
MB - RS485 Modbus RTU communications module
Brand_Name:Eldridge
Process Connection Type:NPT-Male
Measurement Minimum:0
Output Communication Protocol:Multiple
Specifications
| Brand_Name | Eldridge |
| Process Connection Type | NPT-Male |
| Measurement Minimum | 0 |
| Output Communication Protocol | Multiple |
