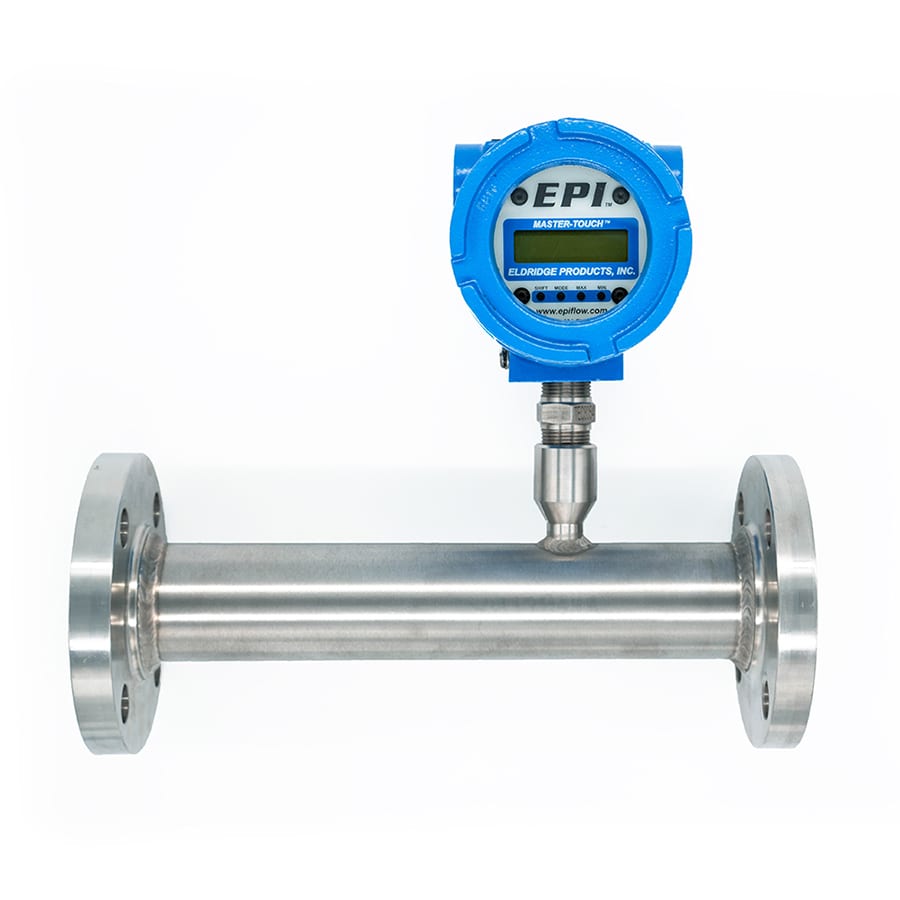

EPI 8600MP SERIES HAZ AREA IN LINE STYLE MASS FLOW METER
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8689MP-INT -SSS-133- DC24-MW050-S4089FL1508P2L14.75-1RC-AIR-AT2-MB
Weight: 30.0 lb(s)
8689MP --Hazardous Area In-line Style Flow Meter - 1" x 8"
INT -Integral Electronics - Standard two analog signal (4-20mA and 0-5VDC flow & temperature) and one digital output (RS485
Modbus RTU). OPTIONAL DIGITAL OUTPUTS: HART, BACnet, or Profibus.
SSS -316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating
bonded by epoxy buffer.
133 -2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, %
of Full Scale, Temperature, Raw mW Cooling
DC24 - 24 VDC
MW050 -Gas Temperature Range: Ambient to 50°C/122°F
S4089FL1508P2L14 -1" SCH 40 Stainless Steel 316L x 14.75" Section - ANSI 150# RF flange end - flow screens
1RC - 1 Gas Range
AIR -IR calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced accuracy
calibration is always optional.
AT2 -AT2: ATEX T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display); Approved
for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area locations; Ta = 0°C to
50°C; IP66; Ex d IIB+H2 T2 Gb/EX t IIIC T300°C Db; SIRA 12ATEX1302, CE Compliant
MB -RS485 Modbus RTU - Read & Write
Air calibration for 0-20 SCFM in a 1" Sch40 Pipe @ AMB°F and 150 PSIG
