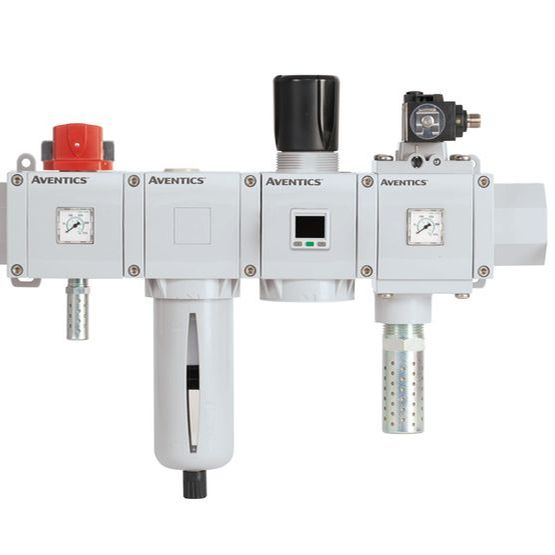

AVENTICS 652 Series Air Preparation Unit, 1/2" NPT, TCP, 8-Pin M12X1 Plug

Manufacturer: Asco LP

Mfg Product Code: 8652AV004JA0010

Weight: 2.0 lb(s)

Air Prep Unit, NPT -20 °C, TCP, 8-Pin M12X1 Plug

The AVENTICS Series 652 is an easy-to-install line of pneumatic filters, regulators and lubricators (FRLs) that offer the industry´s highest flow rates and widest temperature ratings. Available in 1/4-inch, 3/8-inch, and 1/2-inch port sizes, these FRLs are ideal for automotive and tire, packaging, food and beverage, and process applications requiring highly reliable operation and robust, modern-looking equipment. Available with integrated redundant safe exhaust valve and IIoT enabled air flow sensor.

Features

• Note: Integrated web server, 48 VDC connection via Power over Ethernet
• Switching principle: Flow measuring principle: calorimetric
• Protocol: TCP/IP, OPC UA, MQTT
• Nominal flow Qn min., standard: 5.3 l/min
• Nominal flow Qn max., standard: 1060 l/min
• Nominal flow Qn min., extended: 1060 l/min
• Nominal flow Qn max., extended: 1590 l/min
• Compressed air connection: 1/2 NPT
• Certificates: CE declaration of conformity, RoHS
• Working pressure min.: 0 bar
• Working pressure max: 16 bar
• Min. ambient temperature: -20 °C
• Max. ambient temperature: 60 °C
• Min. medium temperature: -20 °C
• Max. medium temperature: 60 °C
• Medium: Compressed air, Argon, Nitrogen, Helium, Carbon dioxide
• Display: OLED
• Flow display unit: l/sec, l/min, m³/min, m³/h, ft³/s, m³/min
• Pressure display unit: bar, psi
• Temperature display unit: °C, °F
• Electrical connection Type: Plug
• Electrical connection size: M12x1
• Electrical connection pin: 8-pin
• Power consumption max.: 5 W
• Operating voltage DC, min.: 36 V DC:
