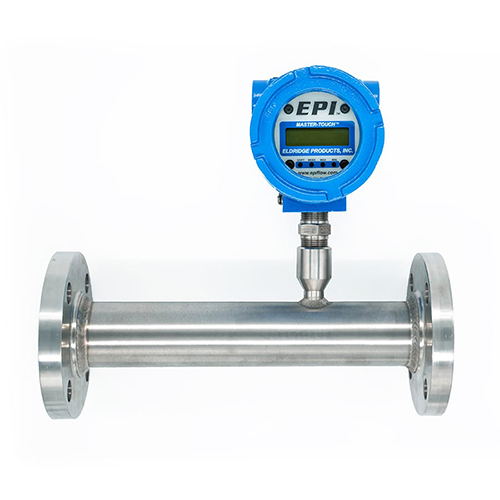

EPI 8600MP SERIES HAZ AREA IN LINE STYLE MASS FLOW METER
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8649MP-INT-SSS-133-DC24-MW050-S4049MTNZL-2RG-H2/N2-CT2-MB
Weight: 30.0 lb(s)
8649MP - Hazardous Area In-line Style Flow Meter - 3/8" x 6"
INT - Integral Electronics - Standard one analog signal (4-20mA flow) and one digital output (RS485 Modbus RTU). The 4-
20mA will be enabled and the Mobus will be disabled from the factory. Output setting is flexible. OPTIONAL: A second
analog output signal (4-20mA temperature) can be requested at the time of order at no cost. OPTIONAL ANALOG
OUTPUTS: 0-5VDC or 0-10VDC. OPTIONAL DIGITAL OUTPUTS: HART or BACnet.
SSS - 316L stainless steel sensor. OPTIONAL - sensor with attenuating rod, sensor with particle sensor shield, or Hastelloy® C-
276 sensor
133 - 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable
DC24 - 24VDC
MW050 - Gas Temperature Range: Ambient to 50°C/122°F
S4049MTNZL - 3/8" SCH 40 Stainless Steel 316L x 6" Section - MNPT ends - Flow Nozzle
2RG - 2 Gas Ranges - 2 Curves
H2/N2 - HYDROGEN/NITROGEN calibration against our certified 0.05% accurate Primary Standard that is directly traceable to
NIST. Enhanced accuracy calibration is always optional.
CT2 - CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display);
Approved for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area
locations; Class I Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d
IIB+H2 IP66; Ex d IIB+H2 IP66; T2; Ta = 0°C to 50°C
MB - RS485 Modbus RTU - Read & Write & 4-20mA Flow Output. Optional: replace the 4-20mA with 0-5 VDC or 0-10 VDC
Output
EPI 8600MP SERIES HAZ AREA IN LINE STYLE MASS FLOW METER
8649MP - Hazardous Area In-line Style Flow Meter - 3/8" x 6"
INT - Integral Electronics - Standard one analog signal (4-20mA flow) and one digital output (RS485 Modbus RTU). The 4-
20mA will be enabled and the Mobus will be disabled from the factory. Output setting is flexible. OPTIONAL: A second
analog output signal (4-20mA temperature) can be requested at the time of order at no cost. OPTIONAL ANALOG
OUTPUTS: 0-5VDC or 0-10VDC. OPTIONAL DIGITAL OUTPUTS: HART or BACnet.
SSS - 316L stainless steel sensor. OPTIONAL - sensor with attenuating rod, sensor with particle sensor shield, or Hastelloy® C-
276 sensor
133 - 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable
DC24 - 24VDC
MW050 - Gas Temperature Range: Ambient to 50°C/122°F
S4049MTNZL - 3/8" SCH 40 Stainless Steel 316L x 6" Section - MNPT ends - Flow Nozzle
2RG - 2 Gas Ranges - 2 Curves
H2/N2 - HYDROGEN/NITROGEN calibration against our certified 0.05% accurate Primary Standard that is directly traceable to
NIST. Enhanced accuracy calibration is always optional.
CT2 - CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display);
Approved for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area
locations; Class I Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d
IIB+H2 IP66; Ex d IIB+H2 IP66; T2; Ta = 0°C to 50°C
MB - RS485 Modbus RTU - Read & Write & 4-20mA Flow Output. Optional: replace the 4-20mA with 0-5 VDC or 0-10 VDC
Output
Brand_Name:Eldridge
Process Connection Type:NPT-Male
Measurement Minimum:0
Output Communication Protocol:Multiple
Specifications
| Brand_Name | Eldridge |
| Process Connection Type | NPT-Male |
| Measurement Minimum | 0 |
| Output Communication Protocol | Multiple |
