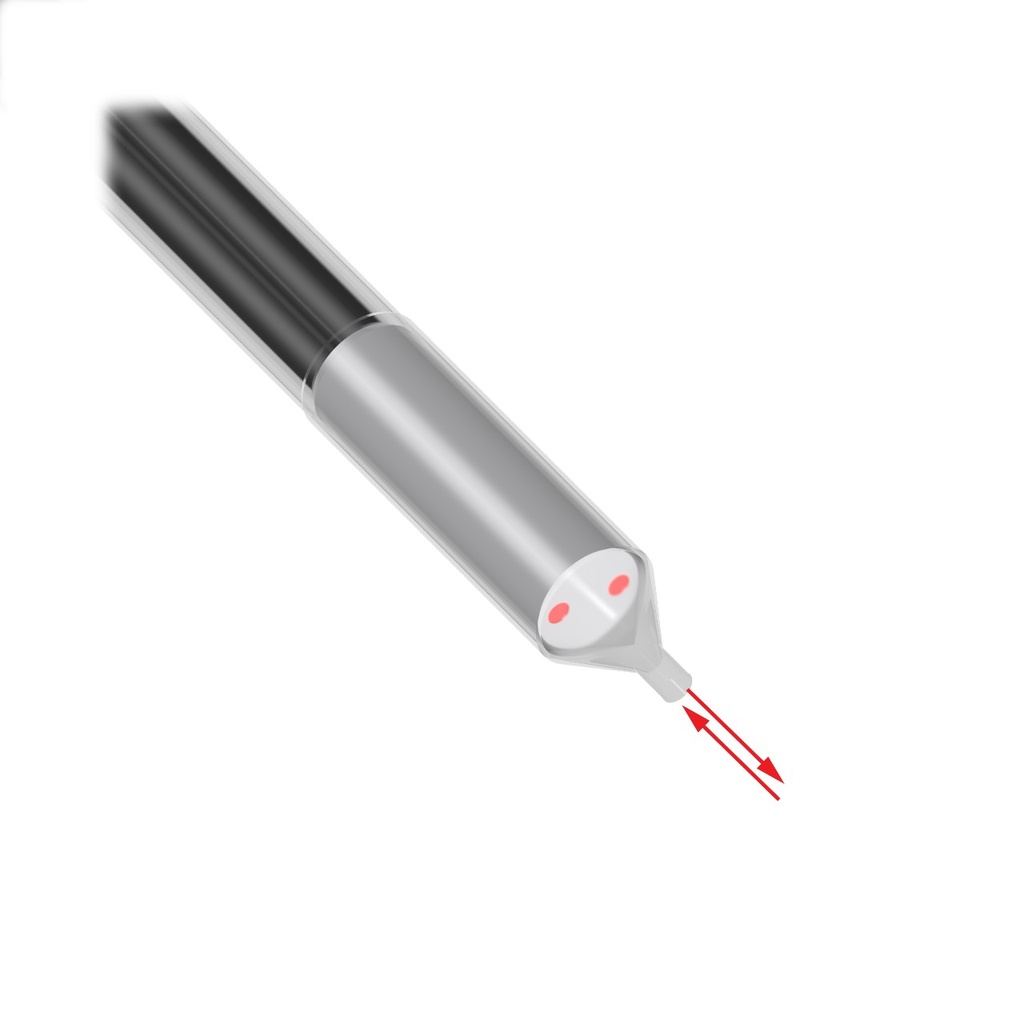

Plastic Fiber, Diffuse Reflective Core Dia.: 1 mm (PBE41UTMLLPMT8)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 86298
Weight: 0.3 lb(s)
Plastic Fiber, Diffuse Reflective Core Dia.: 1 mm
Features:
- Plastic Fiber, Diffuse Reflective Core Dia.: 1 mm
- Fiber Length 12 Inches Encapsulated Length 8 Inches Chemical Resistant, Free cut
Plastic Fiber, Diffuse Reflective Core Dia.: 1 mm (PBE41UTMLLPMT8)
Plastic Fiber, Diffuse Reflective Core Dia.: 1 mm
Measurement Maximum:0
Max Operating Temperature:85 °C
Measurement Minimum:0
Housing Style:Round
Sensing Mode (Detailed):Reflective
Sensing Mode (General):Diffuse
Feature: Chemical Resistant:Yes, Yes
Sensing End Segment 1:Encapsulated
Tariff Fiber Meters:.6 fbm
Min Bend Radius:25 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:6.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Specialty
Termination:Free Cut
Sensing End Material (Specific):FEP
Feature: Integrated Lens:Yes
Core Diameter:1 mm
Fiber Sheathing Material (Jacket):FEP
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:6.0 mm
Fiber Length:0.305 m
Fiber Optic Type:Plastic
Sensing End Segment 2:Specialty
Beam Exit:In-line
Feature: Liquid Level:Yes
Min Hinged Door Size:25 mm
Min Repeat Bending Endurance:5000
Country of Origin:JP
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Minimum Bend Radius:25 mm
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 85 °C |
| Measurement Minimum | 0 |
| Housing Style | Round |
| Sensing Mode (Detailed) | Reflective |
| Sensing Mode (General) | Diffuse |
| Feature: Chemical Resistant | Yes, Yes |
| Sensing End Segment 1 | Encapsulated |
| Tariff Fiber Meters | .6 fbm |
| Min Bend Radius | 25 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 6.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Specialty |
| Termination | Free Cut |
| Sensing End Material (Specific) | FEP |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1 mm |
| Fiber Sheathing Material (Jacket) | FEP |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 6.0 mm |
| Fiber Length | 0.305 m |
| Fiber Optic Type | Plastic |
| Sensing End Segment 2 | Specialty |
| Beam Exit | In-line |
| Feature: Liquid Level | Yes |
| Min Hinged Door Size | 25 mm |
| Min Repeat Bending Endurance | 5000 |
| Country of Origin | JP |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Minimum Bend Radius | 25 mm |
