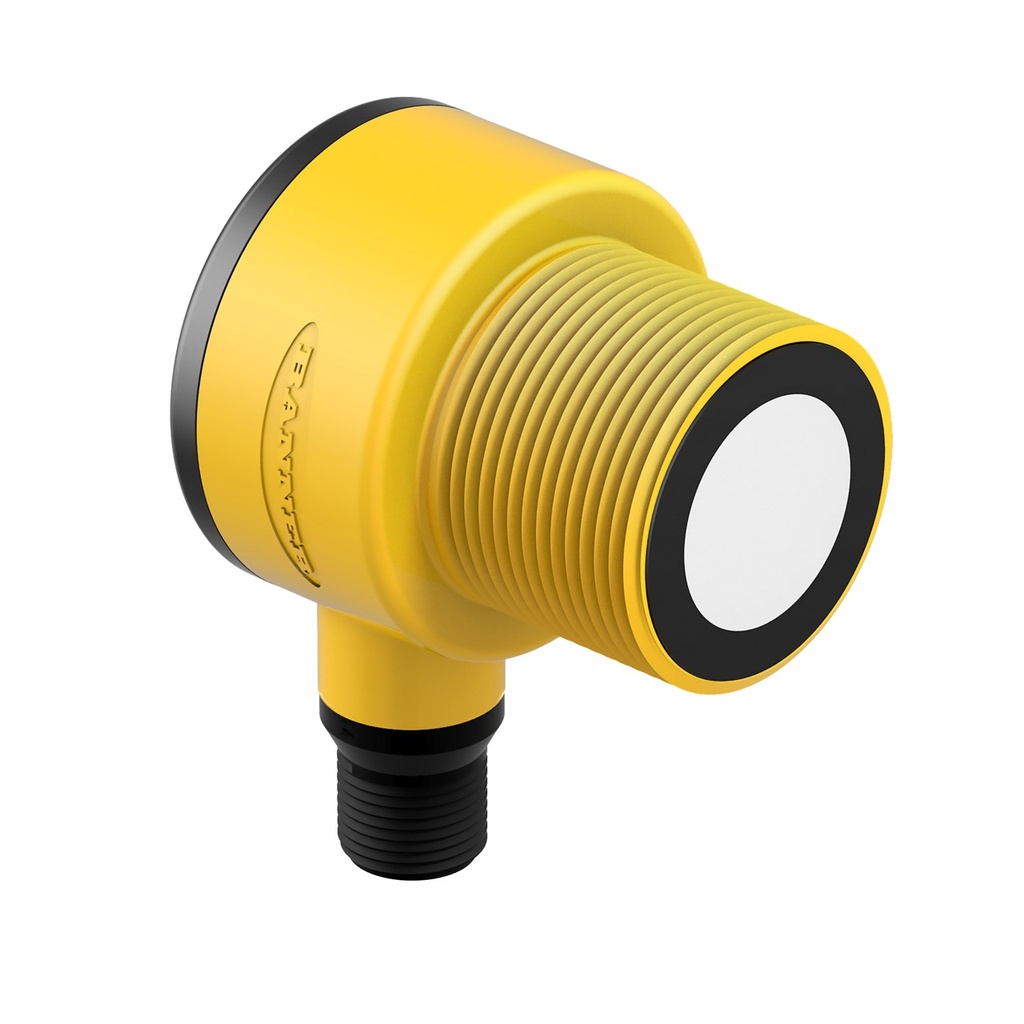

T30Ux Series W/ Dual Discrete Normally Closed (T30UXDPCQ8-85394)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 85394
Weight: 0.29 lb(s)
Features:
- T30UX Series w/ Dual Discrete Normally Closed; Outputs with Synchronized Timing using Grey Wire; Range: 300 mm to 3 m; Input: 10 to 30 V dc; Outputs: 2 Independent NC PNP Fixed Field Mode; Euro 5-pin Integral Quick-Disconnect
T30Ux Series W/ Dual Discrete Normally Closed (T30UXDPCQ8-85394)
Brand_Name:Banner
Max Off-State Leakage Current (µA):<200 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP)
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power/Current Consumption (exclusive of load):40 mA
Power Supply:10-30 VDC
Temperature Effect (mm/°C):0.02% of distance / °C
Delay at Power-Up:500 ms
Ingress Protection:IP67
Sensing Beam:Ultrasonic
Housing Style:Barrel
Max Sensing Distance:3000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Housing Material_:PBT
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: Washdown Rated:Yes
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Chemical Resistant:No
Number of Pins:4
Adjustments:Teach Button
Feature: Timing (Hold/Delay):No
Input/Output:Discrete
Barrel Diameter:30
Min Response Time:135 ms
Feature: Ultrasonic:Yes
Output Saturation Voltage PNP Outputs:< 3 V @ 100 mA
Max Discrete (Switched) Output (mA):100
Min Sensing Distance:300 mm
Min Window Size:10 mm
Discrete (Switched) Outputs:1 PNP
Max Measurement Range:1-20 m
Output Protection:Protected against short circuit conditions
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Output Saturation Voltage NPN Outputs:<1.6 V @ 100 mA
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Connection Type:Integral QD
Country of Origin:CN
NEMA / UL:NEMA 6
Barrel Thread:M30
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:No
Indicator Type:LED
Discrete Output Hysteresis:4 mm
Ultrasonic Frequency:114 kHz
Specifications
| Brand_Name | Banner |
| Max Off-State Leakage Current (µA) | <200 µA @ 30 VDC (NPN) / <10 µA @ 30 VDC (PNP) |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power/Current Consumption (exclusive of load) | 40 mA |
| Power Supply | 10-30 VDC |
| Temperature Effect (mm/°C) | 0.02% of distance / °C |
| Delay at Power-Up | 500 ms |
| Ingress Protection | IP67 |
| Sensing Beam | Ultrasonic |
| Housing Style | Barrel |
| Max Sensing Distance | 3000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Housing Material_ | PBT |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: Washdown Rated | Yes |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Chemical Resistant | No |
| Number of Pins | 4 |
| Adjustments | Teach Button |
| Feature: Timing (Hold/Delay) | No |
| Input/Output | Discrete |
| Barrel Diameter | 30 |
| Min Response Time | 135 ms |
| Feature: Ultrasonic | Yes |
| Output Saturation Voltage PNP Outputs | < 3 V @ 100 mA |
| Max Discrete (Switched) Output (mA) | 100 |
| Min Sensing Distance | 300 mm |
| Min Window Size | 10 mm |
| Discrete (Switched) Outputs | 1 PNP |
| Max Measurement Range | 1-20 m |
| Output Protection | Protected against short circuit conditions |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Output Saturation Voltage NPN Outputs | <1.6 V @ 100 mA |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Connection Type | Integral QD |
| Country of Origin | CN |
| NEMA / UL | NEMA 6 |
| Barrel Thread | M30 |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | No |
| Indicator Type | LED |
| Discrete Output Hysteresis | 4 mm |
| Ultrasonic Frequency | 114 kHz |
