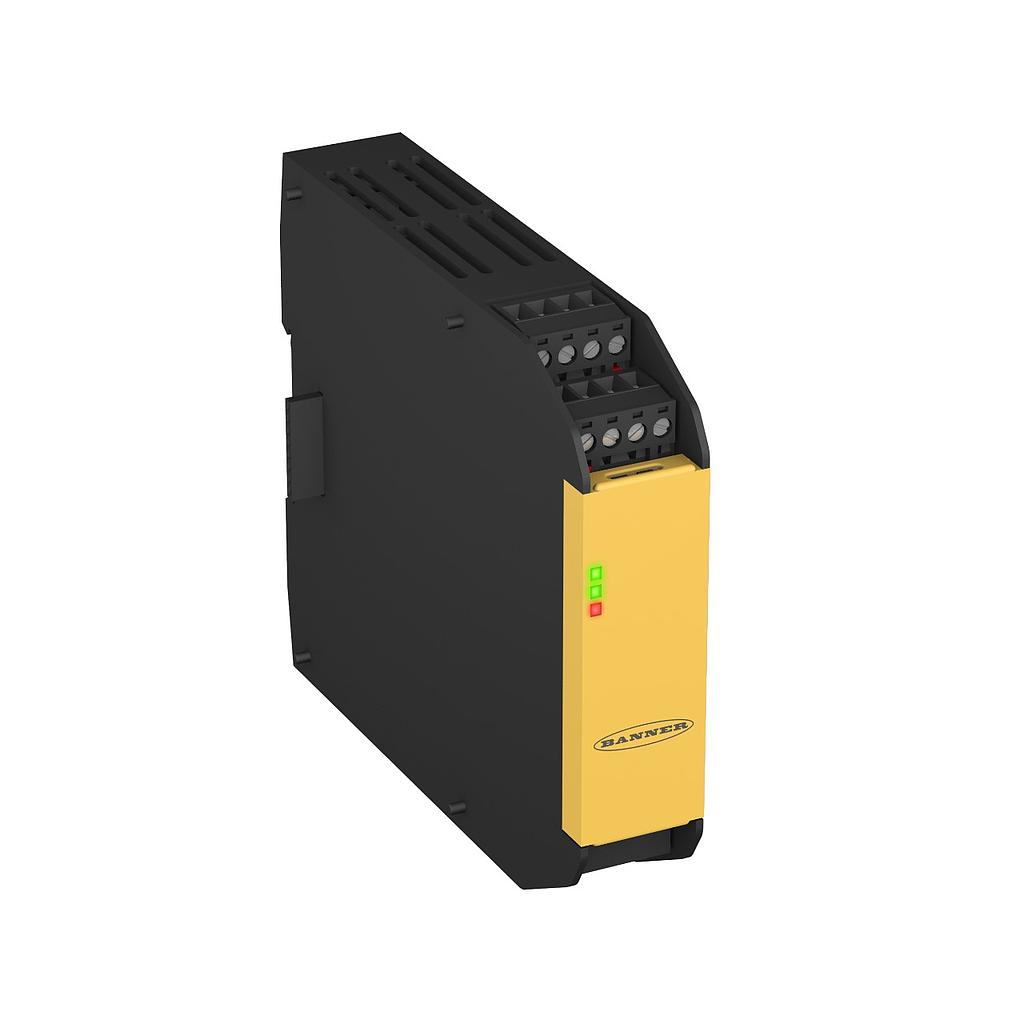

Safety Controller Expansion Module: Relay Output Module (XS1RO)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 85074
Weight: 0.38 lb(s)
Features:
- Safety Controller Expansion Module: Relay Output Module
- Safety Outputs: 2 NO, 6 Amps
- Aux Outputs: 1 NC, 2.5 Amps
- Used with XS26-2 Safety Controllers
Safety Controller Expansion Module: Relay Output Module (XS1RO)
Measurement Maximum:0
Max Operating Temperature:55 °C
Power Consumption:0.125 A (outputs on)
Measurement Minimum:0
Ingress Protection:IP20
Device Type:Safety Controller
Safe Output Rating:Relay - 2 NO: 6A; 1 NC: 2.5A
Safety Module Type:Output Module
Independently Controlled Safe Outputs:1
PL Rating:e
SISTEMA:PFHd = 7.6 x 10-10
Relative Humidity:90% @ 50 °C
Vibration:9-150 Hz at 1g occasional/0.5g continuous
Feature: LCD Display:No
SIL Rating:3
Safety Category Rating:4
Terminal Type:Screw
Response Time:Other
Non Safe Output Configuration:1 NC
Country of Origin:US
Electrical Life:50,000 @ full resistive load
Feature: Expandable:Yes
Feature: Gate Switch (NC/NC) Input:No
Feature: Gate Switch (NC/NO) Input:No
Feature: Gate Switch (OSSD) Input:No
Feature: Light Curtains/Scanner with EDM Input:No
Feature: Light Curtains/Scanner without EDM Input:No
Feature: In-Series Diagnostics:No
Mechanical Life:40 mil
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 55 °C |
| Power Consumption | 0.125 A (outputs on) |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Device Type | Safety Controller |
| Safe Output Rating | Relay - 2 NO: 6A; 1 NC: 2.5A |
| Safety Module Type | Output Module |
| Independently Controlled Safe Outputs | 1 |
| PL Rating | e |
| SISTEMA | PFHd = 7.6 x 10-10 |
| Relative Humidity | 90% @ 50 °C |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Feature: LCD Display | No |
| SIL Rating | 3 |
| Safety Category Rating | 4 |
| Terminal Type | Screw |
| Response Time | Other |
| Non Safe Output Configuration | 1 NC |
| Country of Origin | US |
| Electrical Life | 50,000 @ full resistive load |
| Feature: Expandable | Yes |
| Feature: Gate Switch (NC/NC) Input | No |
| Feature: Gate Switch (NC/NO) Input | No |
| Feature: Gate Switch (OSSD) Input | No |
| Feature: Light Curtains/Scanner with EDM Input | No |
| Feature: Light Curtains/Scanner without EDM Input | No |
| Feature: In-Series Diagnostics | No |
| Mechanical Life | 40 mil |
