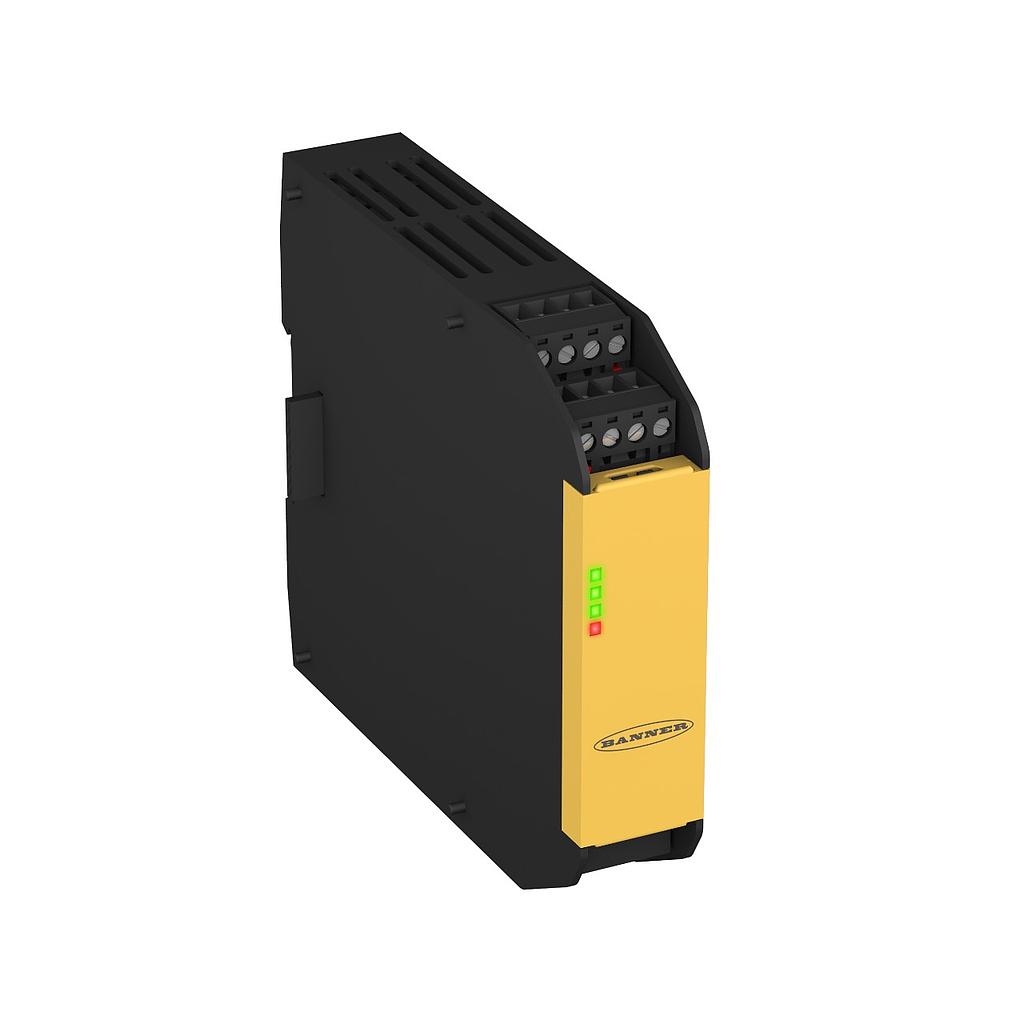

Safety Controller Expansion Module: Solid State Output Module (XS2SO)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 85072
Weight: 0.33 lb(s)
Features:
- Safety Controller Expansion Module: Solid State Output Module
- 2 pairs of PNP Safety Outputs (.75 Amp each)
- Used with XS26-2 Safety Controllers
Safety Controller Expansion Module: Solid State Output Module (XS2SO)
Measurement Maximum:0
Max Operating Temperature:55 °C
Power Consumption:3.075 A (external load maximum)
Measurement Minimum:0
Ingress Protection:IP20
Device Type:Safety Controller
Safe Output Rating:OSSD 0.75 A max. @ 24 VDC
Supply Voltage:24 VDC +/- 20%
Safety Module Type:Output Module
Independently Controlled Safe Outputs:4
PL Rating:e
SISTEMA:PFHd = 5.8 x 10-10
Relative Humidity:90% @ 50 °C
Vibration:9-150 Hz at 1g occasional/0.5g continuous
Feature: LCD Display:No
SIL Rating:3
Safety Category Rating:4
Terminal Type:Screw
Response Time:Other
Non Safe Output Configuration:Up to 4 PNP
Country of Origin:US
Feature: Expandable:Yes
Feature: Gate Switch (NC/NC) Input:No
Feature: Gate Switch (NC/NO) Input:No
Feature: Gate Switch (OSSD) Input:No
Feature: Light Curtains/Scanner with EDM Input:No
Feature: Light Curtains/Scanner without EDM Input:No
Feature: In-Series Diagnostics:No
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 55 °C |
| Power Consumption | 3.075 A (external load maximum) |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Device Type | Safety Controller |
| Safe Output Rating | OSSD 0.75 A max. @ 24 VDC |
| Supply Voltage | 24 VDC +/- 20% |
| Safety Module Type | Output Module |
| Independently Controlled Safe Outputs | 4 |
| PL Rating | e |
| SISTEMA | PFHd = 5.8 x 10-10 |
| Relative Humidity | 90% @ 50 °C |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Feature: LCD Display | No |
| SIL Rating | 3 |
| Safety Category Rating | 4 |
| Terminal Type | Screw |
| Response Time | Other |
| Non Safe Output Configuration | Up to 4 PNP |
| Country of Origin | US |
| Feature: Expandable | Yes |
| Feature: Gate Switch (NC/NC) Input | No |
| Feature: Gate Switch (NC/NO) Input | No |
| Feature: Gate Switch (OSSD) Input | No |
| Feature: Light Curtains/Scanner with EDM Input | No |
| Feature: Light Curtains/Scanner without EDM Input | No |
| Feature: In-Series Diagnostics | No |
