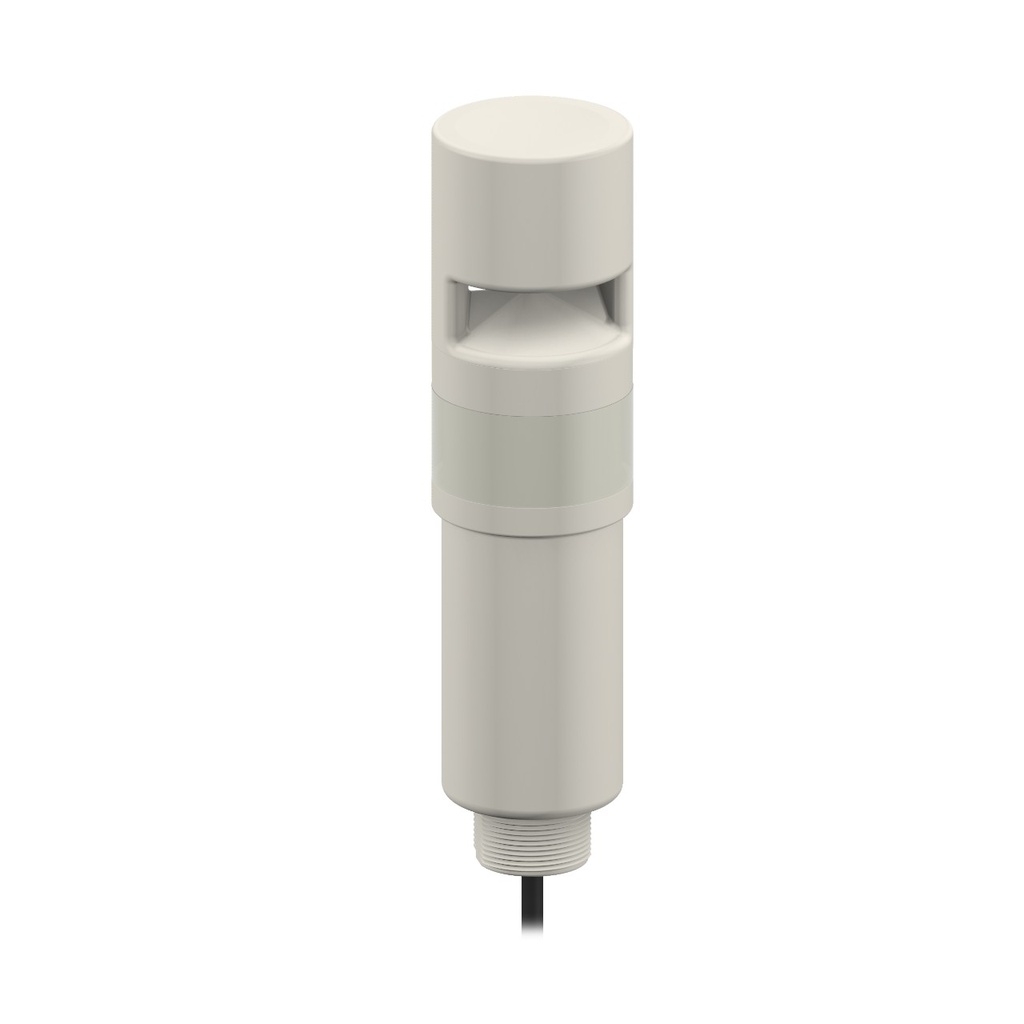

High Intensity Tower Light (TL50HZRAOS4CQP)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 84621
Weight: 0.92 lb(s)
High Intensity Tower Light
Features:
- High Intensity Tower Light
- Gray Housing: 1-Color Sealed
- Omni-directional Staccato Audible Indicator
- Voltage: 100-240 V ac
- Environmental Rating: IP67
- Colors: Red
- Micro 150 mm (6 in) PVC Pigtail
High Intensity Tower Light (TL50HZRAOS4CQP)
High Intensity Tower Light
Power:AC
Feature: Display:No
Feature: Display Lighting:No
Measurement Maximum:0
Max Current Color:60 mA
Max Current - Audible Alarm (mA):45 mA
Min Operating Temperature:-20 °C
Max Operating Temperature:50 °C
Power Source:VAC
Measurement Minimum:0
Ingress Protection:IP67, IP67
Housing Style:Base Mount - Tower
Max Relative Humidity:95% @ 50 °C (NC)
Housing Material_:ABS
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:50.0 x 216.8 mm
Feature: Wireless:No
Feature: Indication:Yes
Max Audible Intensity:99 dB @ 1 m
Supply Voltage:100-240 VAC
Feature: Quick Disconnect:Yes
Lumens Color 1:32
Min Audible Intensity @ 1m:99 dB
Color Technology:Standard LED
Feature: Audible:Yes
Color Option 1:Red
Color 1 - Wavelength/Color Temp/Coordinates:625 nm
Housing Color:Gray
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:1/2 in. (Micro)
Audible Operating Frequency (kHz):2.1
Number of Colors / Segments:1
Product Size (mm):50 mm
Number of Input Pins/Conductors:4
Input Type:AC
Max Op. Relative NC Humidity:95% @ 50 °C
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M30 x 1.5
Max Input Response Time (ms):500 ms
Feature: Chemical Resistant:No
Audible Alarm Type:Staccato
Storage Temp:-40 to 70 °C
Number of Tower Light Segments:2
Indication Intensity:High Brightness
Connection Type:Pigtail QD
Country of Origin:US
NEMA / UL:NEMA/UL 13
Cord/Cable Length:0.15 m
Specifications
| Power | AC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Measurement Maximum | 0 |
| Max Current Color | 60 mA |
| Max Current - Audible Alarm (mA) | 45 mA |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VAC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67, IP67 |
| Housing Style | Base Mount - Tower |
| Max Relative Humidity | 95% @ 50 °C (NC) |
| Housing Material_ | ABS |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 50.0 x 216.8 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Max Audible Intensity | 99 dB @ 1 m |
| Supply Voltage | 100-240 VAC |
| Feature: Quick Disconnect | Yes |
| Lumens Color 1 | 32 |
| Min Audible Intensity @ 1m | 99 dB |
| Color Technology | Standard LED |
| Feature: Audible | Yes |
| Color Option 1 | Red |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Housing Color | Gray |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | 1/2 in. (Micro) |
| Audible Operating Frequency (kHz) | 2.1 |
| Number of Colors / Segments | 1 |
| Product Size (mm) | 50 mm |
| Number of Input Pins/Conductors | 4 |
| Input Type | AC |
| Max Op. Relative NC Humidity | 95% @ 50 °C |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M30 x 1.5 |
| Max Input Response Time (ms) | 500 ms |
| Feature: Chemical Resistant | No |
| Audible Alarm Type | Staccato |
| Storage Temp | -40 to 70 °C |
| Number of Tower Light Segments | 2 |
| Indication Intensity | High Brightness |
| Connection Type | Pigtail QD |
| Country of Origin | US |
| NEMA / UL | NEMA/UL 13 |
| Cord/Cable Length | 0.15 m |
