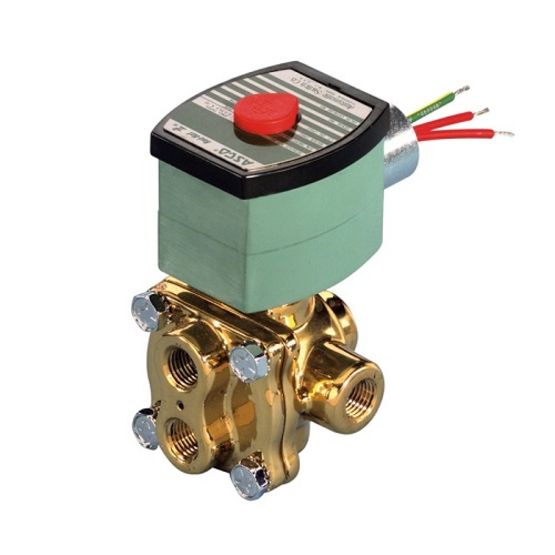

Representative photo. Please check item description for details.
342 Series 4-Way Solenoid Valve (8342), 1/4" NPT, 120 VAC, Stainless Steel, 4 Way
Manufacturer: Asco LP
Mfg Product Code: 8342C022-010
Weight: 2.34 lb(s)
On Hand: 0
Solenoid Valve, 1/4" NPT, 120 VAC, 4 Way
The ASCO Series 342-S, also known as 8342, is a line of high-flow, slide-style 4-way valves available with single or dual solenoids. Its direct-acting operation and high-flow construction make it ideal for analytic and diagnostic equipment, biofuels, dust collector systems, heating equipment, and refining applications.
Features
- Body Material: Stainless Steel
- Valve Function: 4 way
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid
- Voltage & Frequency: 120 AC with 60 Hz
- Kit Number: 310189
- Coil Class: HB
- Coil Number: 272814-132-K
- Watt Rating: 20.1 W
- Item Status: Active
- Carton Note: 1/4 X 3/16 4W S.S. 20.1/H AC:
342 Series 4-Way Solenoid Valve (8342), 1/4" NPT, 120 VAC, Stainless Steel, 4 Way
Solenoid Valve, 1/4" NPT, 120 VAC, 4 Way
Brand_Name:Asco
Orifice Size:3/16 in
Mounting Direction:Any
Process Connection Type:NPT
Max Operating Temperature:125 °F
Process Connection Size:1/4"
Input Voltage:120 VAC
Function:4 Way
Body Material:SS
NEMA / UL:NEMA 1/2/3/3S/4/4X
Specifications
| Brand_Name | Asco |
| Orifice Size | 3/16 in |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Max Operating Temperature | 125 °F |
| Process Connection Size | 1/4" |
| Input Voltage | 120 VAC |
| Function | 4 Way |
| Body Material | SS |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
