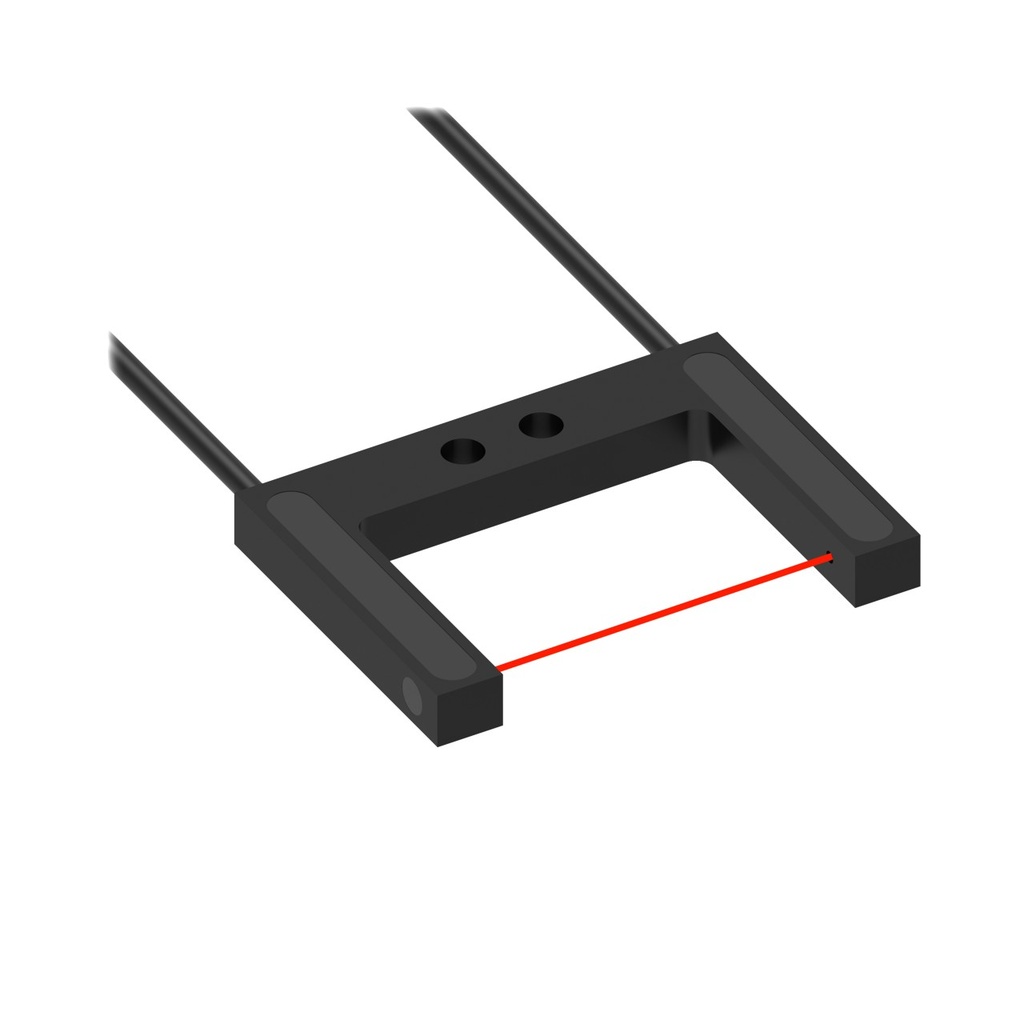

Plastic Fiber, Opposed Mode (PDIS48UM32)
Max Operating Temperature:70 °C
Housing Style:Slot
Sensing Mode (Detailed):Slot
Sensing Mode (General):Opposed
Feature: Chemical Resistant:No
Sensing End Segment 1:Slot
Tariff Fiber Meters:4.8 fbm
Min Bend Radius:2 mm
Feature: Vacuum Feed Through:None
Feature: Small Object Detection:No
Fiber Sensing End Size:37.9 x 32.0 mm
Feature: Retractile:No
Fiber Sensing End Tip:Slot
Termination:Free Cut
Sensing End Material (Specific):Polyethylene
Feature: Integrated Lens:Yes
Core Diameter:1 mm
Fiber Sheathing Material (Jacket):Polyethylene
Feature: Extended Range:No
Feature: Flex Relief:No
Termination Type:Plastic Fiber Sensors
Fiber Sensing End Size - Mounting Area:37.9 x 32.0 mm
Fiber Length:2.438 m
Fiber Optic Type:Plastic
Beam Exit:Right Angle
Feature: Liquid Level:No
Min Hinged Door Size:2 mm
Min Repeat Bending Endurance:1000
Country of Origin:JP
Max Distance: DF-G1:No Data
Max Distance: DF-G3:No Data
Max Distance: DF-G2:No Data
Slot Width:32 mm
Minimum Bend Radius:2 mm
Specifications
| Max Operating Temperature | 70 °C |
| Housing Style | Slot |
| Sensing Mode (Detailed) | Slot |
| Sensing Mode (General) | Opposed |
| Feature: Chemical Resistant | No |
| Sensing End Segment 1 | Slot |
| Tariff Fiber Meters | 4.8 fbm |
| Min Bend Radius | 2 mm |
| Feature: Vacuum Feed Through | None |
| Feature: Small Object Detection | No |
| Fiber Sensing End Size | 37.9 x 32.0 mm |
| Feature: Retractile | No |
| Fiber Sensing End Tip | Slot |
| Termination | Free Cut |
| Sensing End Material (Specific) | Polyethylene |
| Feature: Integrated Lens | Yes |
| Core Diameter | 1 mm |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Feature: Extended Range | No |
| Feature: Flex Relief | No |
| Termination Type | Plastic Fiber Sensors |
| Fiber Sensing End Size - Mounting Area | 37.9 x 32.0 mm |
| Fiber Length | 2.438 m |
| Fiber Optic Type | Plastic |
| Beam Exit | Right Angle |
| Feature: Liquid Level | No |
| Min Hinged Door Size | 2 mm |
| Min Repeat Bending Endurance | 1000 |
| Country of Origin | JP |
| Max Distance: DF-G1 | No Data |
| Max Distance: DF-G3 | No Data |
| Max Distance: DF-G2 | No Data |
| Slot Width | 32 mm |
| Minimum Bend Radius | 2 mm |
