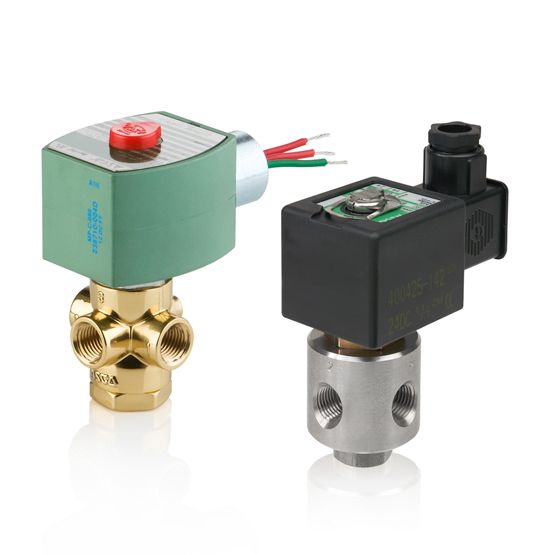

320 Series Direct-Acting General Service Solenoid Valve (8320), 1/4" NPT, 24 VDC, Brass, 3 Way-3/2 U
Manufacturer: Asco LP
Mfg Product Code: 8320G174MODC24/DCD
Weight: 1.5 lb(s)
Solenoid Valve, 1/4" NPT, 24 VDC, 3 Way-3/2 U
The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 0.12 / 0.10
- Function: 3 way - 3/2 Universal
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 1.50 lbs
- Kit Number: 302201-MO
- Coil Class: F
- Coil Number: 238710-006-D
- Min to Max Ambient Temperature: 32 - 104 °F
- Orifice Size: 3/32 in
- Voltage: 24 Volts DC
- Watt Rating: 11.6 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 3/32 3U BRASS 11.6/F DC
- Seating Elastomer: NBR
- Mounting Direction: Any:
320 Series Direct-Acting General Service Solenoid Valve (8320), 1/4" NPT, 24 VDC, Brass, 3 Way-3/2 U
Solenoid Valve, 1/4" NPT, 24 VDC, 3 Way-3/2 U
Valve: Actuation:Solenoid - Direct Acting
Brand_Name:Asco
Media:Air, Inert Gas, Light Oil, Water
Flow (Cv / Kv):0.12 / 0.10
Mounting Direction:Any
Process Connection Type:NPT
Flow Coefficient:0.12 Cv
Process Connection Size:1/4"
Input Voltage:24 VDC
Function:3 Way 3/2 Universal
Coil Class:F
Body Material:Brass
Lead Length:18 in
Seating Elastomer:NBR
Seal Material:NBR
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid - Direct Acting |
| Uncategorized | |
|---|---|
| Brand_Name | Asco |
| Media | Air, Inert Gas, Light Oil, Water |
| Flow (Cv / Kv) | 0.12 / 0.10 |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Flow Coefficient | 0.12 Cv |
| Process Connection Size | 1/4" |
| Input Voltage | 24 VDC |
| Function | 3 Way 3/2 Universal |
| Coil Class | F |
| Body Material | Brass |
| Lead Length | 18 in |
| Seating Elastomer | NBR |
| Seal Material | NBR |
