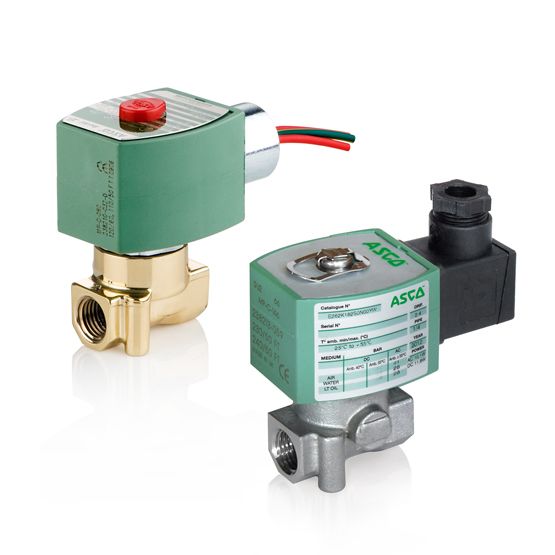

262 Series 2-Way Solenoid Valve, 1/4" NPT, 480 VAC, Brass, 2 Way-2/2 NC

Manufacturer: Asco LP

Mfg Product Code: 8262H202AC480/60D

Weight: 0.01 lb(s)

Solenoid Valve, 1/4" NPT, 120 VAC, 2 Way-2/2 NC

The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.

Features

• Body Material: Brass
• Flow (Cv) / Flow (Kv): 0.52 / 0.44
• Function: 2 way - 2/2 Normally Closed
• Pipe/Port Type & Size: NPT 1/4
• Valve Actuation: Solenoid - Direct Acting
• Media: Air, Inert Gas, Water, Light Oil
• Product Weight: 0.55 lbs
• Order Code: 22002
• Kit Number: 323593
• Coil Class: FT
• Coil Number: 238610-032-D
• Min to Max Ambient Temperature: -13 - 131 °F
• Min to Max Fluid Temperature: -13 - 180 °F
• Orifice Size: 5/32 in
• Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
• Watt Rating: 10.1 W
• Item Status: Active
• Lead Length: 18 inch
• Carton Note: 1/4 X 5/32 2NC BRASS 10.1/F AC
• Holding Current (VA): 25
• Seating Elastomer: NBR
• Mounting Direction: Any:
