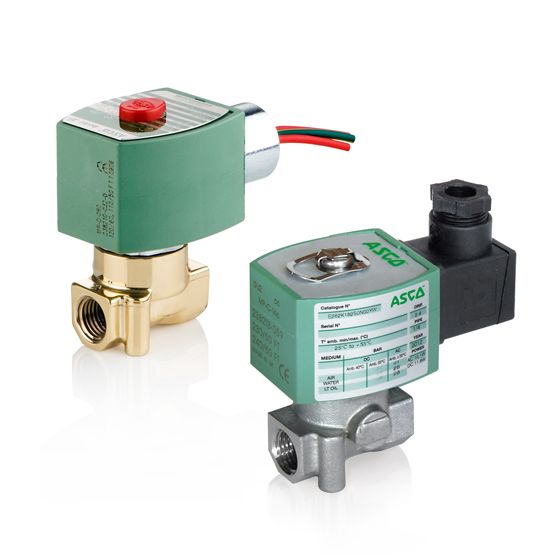

262 Series 2-Way Solenoid Valve, 1/4" NPT, 24 VDC, Brass, 2 Way-2/2 NC
Manufacturer: Asco LP
Mfg Product Code: 8262H090DC24/DCD
Weight: 0.44 lb(s)
Solenoid Valve, 1/4" NPT, 240 VDC, 2 Way-2/2 NC
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Body Material: Brass
- Flow (Cv): 0.88
- Valve Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid
- Voltage: 240DC
- Product Weight: 0.44 lbs
- Kit Number: 323587
- Coil Class: HT
- Coil Number: 238510-054-D
- Min to Max Ambient Temperature: -13 - 104 deg;F
- Min to Max Fluid Temperature: -13 - 180 °F
- Orifice Size: 9/32 in
- Watt Rating: 10.6 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 9/32 2NC BRASS 10.6/H DC
- Seating Elastomer: NBR
- Mounting Direction: ANY:
262 Series 2-Way Solenoid Valve, 1/4" NPT, 24 VDC, Brass, 2 Way-2/2 NC
Solenoid Valve, 1/4" NPT, 240 VDC, 2 Way-2/2 NC
Valve: Actuation:Solenoid
Brand_Name:Asco
Mounting Direction:Any
Process Connection Type:NPT
Flow Coefficient:0.88 Cv
Process Connection Size:1/4"
Input Voltage:240 VDC
Watts:10.6
Function:2 Way 2/2 Normally Closed
Coil Class:HT
Body Material:Brass
Lead Length:18 in
NEMA / UL:NEMA 1/2/3/3S/4/4X
Seating Elastomer:NBR
Seal Material:NBR
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid |
| Uncategorized | |
|---|---|
| Brand_Name | Asco |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Flow Coefficient | 0.88 Cv |
| Process Connection Size | 1/4" |
| Input Voltage | 240 VDC |
| Watts | 10.6 |
| Function | 2 Way 2/2 Normally Closed |
| Coil Class | HT |
| Body Material | Brass |
| Lead Length | 18 in |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
| Seating Elastomer | NBR |
| Seal Material | NBR |
