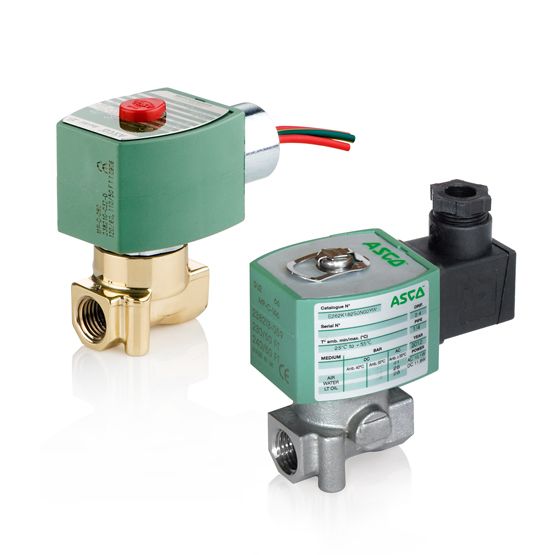

262 Series 2-Way Solenoid Valve, 1/4" NPT, 110 VAC, Stainless Steel, 2 Way-2/2 NC
Manufacturer: Asco LP
Mfg Product Code: 8262H080AC120/60,110/50D
Weight: 1.01 lb(s)
Solenoid Valve, 1/4" NPT, 110 VAC, 2 Way-2/2 NC
The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Body Material: Stainless Steel
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid
- Product Weight: 1.01 lbs
- Kit Number: 323583
- Coil Class: FT
- Coil Number: 238210-032-D
- Voltage & Frequency: 120, 110 Volts AC with 50/60 Hz
- Watt Rating: 6.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 3/64 2NC S.S. 6.1/F AC
- Voltage: 120 V AC; 110 V AC
- Frequency: 50 Hz; 60 Hz
- Watt Rating: 6.1 W
- Coil Class: FT
- Coil Number: 238210-032-D
- Kit Number: 323583
- Product Weight: 1.01 lb:
262 Series 2-Way Solenoid Valve, 1/4" NPT, 110 VAC, Stainless Steel, 2 Way-2/2 NC
Solenoid Valve, 1/4" NPT, 110 VAC, 2 Way-2/2 NC
Valve: Actuation:Solenoid
Brand_Name:Asco
Orifice Size:3/64 in
Mounting Direction:Any
Process Connection Type:NPT
Max Operating Temperature:140 °F
Process Connection Size:1/4"
Wetted Material:Stainless Steel
Input Voltage:120/110 VAC
Watts:6.1
Function:2 Way 2/2 Normally Closed
Coil Class:FT
Frequency:50/60 Hz
Body Material:SS
Lead Length:18 in
NEMA / UL:NEMA 1/2/3/3S/4/4X
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid |
| Uncategorized | |
|---|---|
| Brand_Name | Asco |
| Orifice Size | 3/64 in |
| Mounting Direction | Any |
| Process Connection Type | NPT |
| Max Operating Temperature | 140 °F |
| Process Connection Size | 1/4" |
| Wetted Material | Stainless Steel |
| Input Voltage | 120/110 VAC |
| Watts | 6.1 |
| Function | 2 Way 2/2 Normally Closed |
| Coil Class | FT |
| Frequency | 50/60 Hz |
| Body Material | SS |
| Lead Length | 18 in |
| NEMA / UL | NEMA 1/2/3/3S/4/4X |
