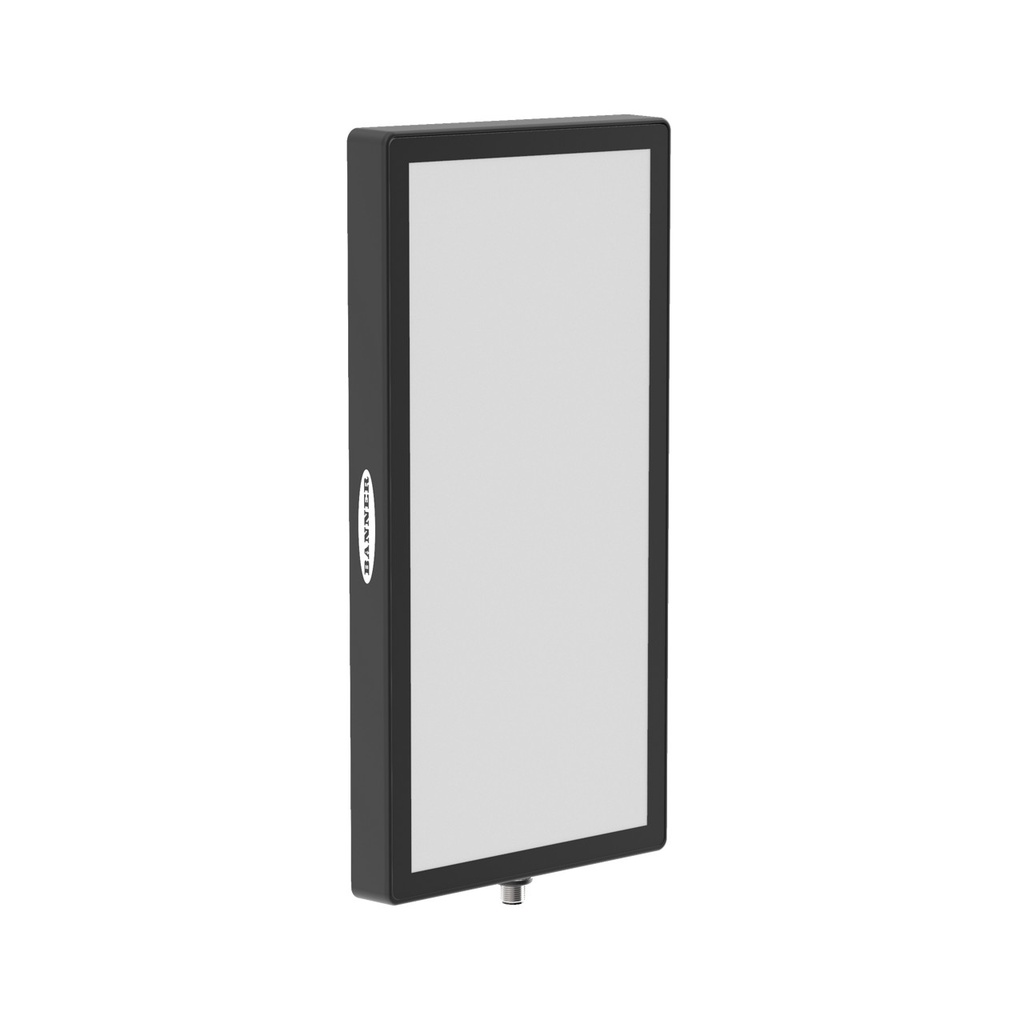

Vision Light - 300x150mm Backlight IP67 (LEDRB300X150PW2-XQ)
Vision Light 300x150mm Backlight IP67
Power:DC
Measurement Maximum:0
Max Current Color:2200 mA
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Rectangular
Device Type:Backlight
Housing Material_:Thermoplastic, Thermoplastic
Physical Dimensions:180.1 x 356.5 x 25.5 mm
Supply Voltage:24 V DC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Quick Disconnect Type:M12
Number of Input Pins/Conductors:5
Color:Red
QD Type/Cable Length:M12; requires mating cordset
Connection Type:Integral QD, Integral QD
Country of Origin:US
Specifications
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 2200 mA |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Rectangular |
| Device Type | Backlight |
| Housing Material_ | Thermoplastic, Thermoplastic |
| Physical Dimensions | 180.1 x 356.5 x 25.5 mm |
| Supply Voltage | 24 V DC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Quick Disconnect Type | M12 |
| Number of Input Pins/Conductors | 5 |
| Color | Red |
| QD Type/Cable Length | M12; requires mating cordset |
| Connection Type | Integral QD, Integral QD |
| Country of Origin | US |
