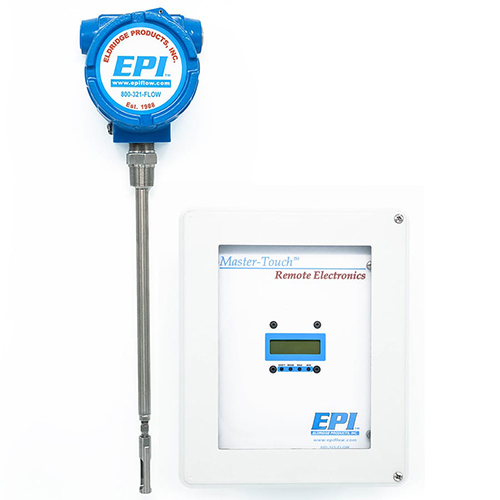

EPI MPNH Series Insertion Air Flow Meter w/Remote Display
Manufacturer: Eldridge Products - EPI
Mfg Product Code: 8240MPNH-REM-SSS-133- DC24-MW150-4012NA-1RC-AIR-CSA/CUS-MB
Weight: 5.0 lb(s)
8240MPNH - Ordinary Locations Insertion Style Flow Meter- 1/2" OD Probe
REM - Remote Electronics for use in Ordinary Locations ONLY - Class 2252-03 & 2252-83 for
Process Control Equipment: Standard analog signal (4-20mA flow) and one digital output
(RS485 Modbus RTU).
SSS- 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod
with dielectric glass coating bonded by epoxy buffer.
133- 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light
readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale,
Temperature, Raw mW Cooling
DC24 - 24VCD
MW150- Gas Temperature Range: Ambient to 150°C/302°F
4012NA - 1/2" OD x 12" Probe
1RC - 1 Gas Range
AIR - AIR calibration against our certified 0.05% accurate Primary Standard that is directly
traceable to NIST. Enhanced accuracy calibration is always optional.
CSA/CUS - Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control
Equipment in Ordinary Locations Only CSA Enclosures Type 4X, IP66, CE Compliant
MB - RS485 Modbus RTU - Read & Write
EPI MPNH Series Insertion Air Flow Meter w/Remote Display
8240MPNH - Ordinary Locations Insertion Style Flow Meter- 1/2" OD Probe
REM - Remote Electronics for use in Ordinary Locations ONLY - Class 2252-03 & 2252-83 for
Process Control Equipment: Standard analog signal (4-20mA flow) and one digital output
(RS485 Modbus RTU).
SSS- 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod
with dielectric glass coating bonded by epoxy buffer.
133- 2-line backlit Liquid Crystal Transflective Display - excellent low light and high light
readability; 4-button programmable keypad; OUTPUT: Flow, Total Flow, % of Full Scale,
Temperature, Raw mW Cooling
DC24 - 24VCD
MW150- Gas Temperature Range: Ambient to 150°C/302°F
4012NA - 1/2" OD x 12" Probe
1RC - 1 Gas Range
AIR - AIR calibration against our certified 0.05% accurate Primary Standard that is directly
traceable to NIST. Enhanced accuracy calibration is always optional.
CSA/CUS - Certified to CSA/CUS Standards: Class 2252-03 & 2252-83 for Process Control
Equipment in Ordinary Locations Only CSA Enclosures Type 4X, IP66, CE Compliant
MB - RS485 Modbus RTU - Read & Write
Brand_Name:Eldridge
Measurement Minimum:0
Input Communication Protocol:4-20 mA / HART
Output Communication Protocol:4-20 mA / HART
Input Voltage:24 VDC
Ingress Protection:IP66
NEMA / UL:NEMA 4X
Specifications
| Brand_Name | Eldridge |
| Measurement Minimum | 0 |
| Input Communication Protocol | 4-20 mA / HART |
| Output Communication Protocol | 4-20 mA / HART |
| Input Voltage | 24 VDC |
| Ingress Protection | IP66 |
| NEMA / UL | NEMA 4X |
