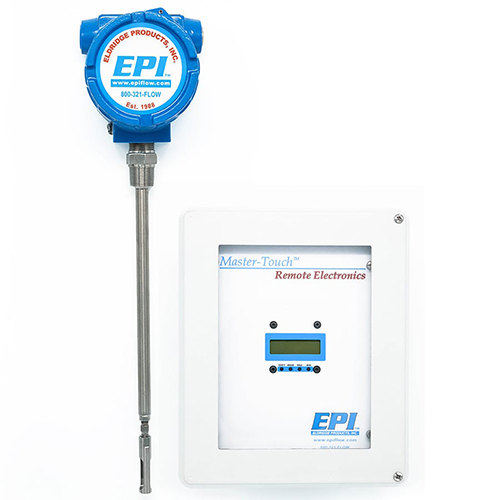

EPI - 8240MP Series Insertion Style Flow Meter

Manufacturer: Eldridge Products - EPI

Mfg Product Code: 8240MP-ACEX-SSS-133-AC115-MW075-4012NA-1RC-AIR-CT2-MB/HT-CBL5-TPM0808T

Weight: 0.01 lb(s)

[8240MP] - Hazardous Area Insertion Style Flow Meter - 1/2" OD Probe
[ACEX] - Remote Electronics non-incendive and explosion proof enclosure for AC input power for use in Hazardous Locations - standard outputs: 4-20mA or 0-5VDC (flow and temperature), RS485 Modbus RTU. Comes with 2" pipe mounting bracket assembly
[SSS] - 316L stainless steel thermal wells - 50Ω reference grade platinum winding on ceramic rod with dielectric glass coating bonded by epoxy buffer
[133] - line backlit Liquid Crystal Transflective Display - excellent low light and high light readability; 4-button programmable key-pad; OUTPUT: Flow, Total Flow, % of Full Scale, Temperature, Raw mW Cooling
[AC115] - 115 VAC 50/60 Hz
[MW075] - Gas Temperature Range: Ambient to 75°C/167°F
[4012NA] - 1/2" OD x 12" Probe
[1RC] - 1 Gas Range
[AIR] - AIR calibration against our certified 0.05% accurate Primary Standard that is directly traceable to NIST. Enhanced accuracy calibration is always optional.
[CT2] - CT2: CSA/CUS T2 (300°C) Approved Instrument for Flow Element/Flow Transmitter (FE/FT or FIT with display); Approved for remote electronics (FIT or FT) only with remote ACEX or DCEX feature; For use in hazardous area locations; Class I Division 1, Group B, C, D; Class II Group E, F, G; Class III; Enclosure Type 4X; Class I Zone I; AEx d IIB+H2 IP66; Ex d IIB+H2 IP66; T2; Ta = 0°C to 50°C
[MB/HT] - RS485 Modbus RTU & HART communications module
[CBL5] - 5-wire interconnecting cable - LENGTH = 30 FEET
[TPM0808T] - 1/2" tube x 1/2" male pipe thread, bored thru fitting with Teflon ferrule.
