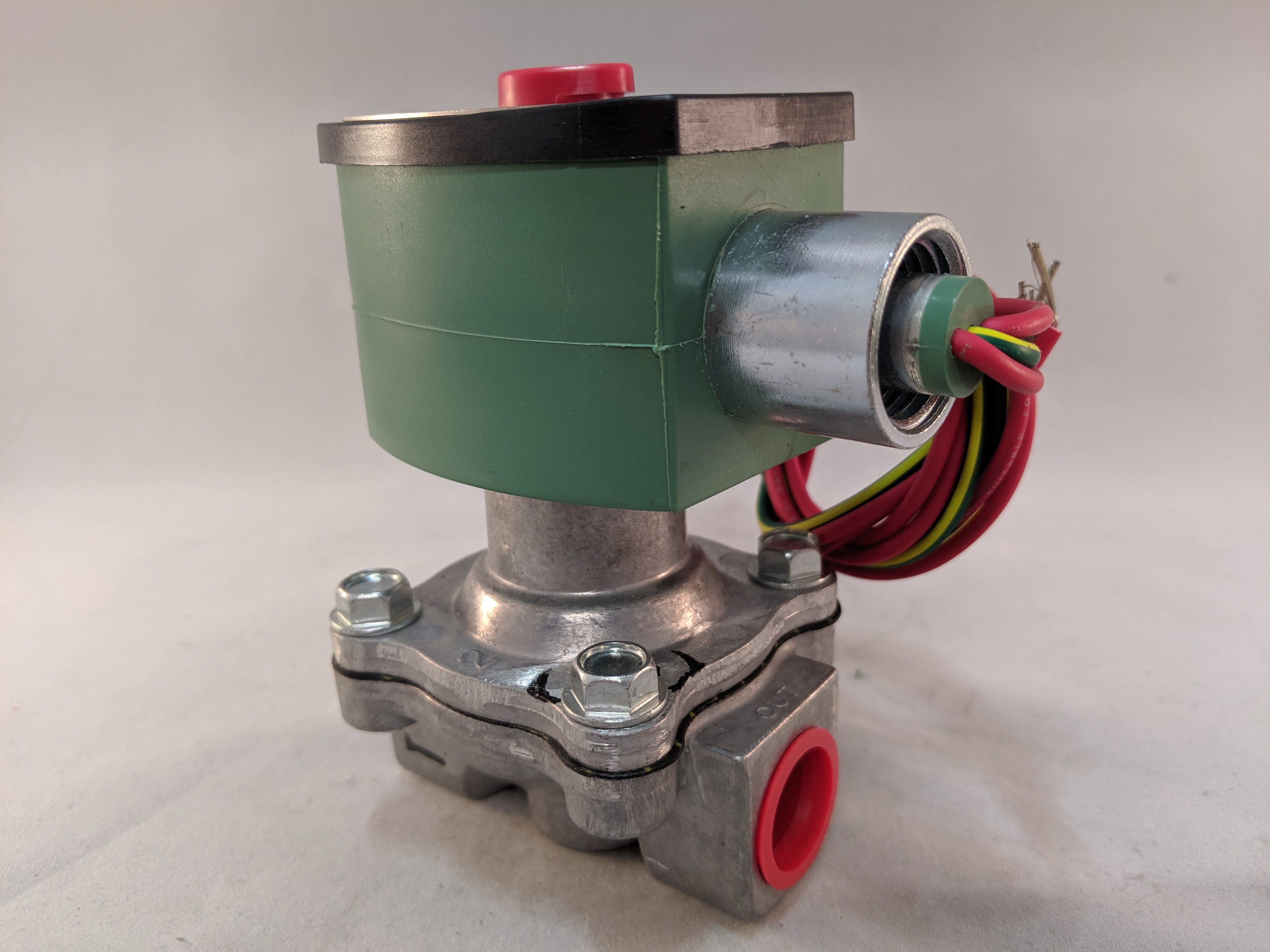

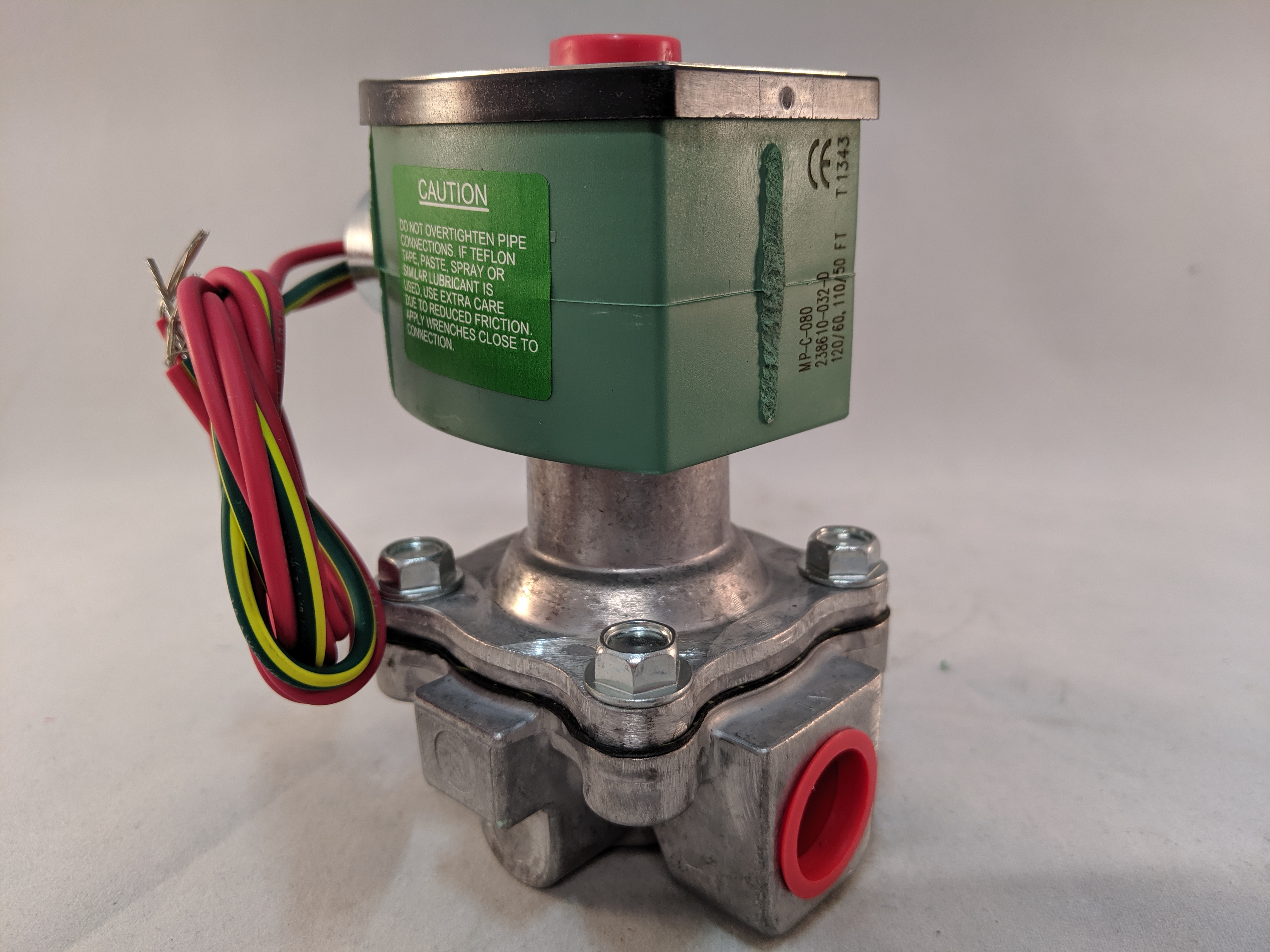

215 Series High-Flow Gas Shut-Off Solenoid Valve (8215), 1/2" NPT, 120 VAC, Aluminum, 2 Way-2/2 NO

Manufacturer: Asco LP

Mfg Product Code: 8215G023AC120/60,110/50D

Weight: 2.29 lb(s)

Solenoid Valve, 1/2" NPT, 120 VAC, 2 Way-2/2 NO

The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety Shut-Off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight Shut-Off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.

Features

• Body Material: Aluminum
• Flow (Cv) / Flow (Kv): 4.00 / 3.46
• Function: 2 way - 2/2 Normally Open
• Pipe/Port Type & Size: NPT 1/2
• Valve Actuation: Solenoid - Direct Acting
• Media: Air, Inert Gas, Fuel Gas
• Product Weight: 2.29 lbs
• Order Code: 20295
• Kit Number: 302361
• Coil Class: FT
• Coil Number: 238610-032-D
• Min to Max Ambient Temperature: 32 - 125 °F
• Min to Max Fluid Temperature: 32 - 125 °F
• Orifice Size: 3/4 in
• Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
• Watt Rating: 10.1 W
• Item Status: Active
• Lead Length: 18 inch
• Carton Note: 1/2 X 3/4 2NO AL 10.1/F AC
• Holding Current (VA): 25
• Seating Elastomer: NBR
• Mounting Direction: Any:
