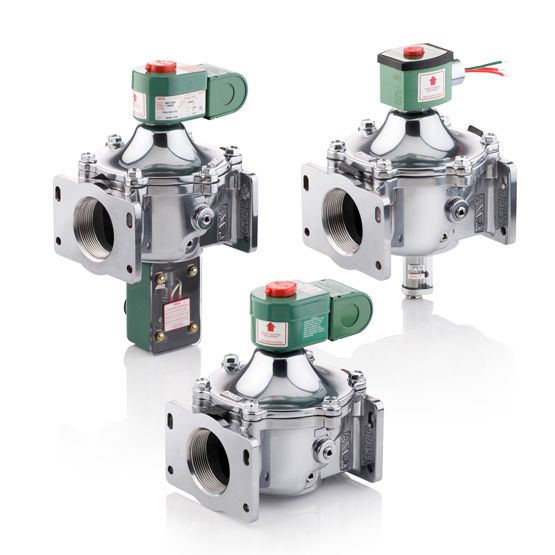

214 Series High-Flow Gas Shut-Off Solenoid Valve (8214), 1-1/2" NPT, 24 VAC, Aluminum, 2 Way-2/2 NC
Manufacturer: Asco LP
Mfg Product Code: 8214G271AC24/60D
Weight: 3.0 lb(s)
Solenoid Valve, 1-1/2" NPT, 24 VAC, 2 Way-2/2 NC
The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. A double-solenoid gas train provides an exceptionally small footprint for space constrained applications. The valves are ideal for natural gas fired boilers, furnaces, grain dryers, kilns, gas generators and commercial kitchen/cooking equipment.
Features
- Body Material: Aluminum
- Valve Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1-1/2
- Valve Actuation: Solenoid
- Voltage & Frequency: 24 AC with 60 Hz
- Kit Number: 323939
- Coil Class: FB
- Coil Number: 272614-105-D
- Watt Rating: 20.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1-1/2 X 1-5/8 2NC AL 20.1/F AC:
214 Series High-Flow Gas Shut-Off Solenoid Valve (8214), 1-1/2" NPT, 24 VAC, Aluminum, 2 Way-2/2 NC
Solenoid Valve, 1-1/2" NPT, 24 VAC, 2 Way-2/2 NC
Valve: Actuation:Solenoid
Brand_Name:Asco
Orifice Size:1-5/8 in
Process Connection Type:NPT
Max Operating Temperature:125 °F
Process Connection Size:1-1/2"
Wetted Material:Stainless Steel
Input Voltage:24 VAC
Watts:20.1
Function:2 Way 2/2 Normally Closed, 2 Way 2/2 Normally Closed
Coil Class:FB
Frequency:60 Hz
Body Material:Aluminum
Lead Length:18 in
Seal Material:NBR
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Solenoid |
| Uncategorized | |
|---|---|
| Brand_Name | Asco |
| Orifice Size | 1-5/8 in |
| Process Connection Type | NPT |
| Max Operating Temperature | 125 °F |
| Process Connection Size | 1-1/2" |
| Wetted Material | Stainless Steel |
| Input Voltage | 24 VAC |
| Watts | 20.1 |
| Function | 2 Way 2/2 Normally Closed, 2 Way 2/2 Normally Closed |
| Coil Class | FB |
| Frequency | 60 Hz |
| Body Material | Aluminum |
| Lead Length | 18 in |
| Seal Material | NBR |
