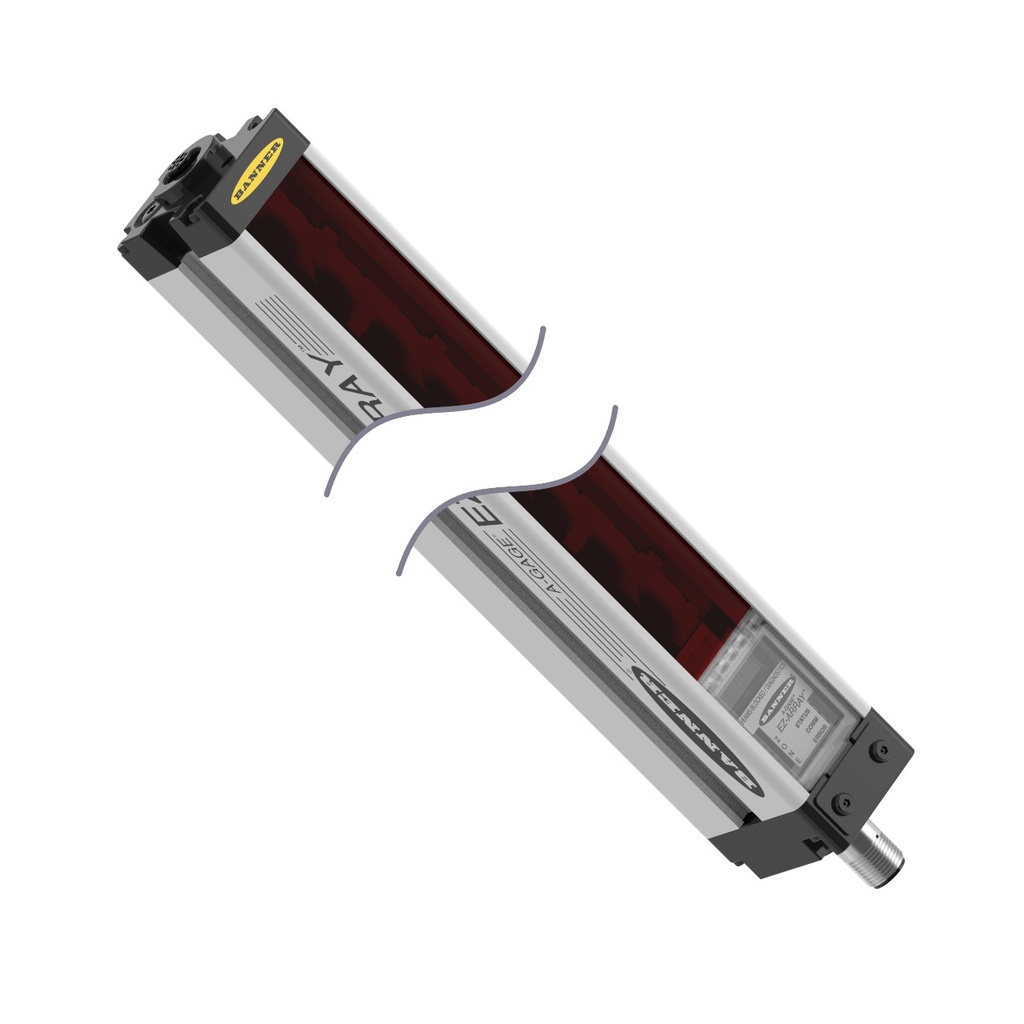

EZ-ARRAY Short Range Low Contrast Receiver:1200 mm (EA5R1200PIXMODSRLCQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 82131
Weight: 9.0 lb(s)
On Hand: 0
EZ-ARRAY Short Range Low Contrast Receiver:1200 mm
Features:
- EZ-ARRAY Short Range Low Contrast Receiver:1200 mm
- Range 30-1500 mm
- Input 12-30 V dc
- Output 2 PNP Discrete
- Output 2 4 -20mA Analog
- EIA-485
- Euro 8-pin and 5-pin QD
EZ-ARRAY Short Range Low Contrast Receiver:1200 mm (EA5R1200PIXMODSRLCQ)
EZ-ARRAY Short Range Low Contrast Receiver:1200 mm
Feature: Discrete Outputs:PNP
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Power Supply:12-30 VDC
Measurement Minimum:0
Sensing Mode (Detailed):Receiver
Beam Spacing:5 mm
Device Type:Two-Piece
Housing Length:1278 mm
Max Relative Humidity:95%
Number of Beams:240
Housing Material_:Aluminum
Feature: RS-485:Yes
Analog Output:4 to 20 mA
Feature: Modbus RTU:Yes
Array Length:1200 mm
Quick Disconnect Type:M12
Discrete Outputs:PNP
Country of Origin:MX
Emitter/Receiver Range:0.3 to 1.5 m
Feature: Low Contrast:Yes
Feature: Short Range:Yes
Specifications
| Feature: Discrete Outputs | PNP |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Power Supply | 12-30 VDC |
| Measurement Minimum | 0 |
| Sensing Mode (Detailed) | Receiver |
| Beam Spacing | 5 mm |
| Device Type | Two-Piece |
| Housing Length | 1278 mm |
| Max Relative Humidity | 95% |
| Number of Beams | 240 |
| Housing Material_ | Aluminum |
| Feature: RS-485 | Yes |
| Analog Output | 4 to 20 mA |
| Feature: Modbus RTU | Yes |
| Array Length | 1200 mm |
| Quick Disconnect Type | M12 |
| Discrete Outputs | PNP |
| Country of Origin | MX |
| Emitter/Receiver Range | 0.3 to 1.5 m |
| Feature: Low Contrast | Yes |
| Feature: Short Range | Yes |
