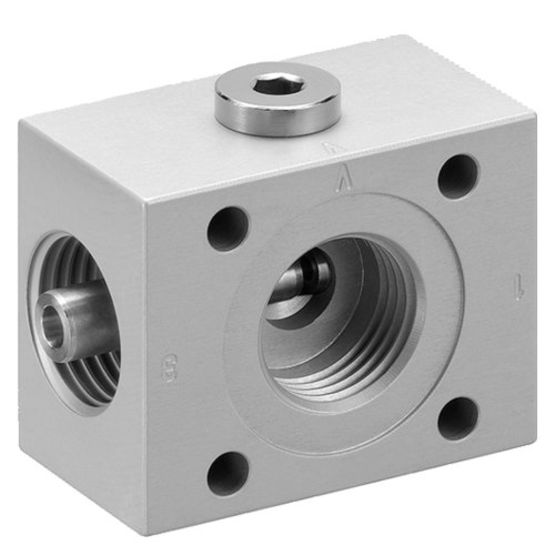

AVENTICS CH02 Series Throttle Valve, G 3/8 External Thread, Throttle Valve w/Silencer

Manufacturer: Asco LP

Mfg Product Code: 821201104

Weight: 0.14 lb(s)

Ejector, Aluminum, 0.5 mm Brass Nozzle

AVENTICS EBP Series are simple stage vacuum ejectors pneumatically controlled. EBE vacuum ejectors are robust, compact, easy to install and with a low sound level.

Features

• Activation: Pneumatically
• Nozzle Ø: 0.5 mm
• Working pressure min.: 2 bar
• Working pressure max: 6 bar
• Min. ambient temperature: 0 °C
• Max. ambient temperature: 50 °C
• Min. medium temperature: 0 °C
• Max. medium temperature: 60 °C
• Medium: Compressed air
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 1 mg/m³
• Max. particle size: 5 µm
• Max. suction capacity: 6.4 l/min
• Air consumption at p.opt.: 15.5 l/min
• Max. vacuum level at p.opt: 82 %
• Weight: 0.06 kg
• Housing material: Aluminum
• Seal material: Acrylonitrile butadiene rubber
• Nozzle material: Brass:
