Representative photo. Please check item description for details.
AVENTICS CH02 Series Throttle Valve, M5 External Thread, Throttle Valve w/Silencer
Manufacturer: Asco LP
Mfg Product Code: 821201101
Weight: 2.0 lb(s)
On Hand: 0

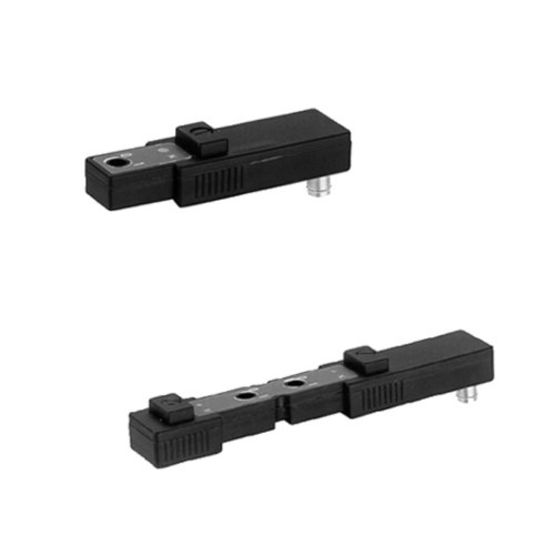

Contact Bridge, 2 Coils, 24 VDC, 4-Pin Plug to 2-Pin Plug to 2-Pin Sckt
The AVENTICS Series CON-CB offers contact bridges which offers additional electrical connection types for Series CD01-PA, 579/589 as well as for other Form C coils. With the contact bridge it is possible to change Form C connection to SNAP D8 or M12.
Features
- Number of solenoid coils: 2
- Min. ambient temperature: -15 °C
- Max. ambient temperature: 50 °C
- Protection class: IP65
- Electrical connection 1: Plug
- Number of poles: 4-pin
- Cable exit: straight
- Cable exit angle: 180°
- Electrical connection 2: Socket
- Electrical connection 2: form C
- Number of poles: 2-pin
- Cable exit: straight
- Electrical connection 3: Socket
- Electrical connection 3: form C
- Number of poles: 2-pin
- Cable exit: straight
- Operational↩voltage: 24 V
- Operational↩voltage: AC/DC
- DC operating voltage: 24 V
- Operational voltage AC at 50 Hz: 24 V
- Operational voltage AC at 60 Hz: 24 V
- Voltage tolerance DC: -20% / +20%
- Voltage tolerance AC 50 Hz: -10% / +10%
- Voltage tolerance AC 60 Hz: -10% / +10%
- Valve LED status display: Yellow:
